Pinpoint Test K: The Power Seat Does Not Move Vertically - Passengers Seat, Rear Height

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

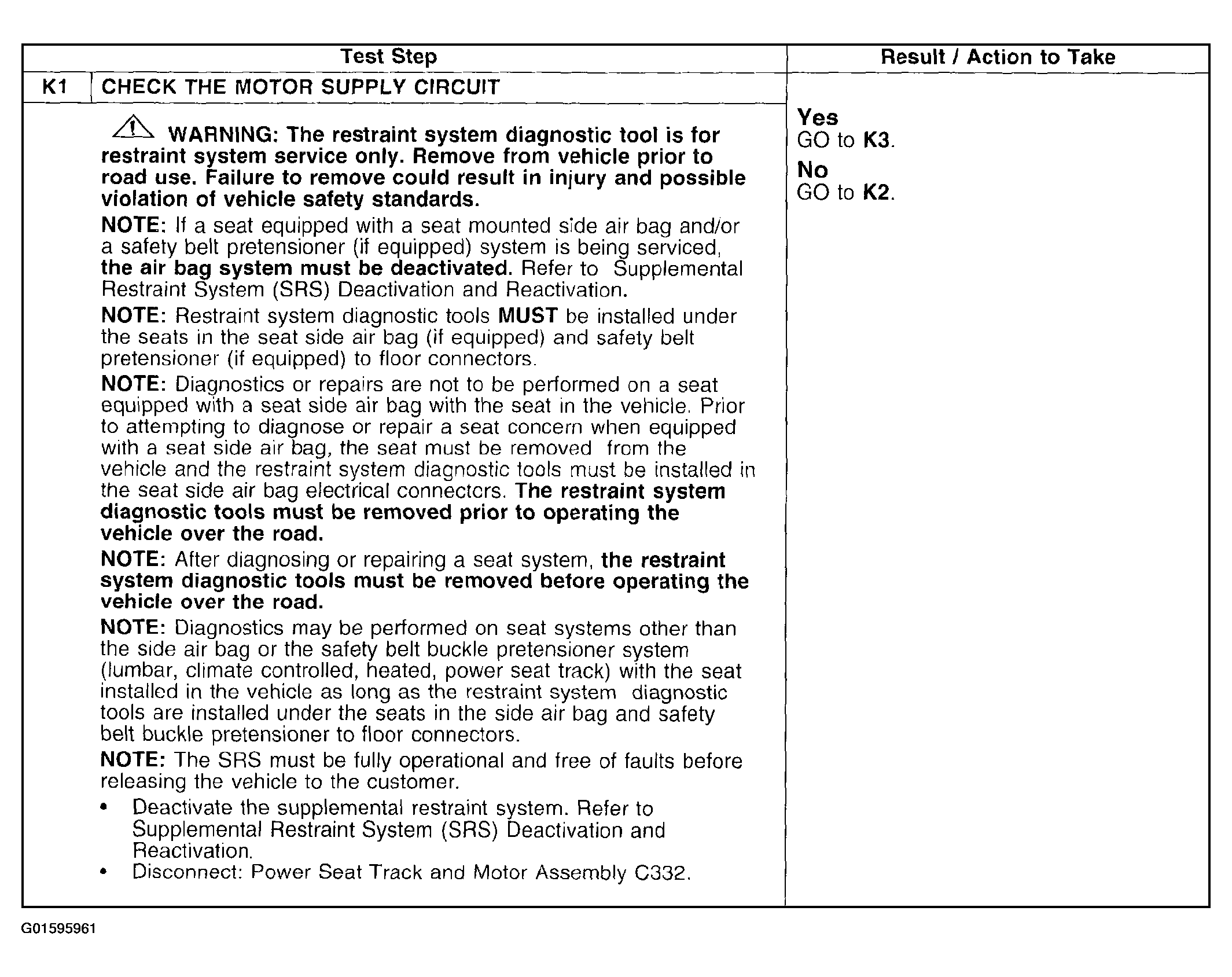

Fig 1: Pinpoint Test K: The Power Seat Does Not Move Vertically - Passengers Seat, Rear Height (Steps K1)

Courtesy of FORD MOTOR CO.

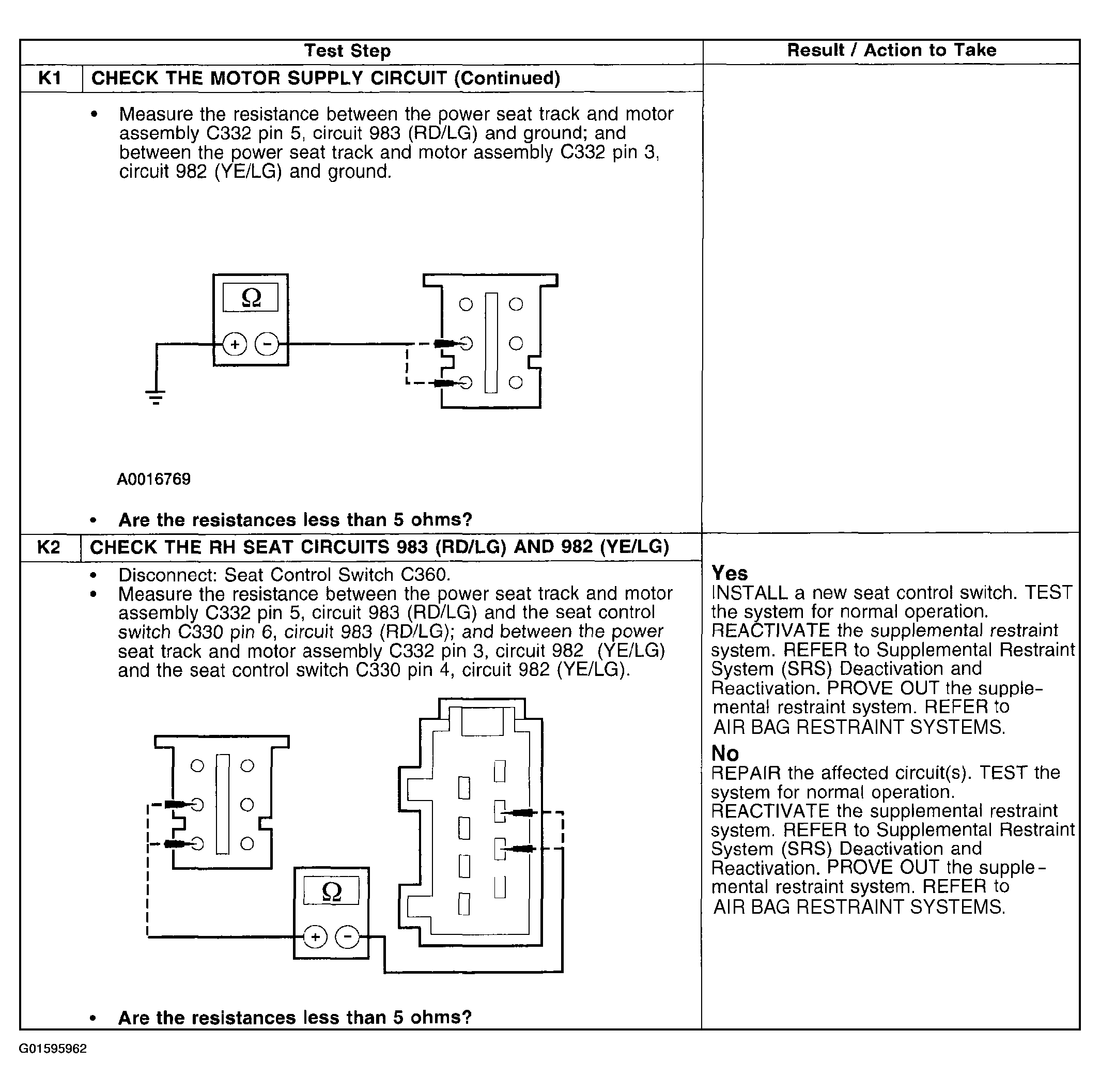

Fig 2: Pinpoint Test K: The Power Seat Does Not Move Vertically - Passengers Seat, Rear Height (Steps K1 Continued-K2)

Courtesy of FORD MOTOR CO.

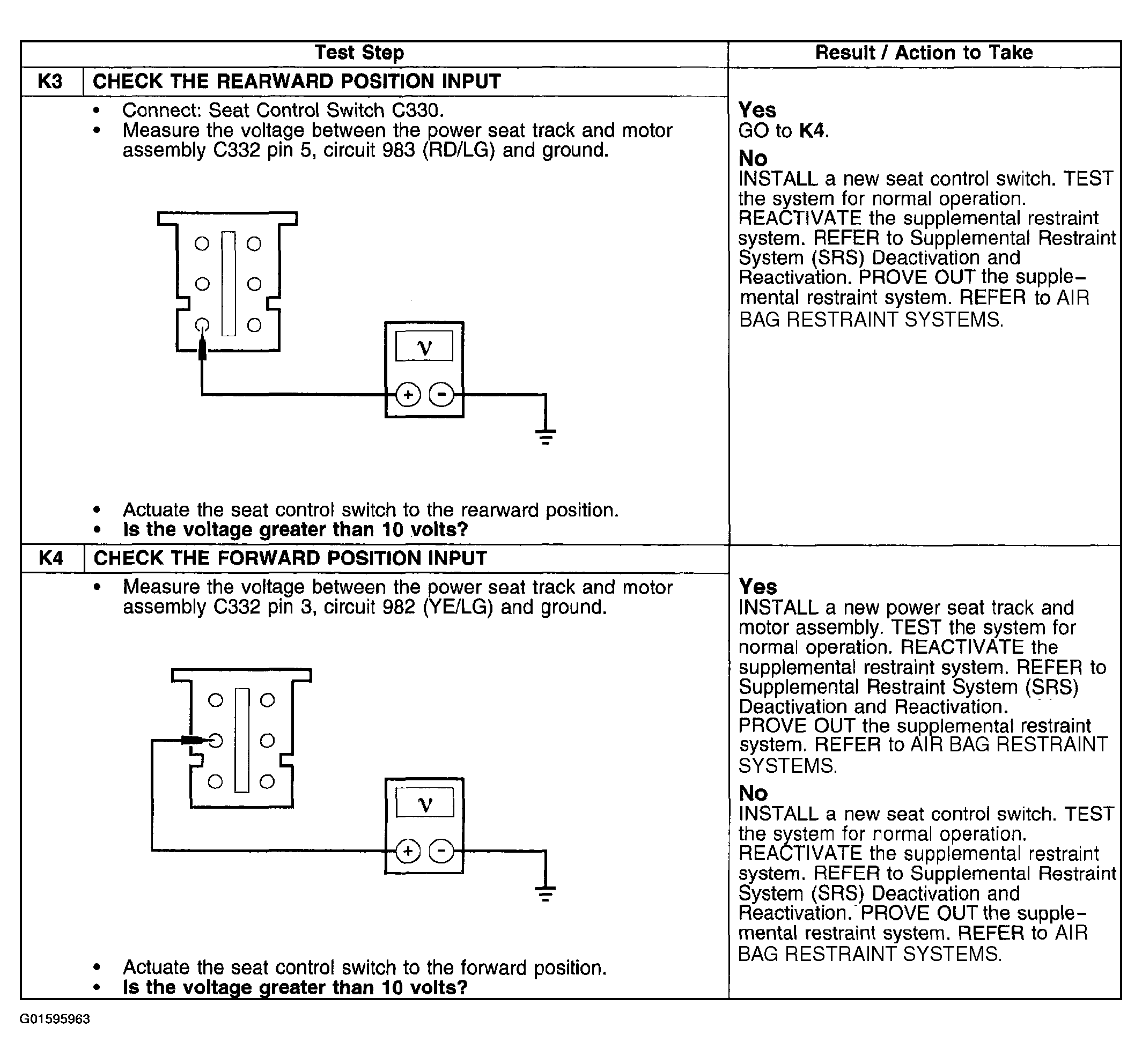

Fig 3: Pinpoint Test K: The Power Seat Does Not Move Vertically - Passengers Seat, Rear Height (Steps K3-K4)

Courtesy of FORD MOTOR CO.
