Pinpoint Test I: The Power Seat Does Not Move Vertically - Passengers Seat, Front Height

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

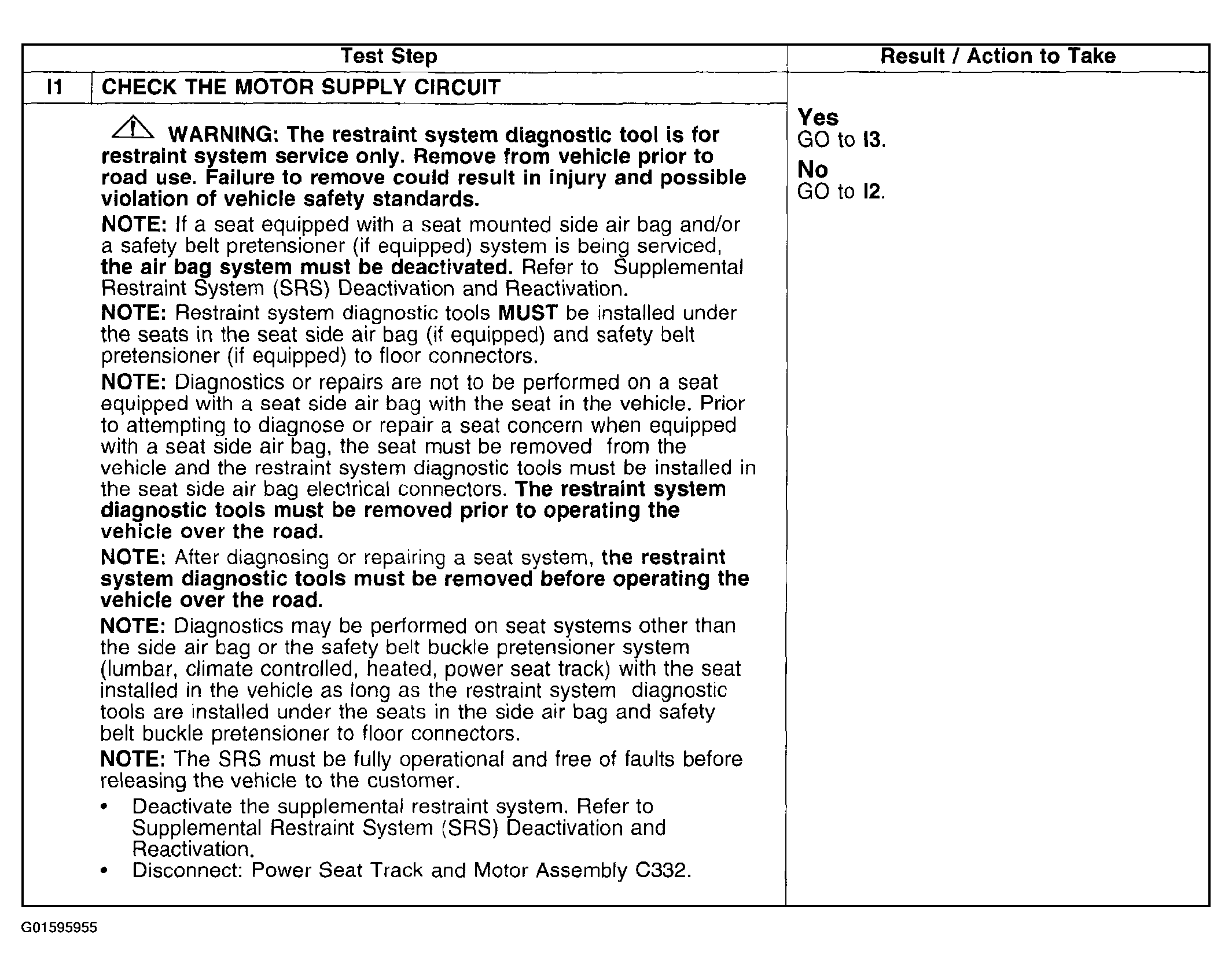

Fig 1: Pinpoint Test I: Power Seat Does Not Move Vertically - Passengers Seat, Front Height (Steps I1)

Courtesy of FORD MOTOR CO.

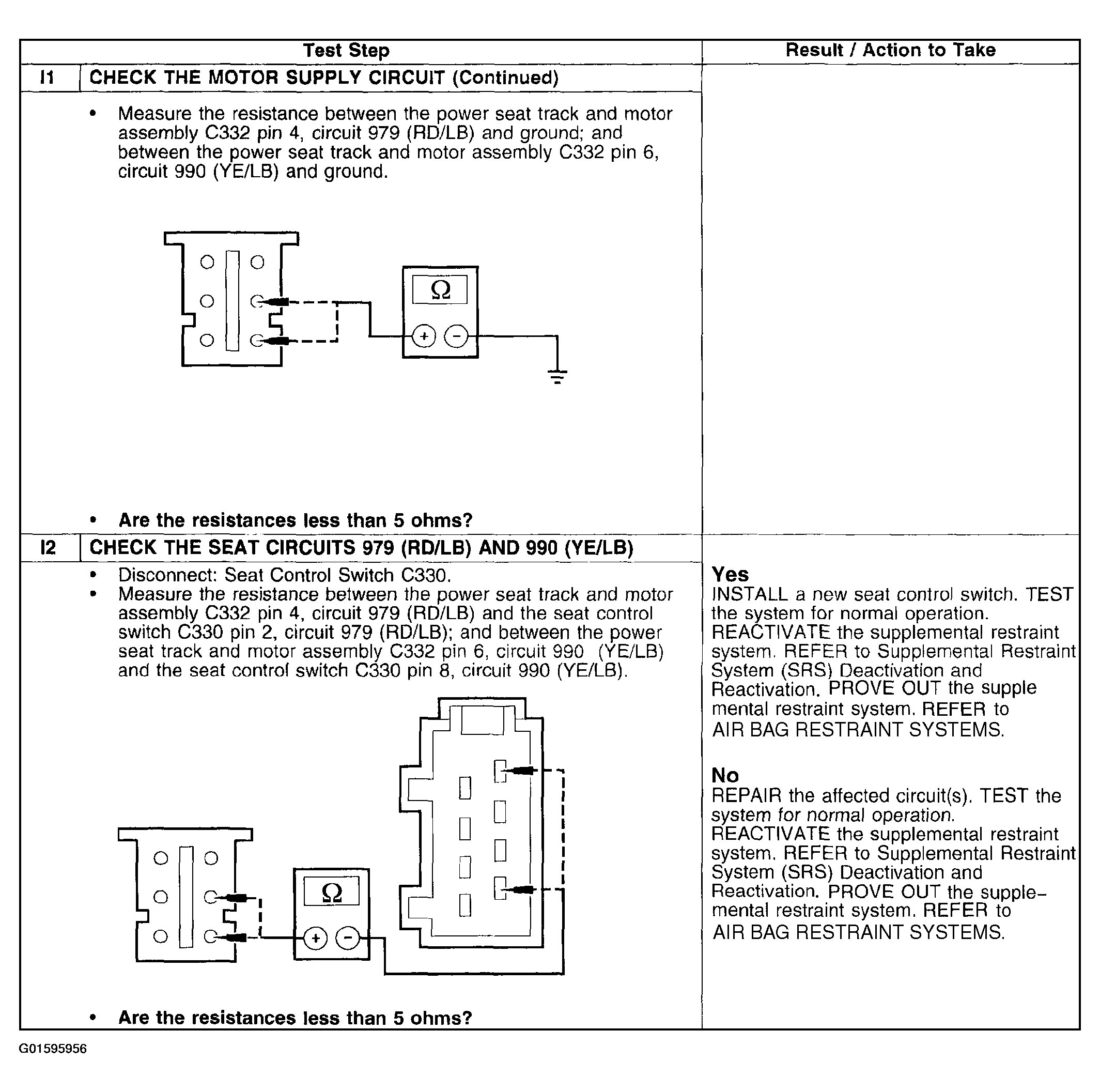

Fig 2: Pinpoint Test I: Power Seat Does Not Move Vertically - Passengers Seat, Front Height (Steps I1 Continued-I2)

Courtesy of FORD MOTOR CO.

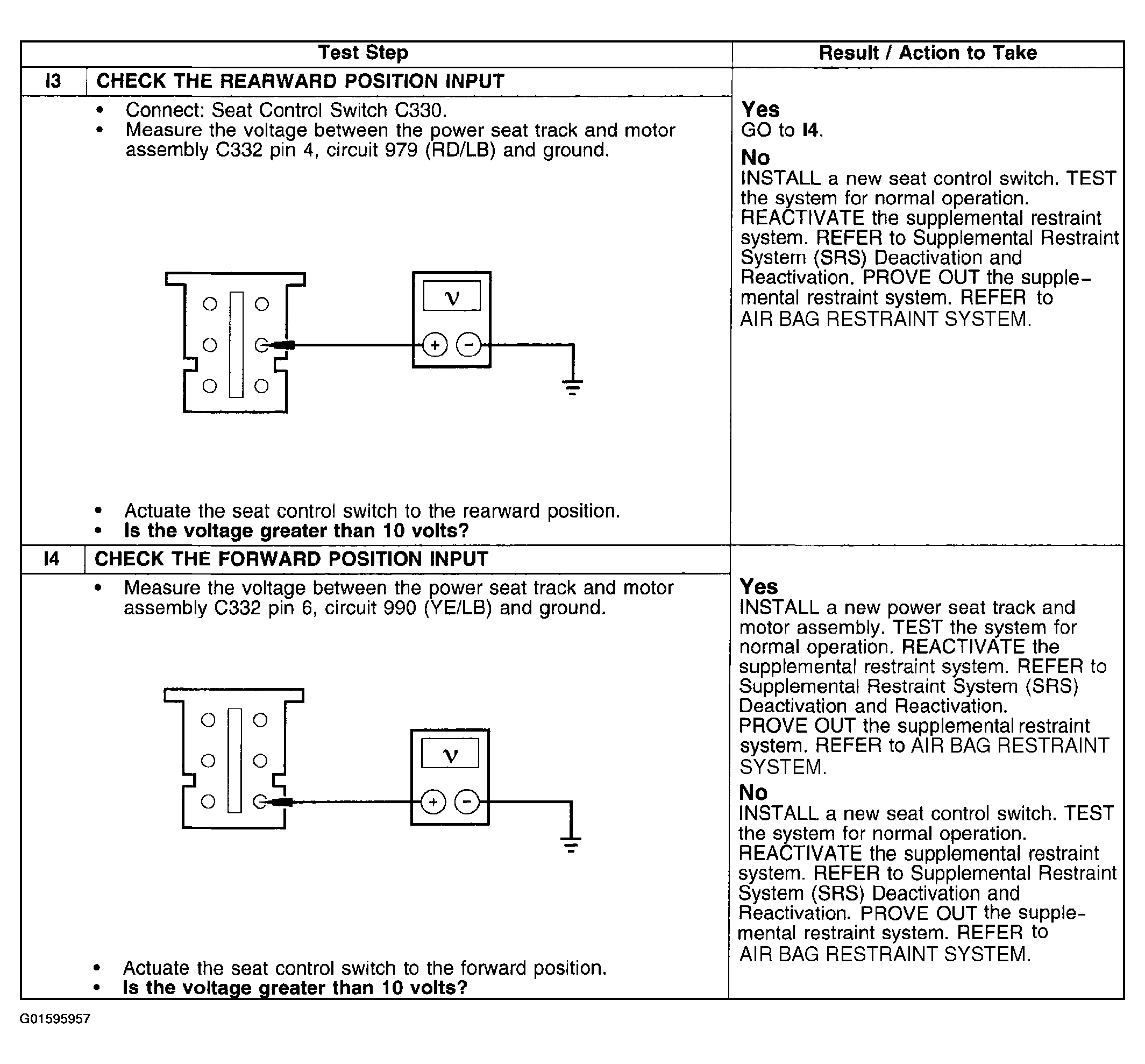

Fig 3: Pinpoint Test I: Power Seat Does Not Move Vertically - Passengers Seat, Front Height (Steps I3-I4)

Courtesy of FORD MOTOR CO.
