Pinpoint Test H: The Power Seat Does Not Move Horizontally - Drivers Seat, Front Height

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

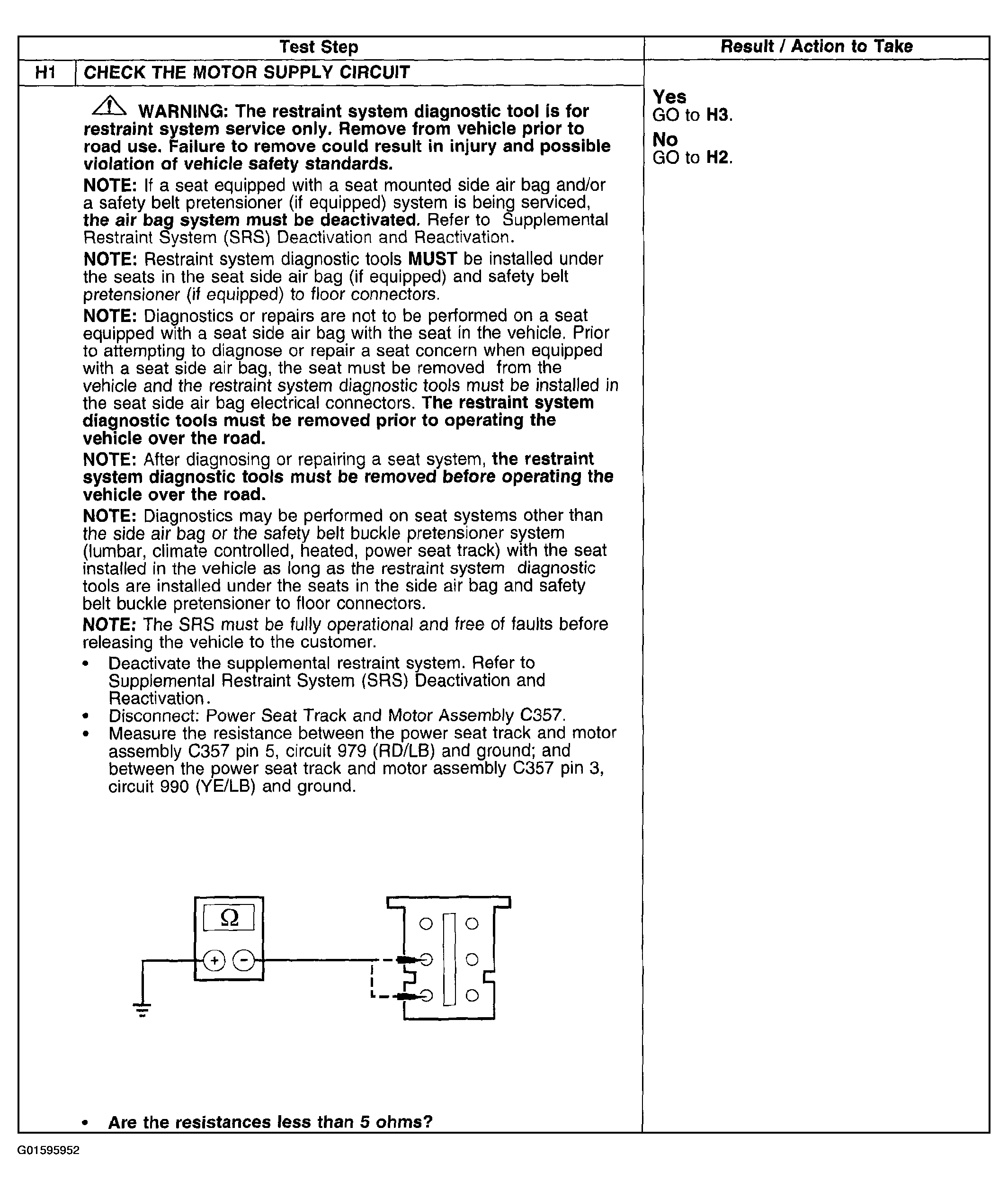

Fig 1: Pinpoint Test H: Power Seat Does Not Move Horizontally - Drivers Seat, Front Height (Steps H1)
G01595952Courtesy of FORD MOTOR CO.

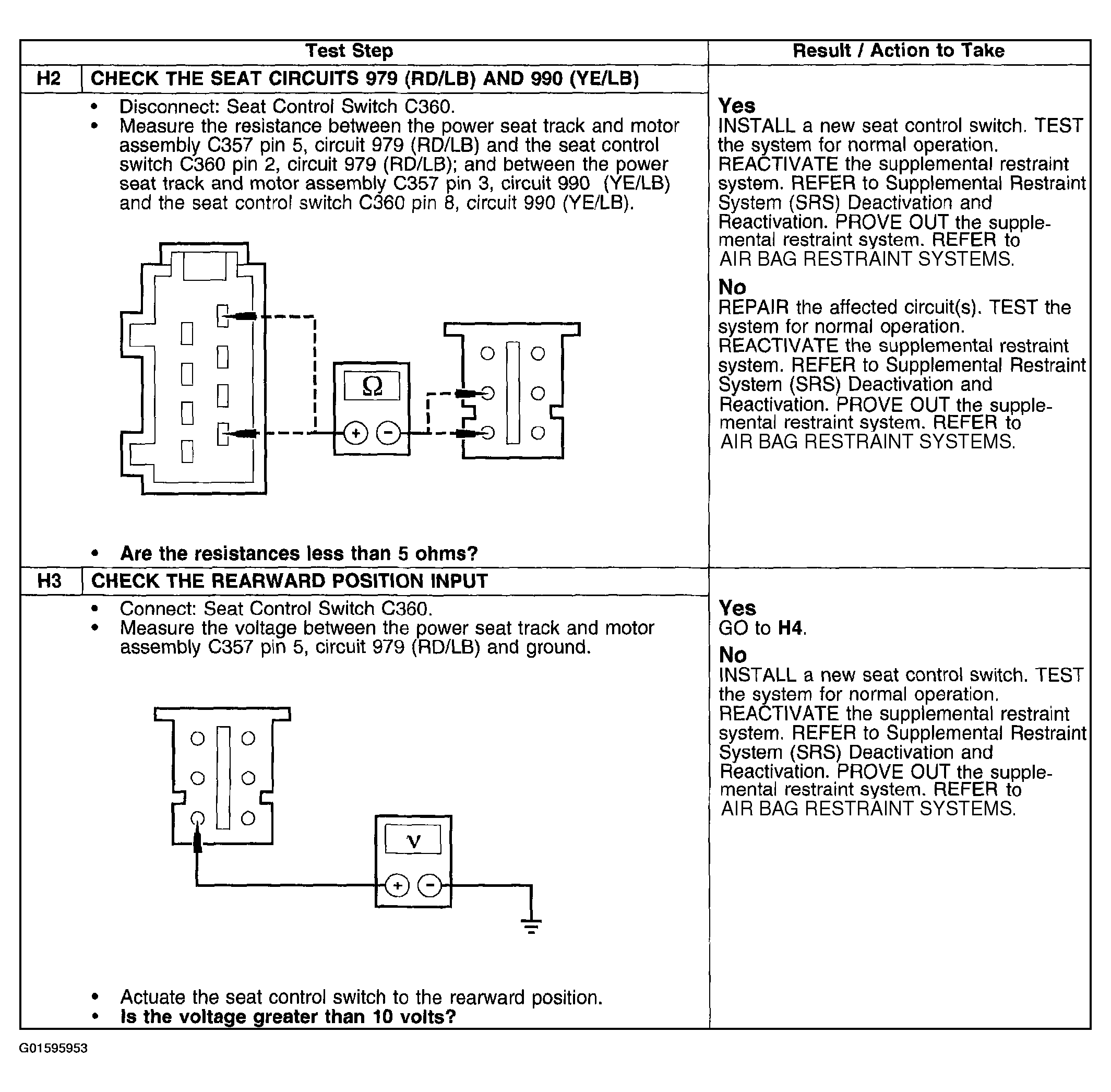

Fig 2: Pinpoint Test H: Power Seat Does Not Move Horizontally - Drivers Seat, Front Height (Steps H2-H3)
G01595953Courtesy of FORD MOTOR CO.

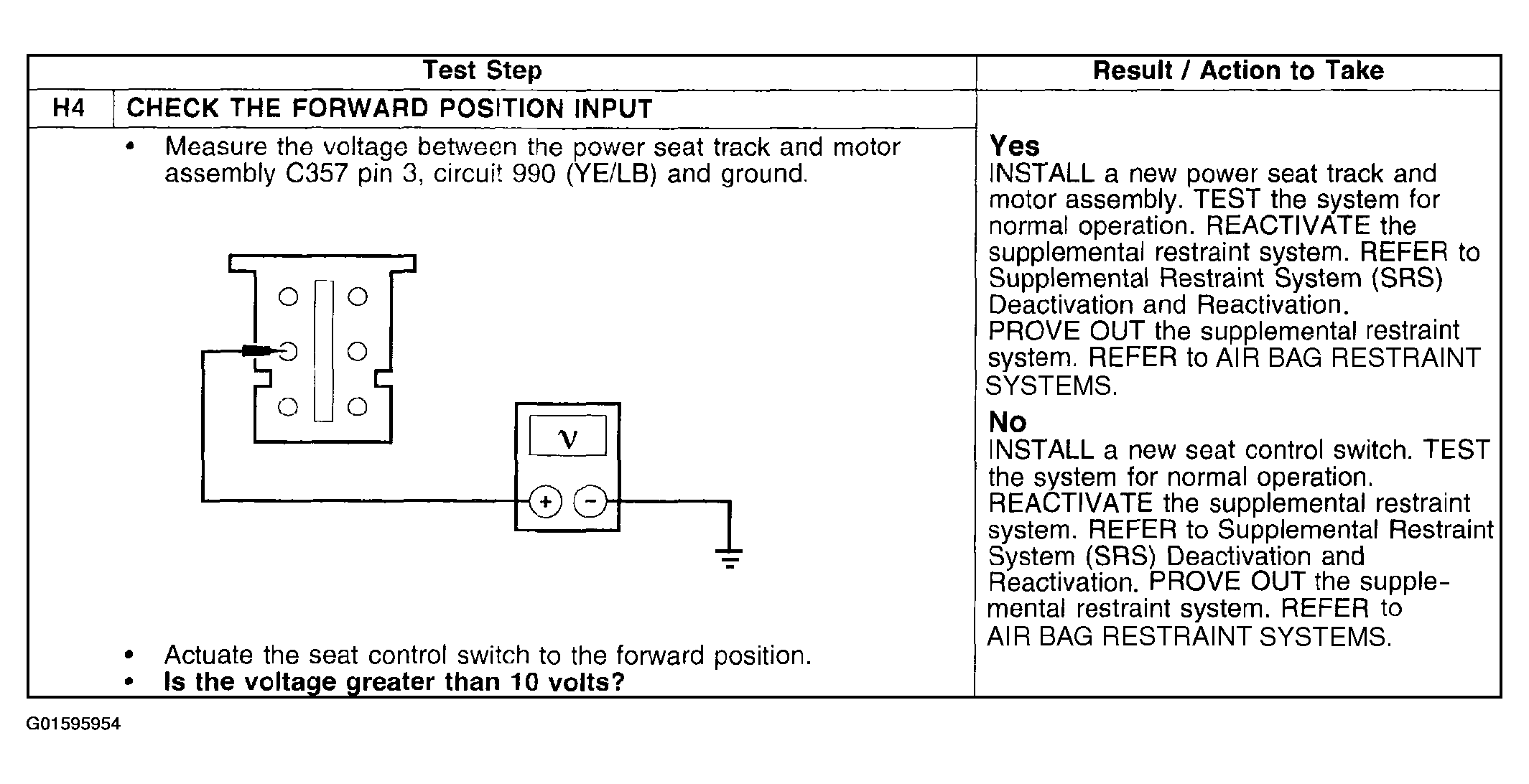

Fig 3: Pinpoint Test H: Power Seat Does Not Move Horizontally - Drivers Seat, Front Height (Steps H4)
G01595954Courtesy of FORD MOTOR CO.
