Pinpoint Test G: The Power Seat Does Not Move Horizontally - Passengers Seat

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

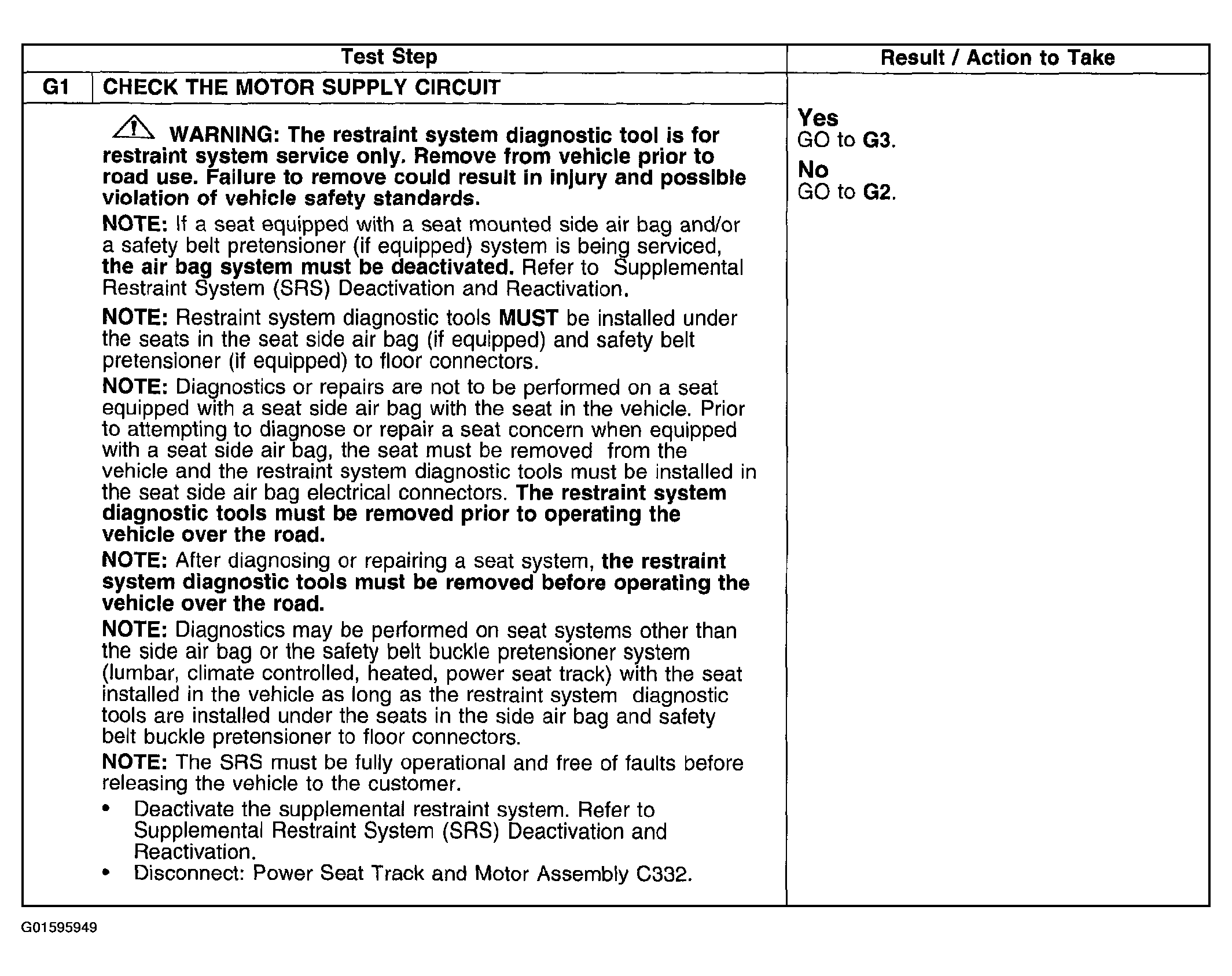

Fig 1: Pinpoint Test G: Power Seat Does Not Move Horizontally - Passengers Seat (Steps G1)

Courtesy of FORD MOTOR CO.

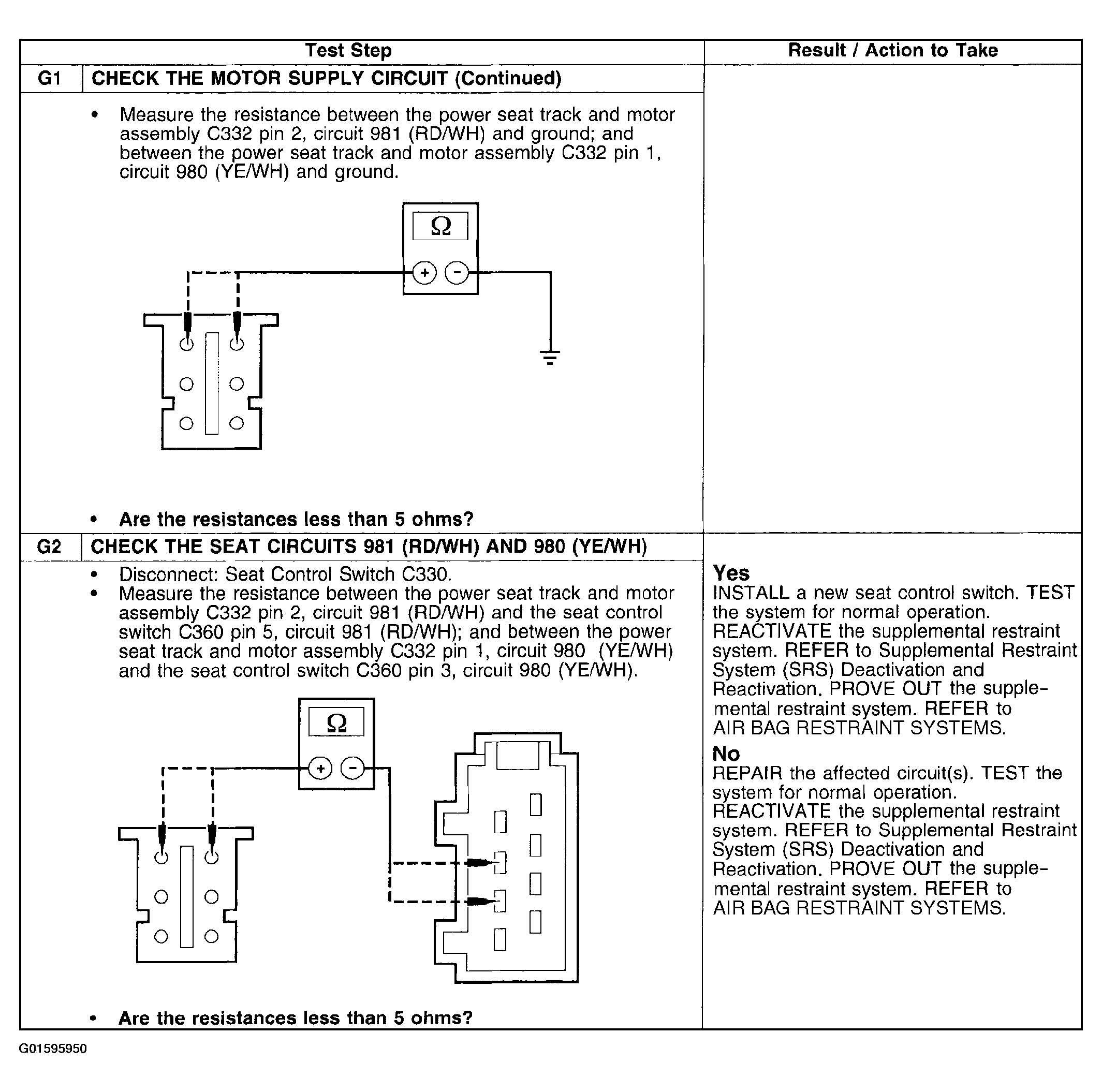

Fig 2: Pinpoint Test G: Power Seat Does Not Move Horizontally - Passengers Seat (Steps G1 Continued-G2)

Courtesy of FORD MOTOR CO.

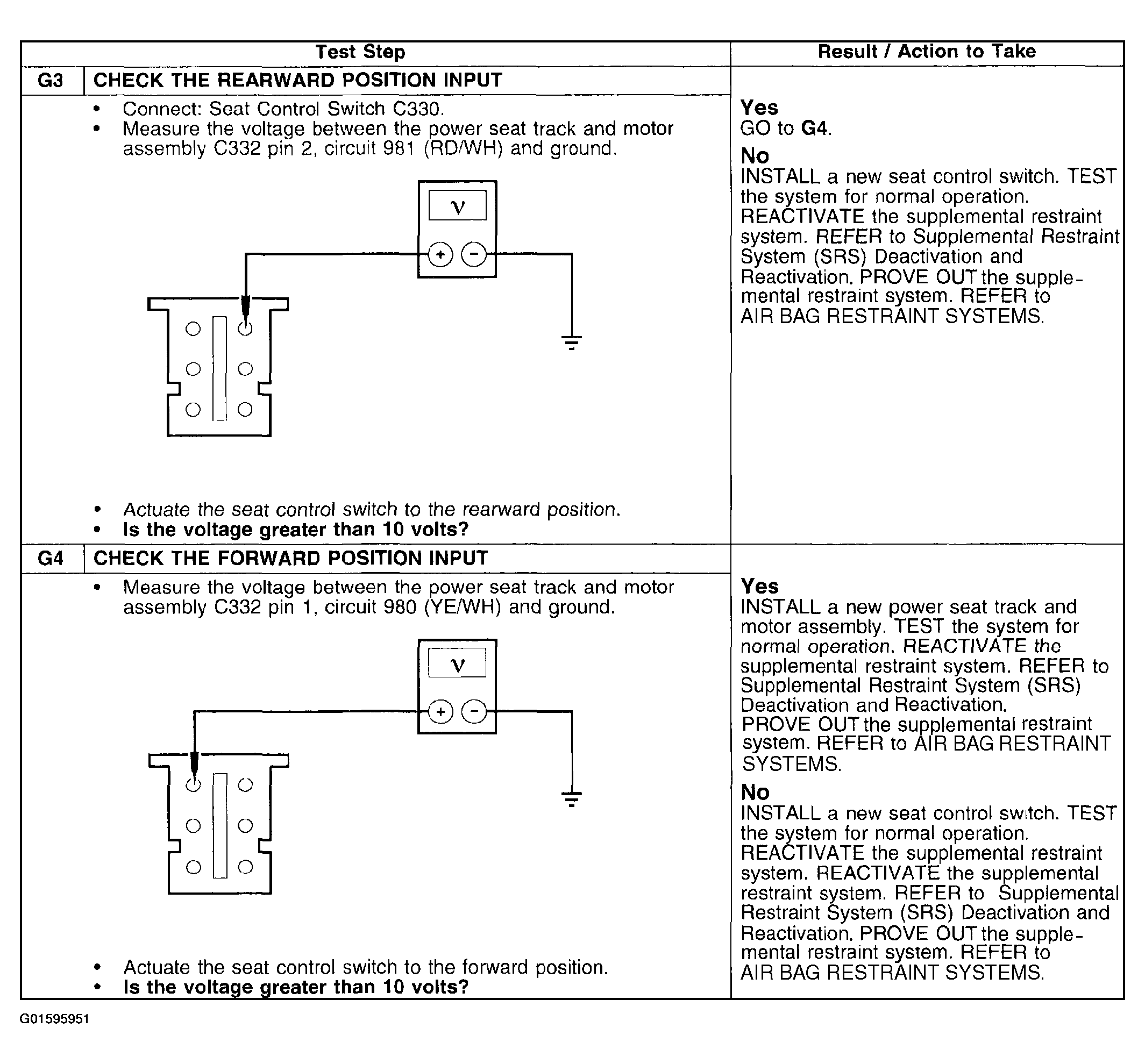

Fig 3: Pinpoint Test G: Power Seat Does Not Move Horizontally - Passengers Seat (Steps G3-G4)

Courtesy of FORD MOTOR CO.
