Pinpoint Test F: The Power Seat Does Not Move Horizontally - Drivers Seat
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

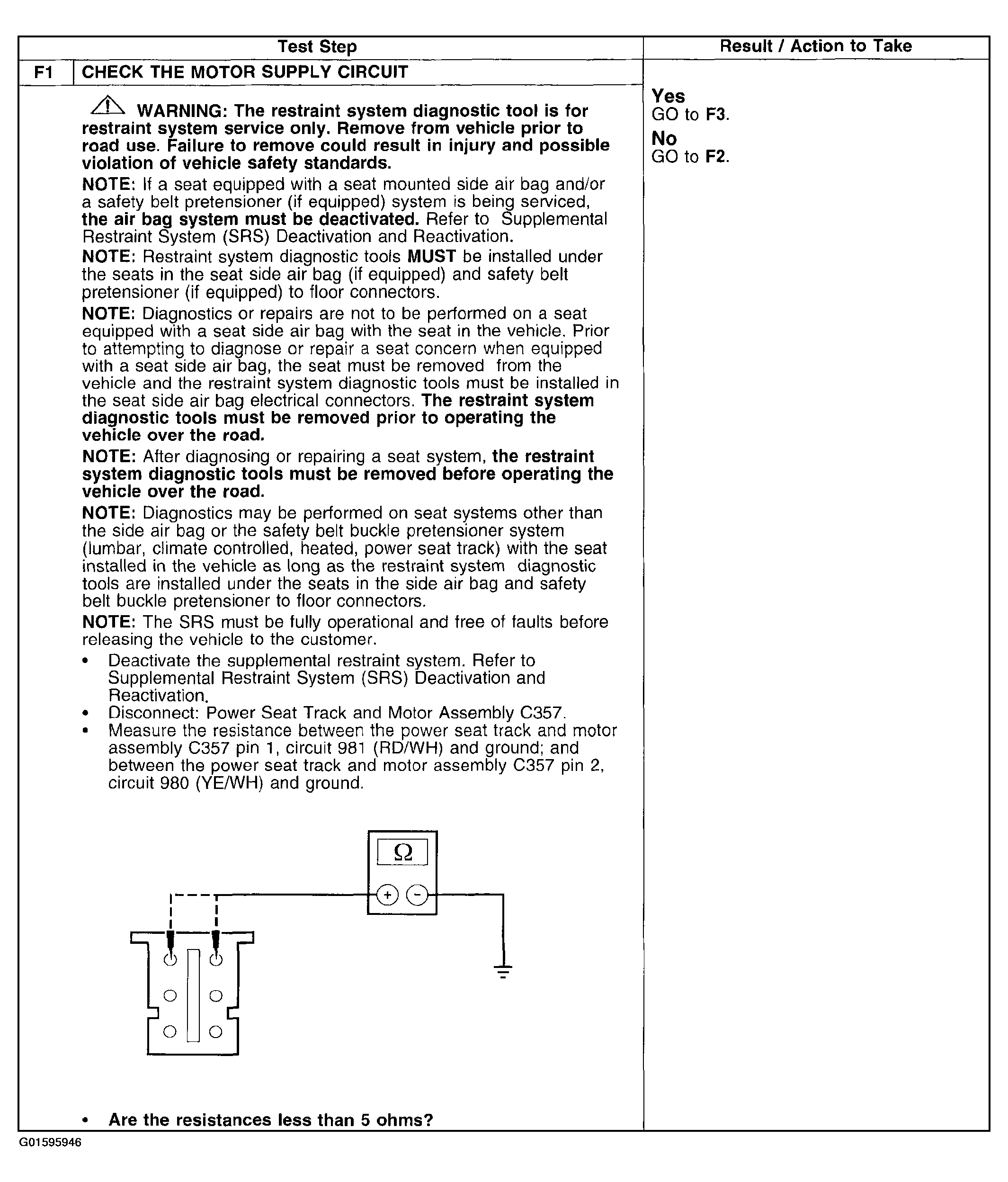

Fig 1: Pinpoint Test F: Power Seat Does Not Move Horizontally - Drivers Seat (Steps F1)
Courtesy of FORD MOTOR CO.

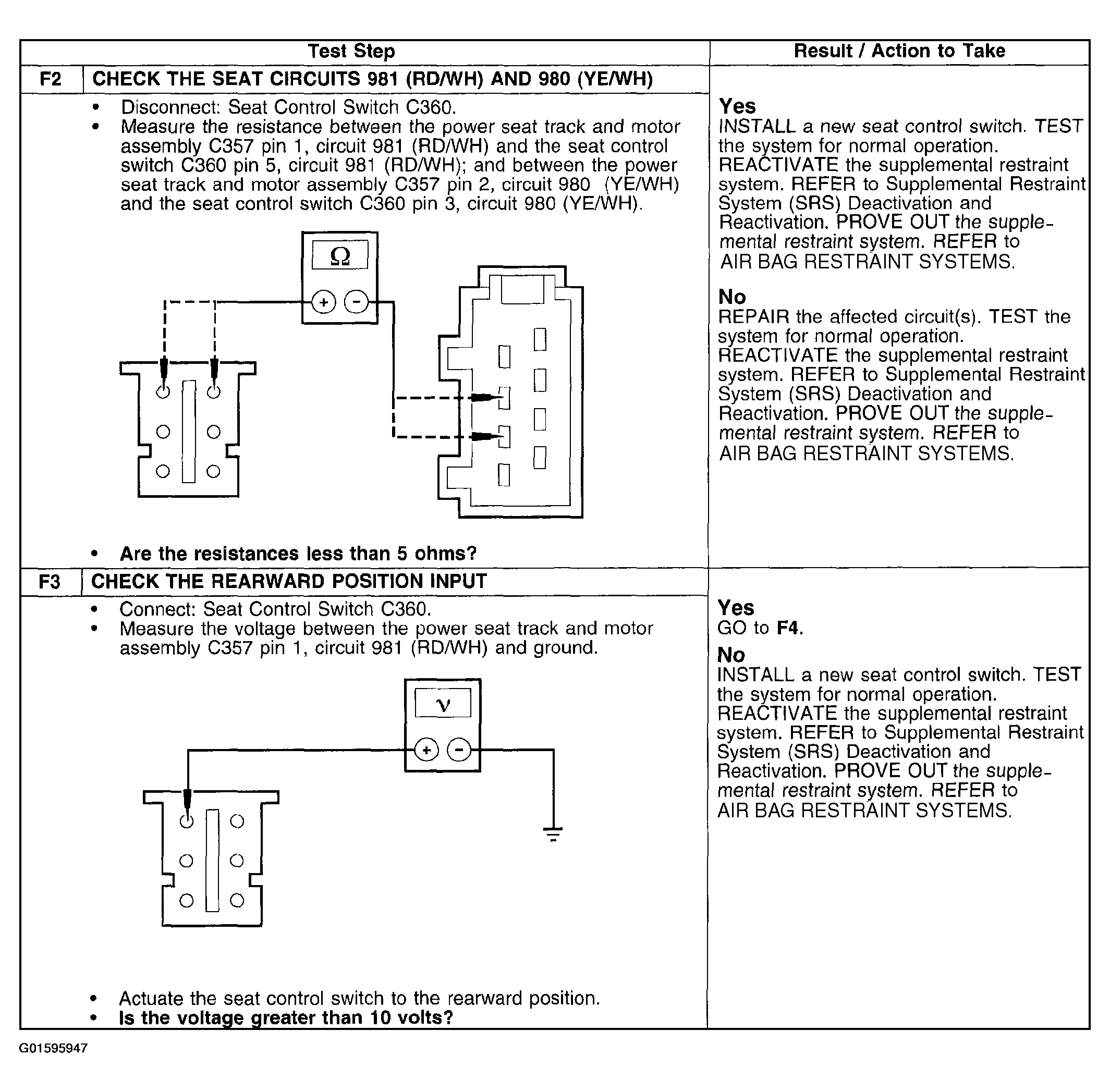

Fig 2: Pinpoint Test F: Power Seat Does Not Move Horizontally - Drivers Seat (Steps F2-F3)
Courtesy of FORD MOTOR CO.
Fig 3: Pinpoint Test F: Power Seat Does Not Move Horizontally - Drivers Seat (Steps F5)
