Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the reversing lamp assembly. For additional information, refer to EXTERIOR LIGHTING .
  3. Disconnect the liftgate actuator electrical connector.
    1. Release the wiring harness locator.
    2. Disconnect the electrical connector.

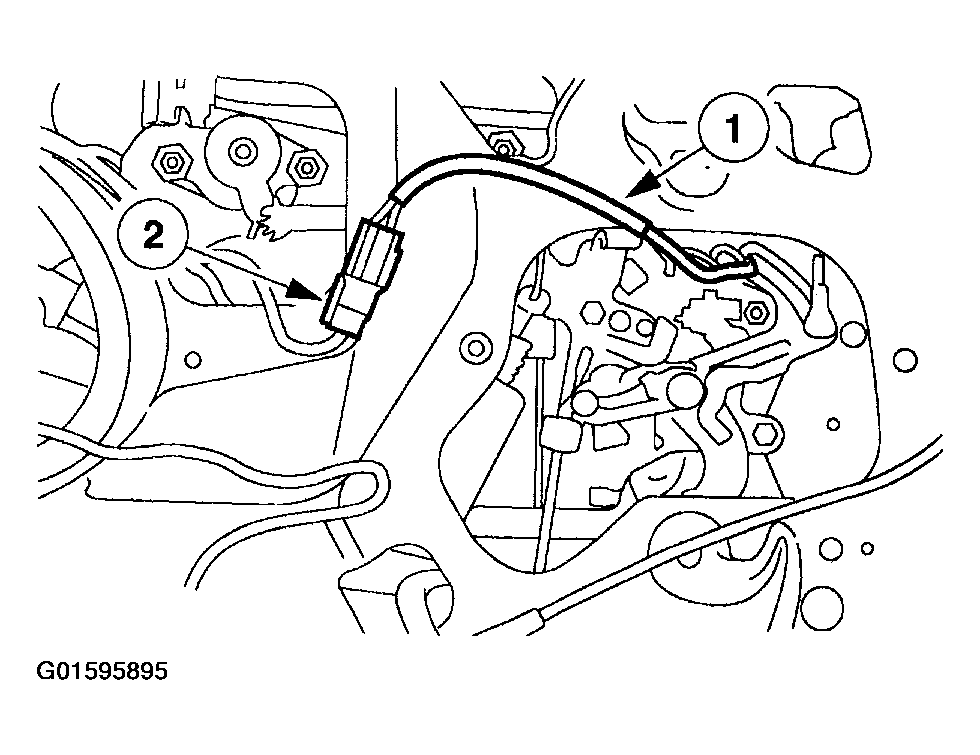

    Fig 1: Disconnecting Liftgate Actuator Electrical Connector
    G01595894Courtesy of FORD MOTOR CO.
  4. Disconnect the liftgate latch actuating rod.

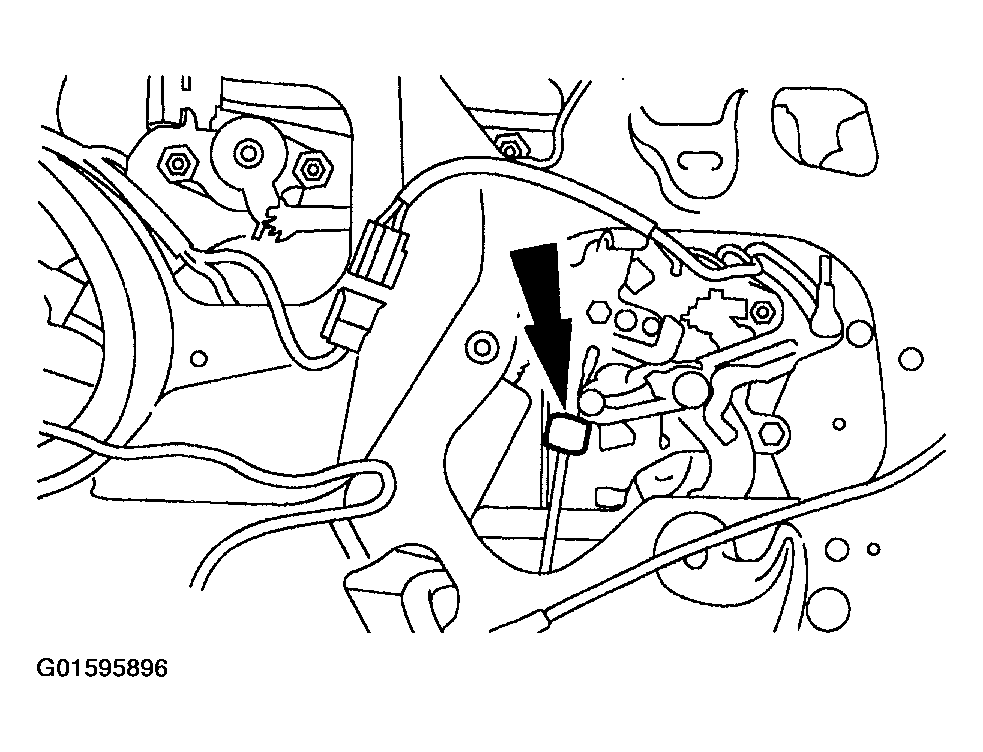

    Fig 2: Disconnecting Liftgate Latch Actuating Rod
    G01595895Courtesy of FORD MOTOR CO.
  5. Remove the nuts and the license plate housing.
    Fig 3: Removing Nuts And License Plate Housing
    G01595896Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
