Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

LH and RH

Remove the rear seat cushion.
Fold down the second row seat backrest.
Remove the rear seat bolster bolt.

Fig 1: Removing Rear Seat Bolster Bolt
Courtesy of FORD MOTOR CO.
Position the lower B-pillar aside.

Fig 2: Positioning Lower B-Pillar Aside
Courtesy of FORD MOTOR CO.
If equipped, remove the cargo cover.
LH Only
Remove the spare tire cover.
Remove the quarter trim panel screw.

Fig 3: Removing Quarter Trim Panel Screw
Courtesy of FORD MOTOR CO.

LH and RH

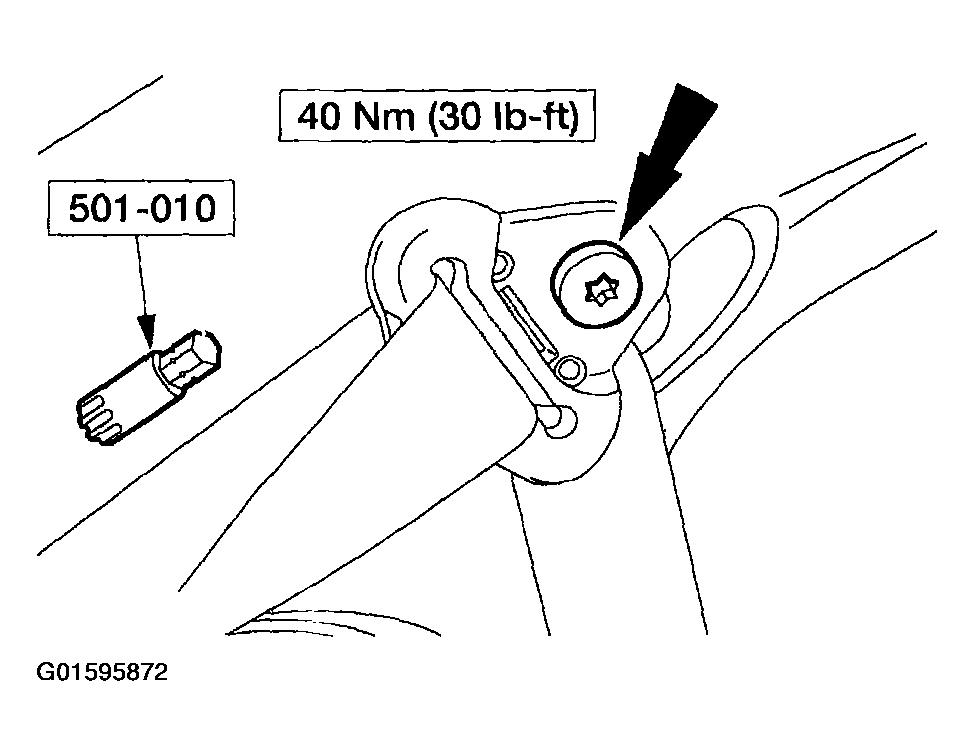

Using the special tool, remove the auxiliary seat safety belt D-ring cover and bolt.

Fig 4: Removing Auxiliary Seat Safety Belt D-Ring Cover And Bolt
Courtesy of FORD MOTOR CO.
Position the quarter trim panel aside.

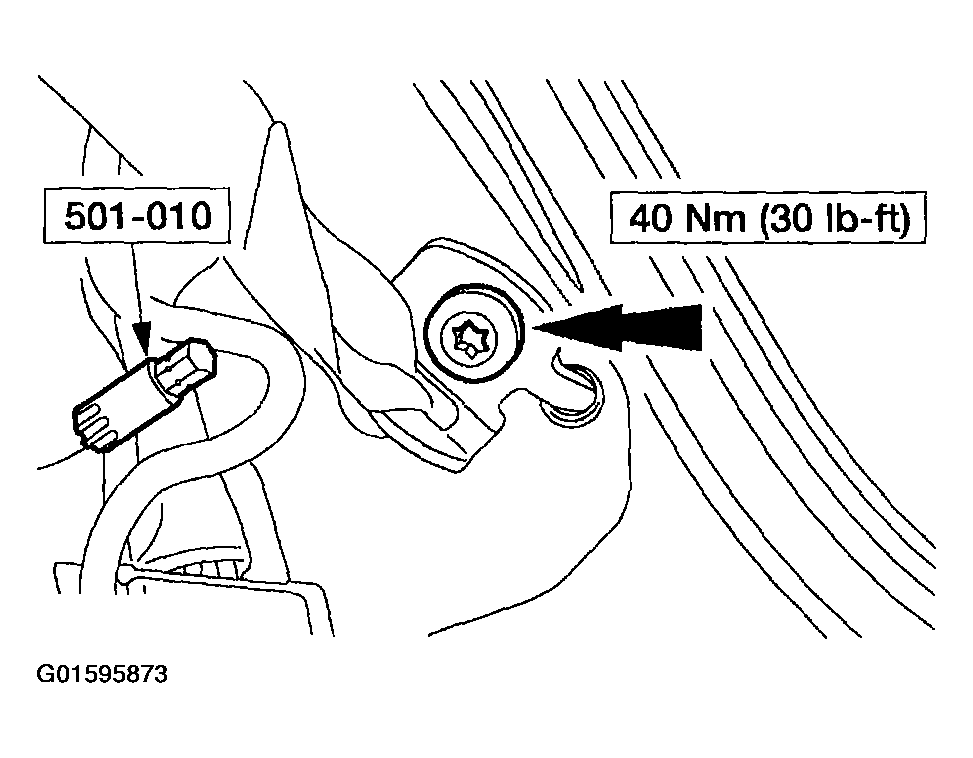

Using the special tool, remove the second row safety belt anchor bolt.

Fig 5: Removing Second Row Safety Belt Anchor Bolt
Courtesy of FORD MOTOR CO.
Remove the retaining clip from the second row safety belt D-ring bolt.

Fig 6: Removing Retaining Clip From Second Row Safety Belt D-Ring Bolt
Courtesy of FORD MOTOR CO.

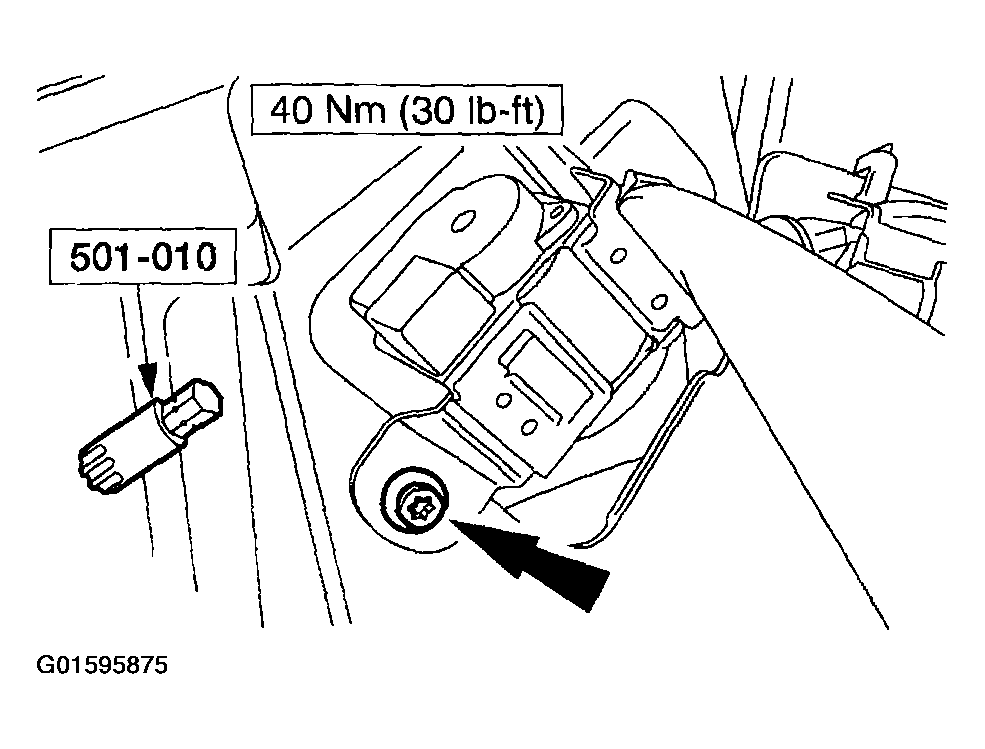

Using the special tool, remove the auxiliary seat safety belt retractor bolt and feed the safety belt through the quarter trim panel.

Fig 7: Removing Auxiliary Seat Safety Belt Retractor Bolt
Courtesy of FORD MOTOR CO.
Remove the quarter trim panel.
If necessary, remove the rear seat bolster.
To install, reverse the removal procedure.
