Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the side air bag has been deployed, inspect the B-pillar trim panel for damage and install a new panel if necessary.

NOTE: Inspect the D-ring cover for damage. If the cover is damaged or will not remain closed, install a new cover.

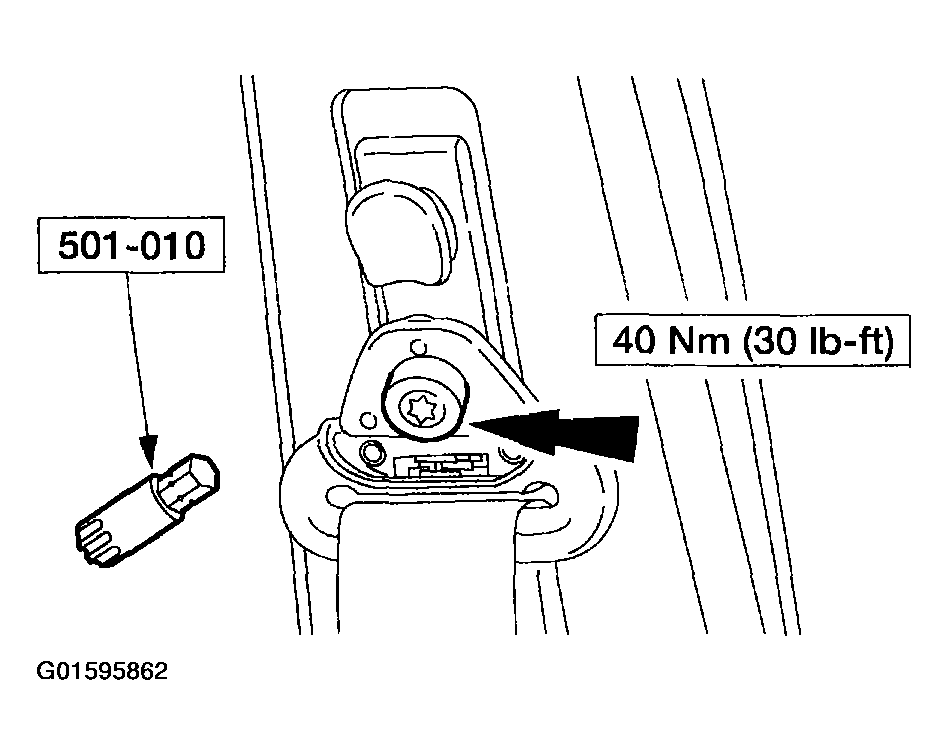

Fig 1: Removing Safety Belt D-Ring Cover And D-Ring Bolt

Courtesy of FORD MOTOR CO.

Using the special tool, remove the safety belt D-ring cover and the D-ring bolt.
Remove the upper B-pillar trim panel.

Fig 2: Removing Upper B-Pillar Trim Panel
Courtesy of FORD MOTOR CO.
Remove the front scuff plate.

Fig 3: Removing Front Scuff Plate
Courtesy of FORD MOTOR CO.
Remove the lower B-pillar trim panel.

Fig 4: Removing Lower B-Pillar Trim Panel
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
