Pinpoint Test A: The Alarm System Does Not Arm / Disarm - From Driver Or Passenger Door Lock Cylinder

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

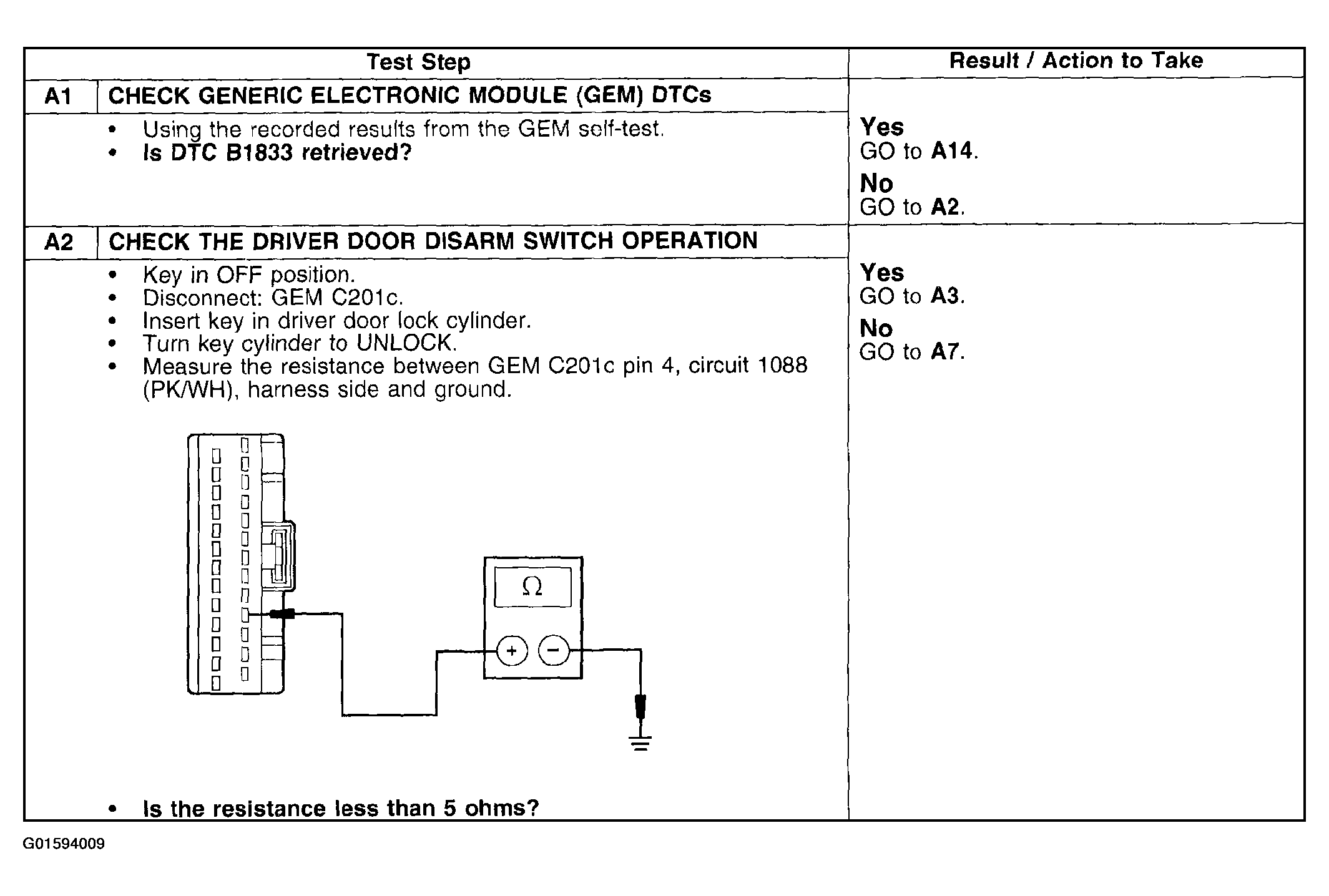

Fig 1: Pinpoint Test A: Alarm System Does Not Arm / Disarm - From Driver Or Passenger Door Lock Cylinder (Steps A1-A2)

Courtesy of FORD MOTOR CO.

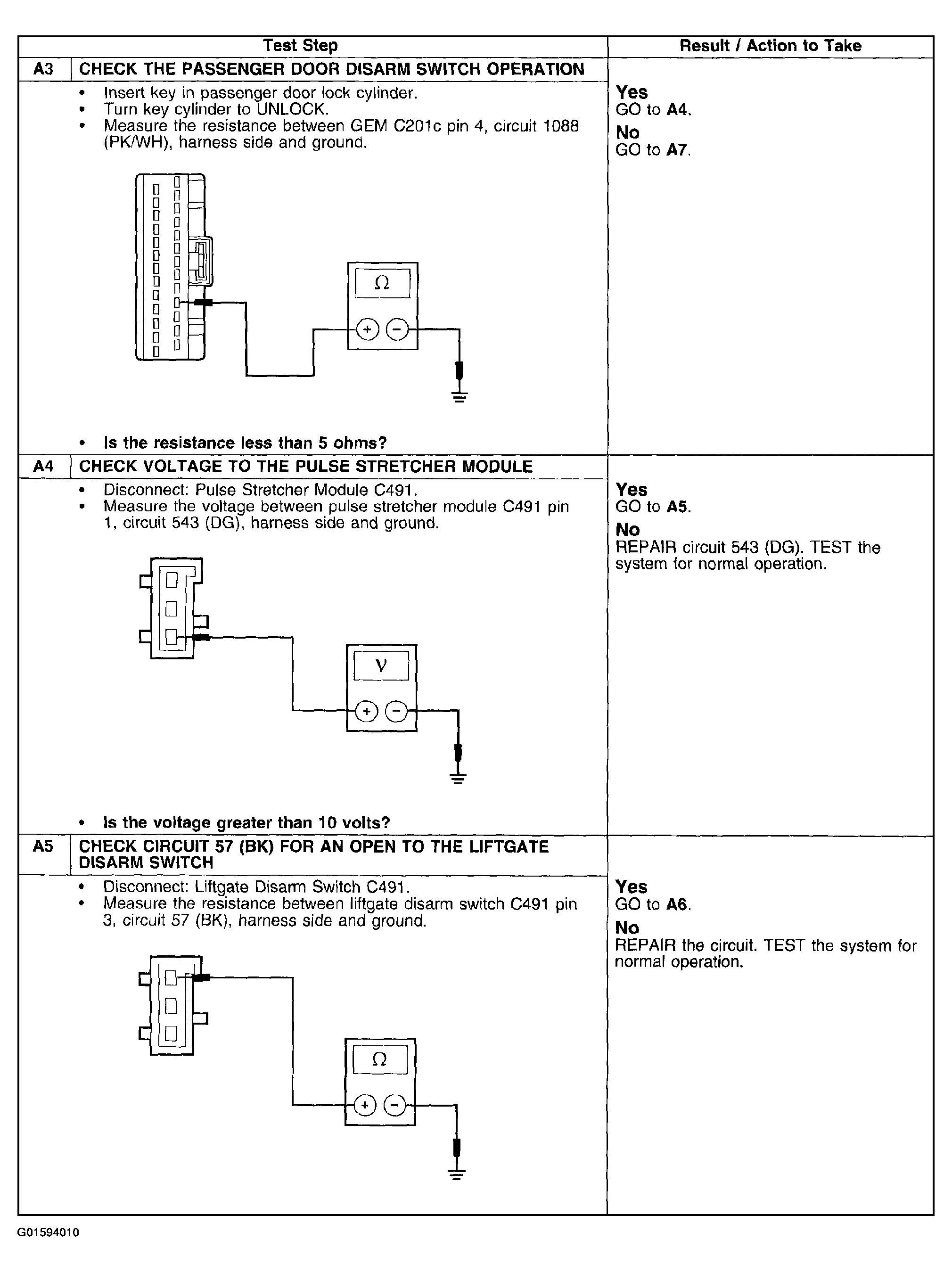

Fig 2: Pinpoint Test A: Alarm System Does Not Arm / Disarm - From Driver Or Passenger Door Lock Cylinder (Steps A3-A5)

Courtesy of FORD MOTOR CO.

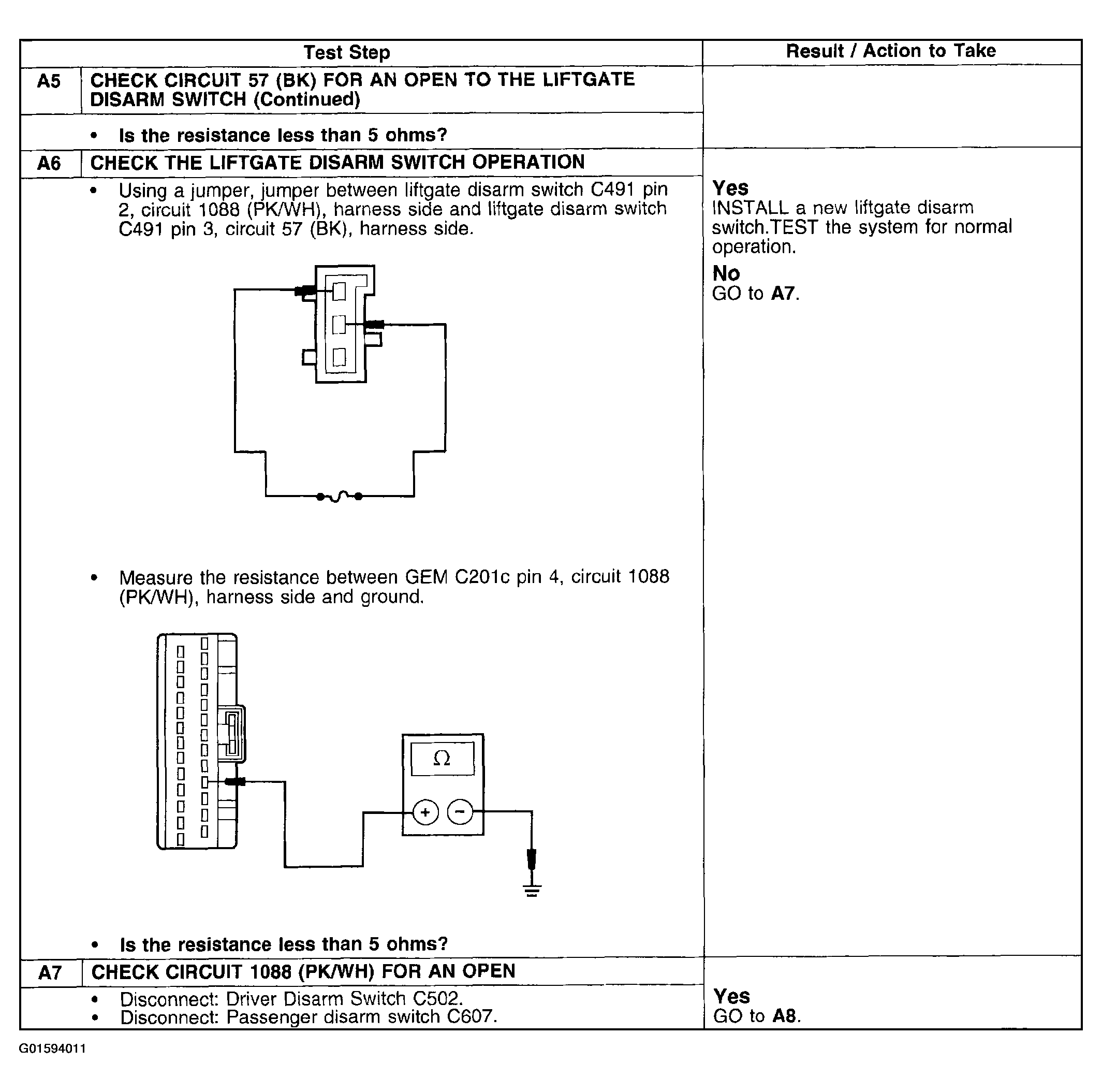

Fig 3: Pinpoint Test A: Alarm System Does Not Arm / Disarm - From Driver Or Passenger Door Lock Cylinder (Steps A5 Continued-A7)

Courtesy of FORD MOTOR CO.

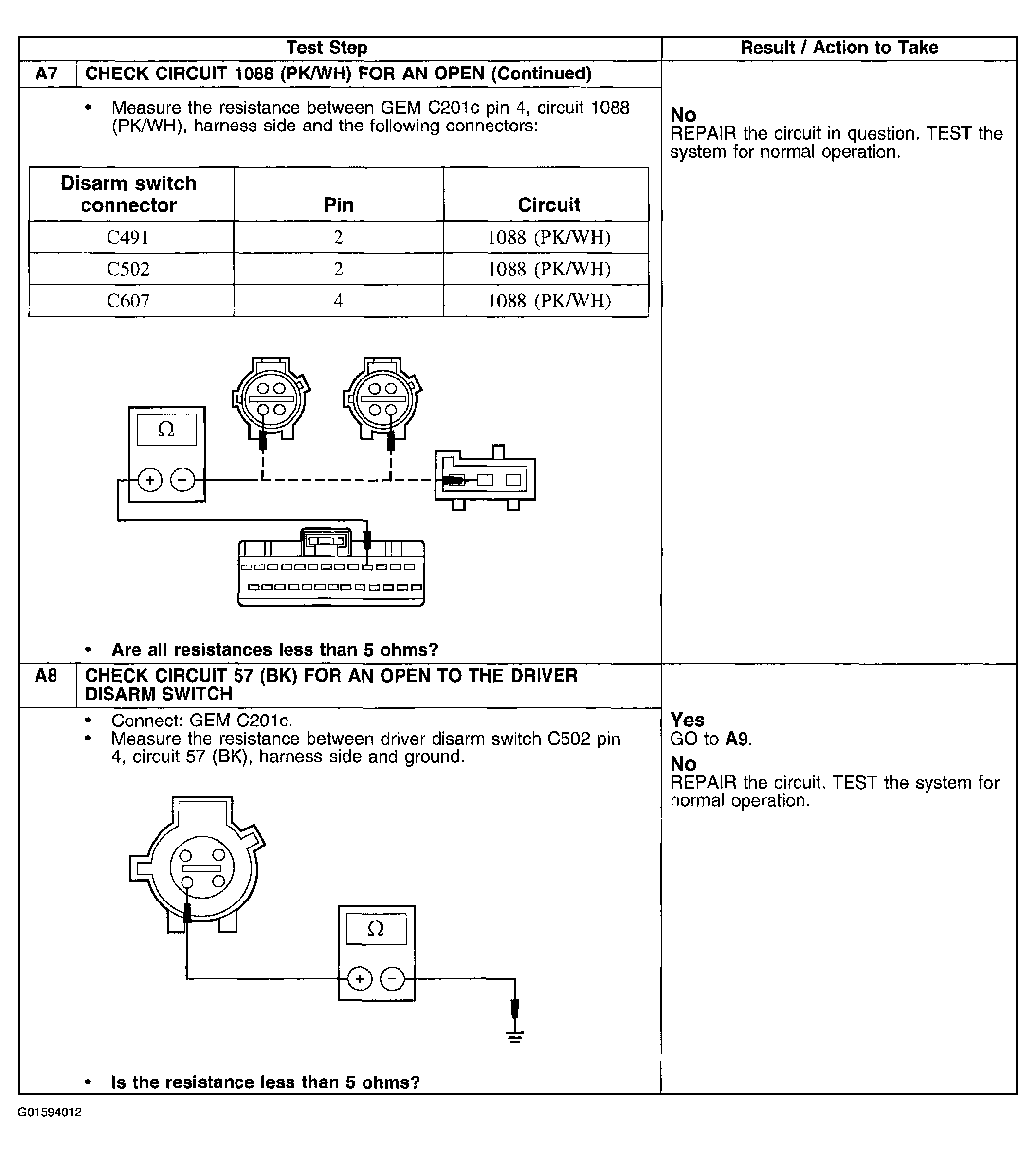

Fig 4: Pinpoint Test A: Alarm System Does Not Arm / Disarm - From Driver Or Passenger Door Lock Cylinder (Steps A7 Continued-A8)

Courtesy of FORD MOTOR CO.

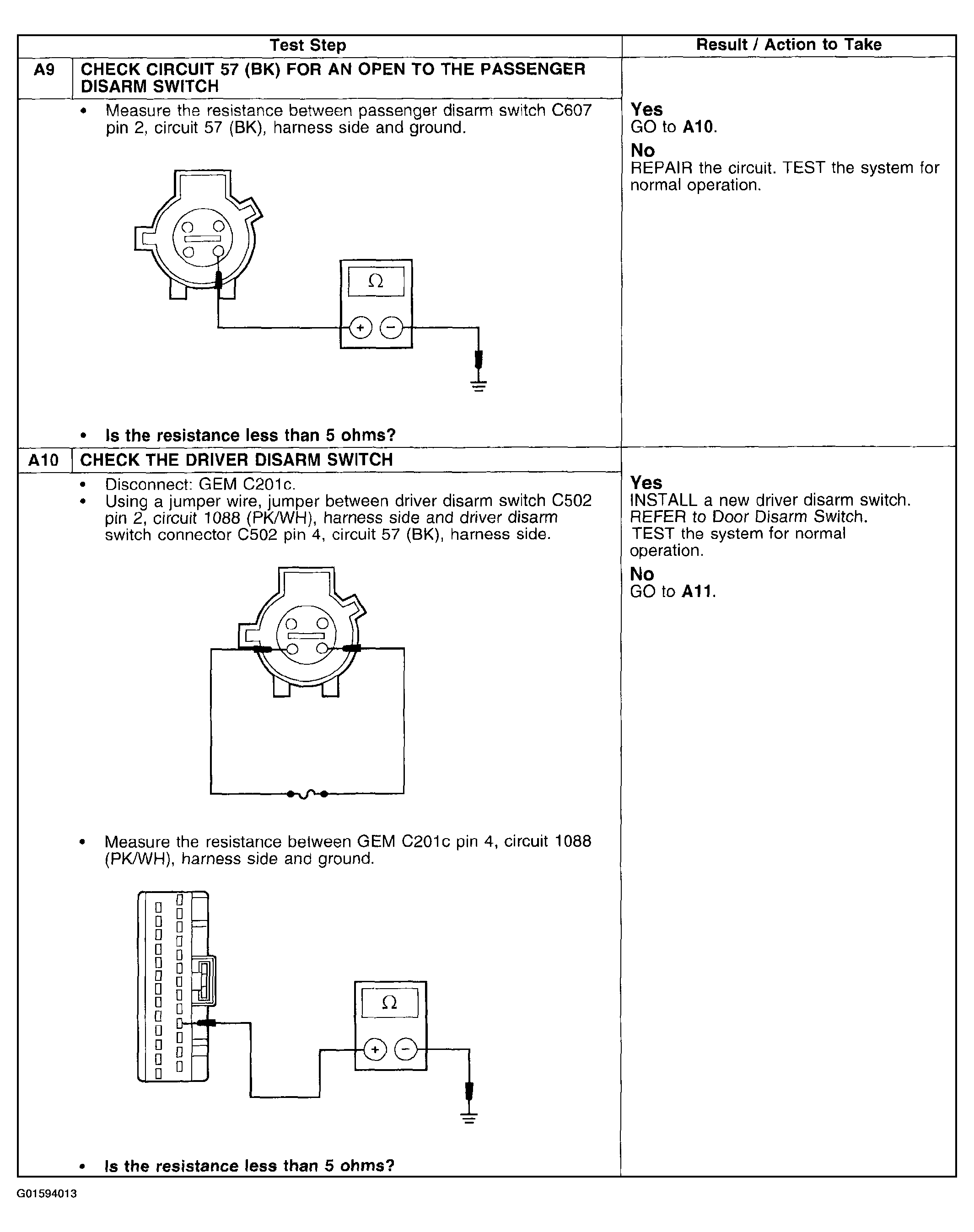

Fig 5: Pinpoint Test A: Alarm System Does Not Arm / Disarm - From Driver Or Passenger Door Lock Cylinder (Steps A9-A10)

Courtesy of FORD MOTOR CO.

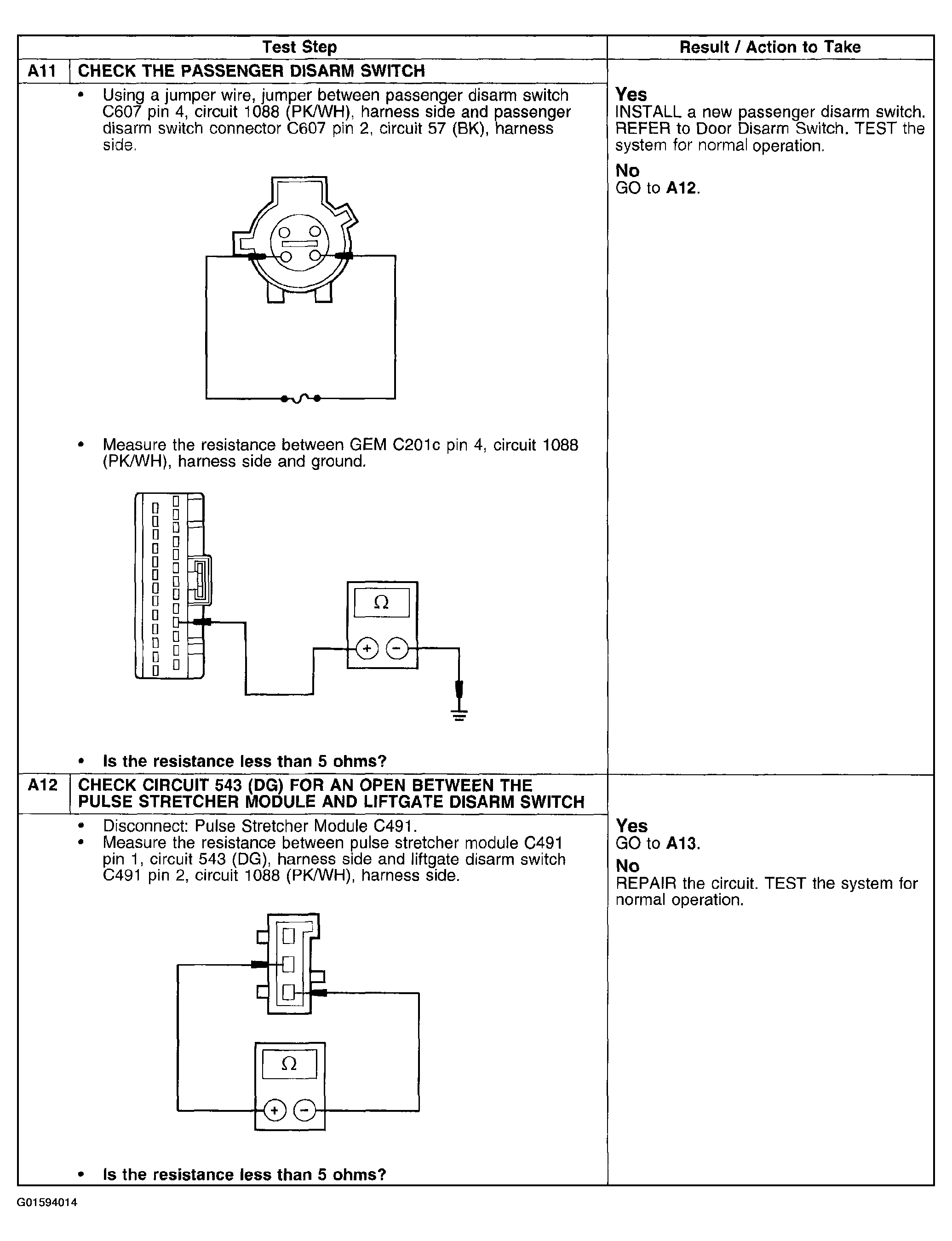

Fig 6: Pinpoint Test A: Alarm System Does Not Arm / Disarm - From Driver Or Passenger Door Lock Cylinder (Steps A11-A12)

Courtesy of FORD MOTOR CO.

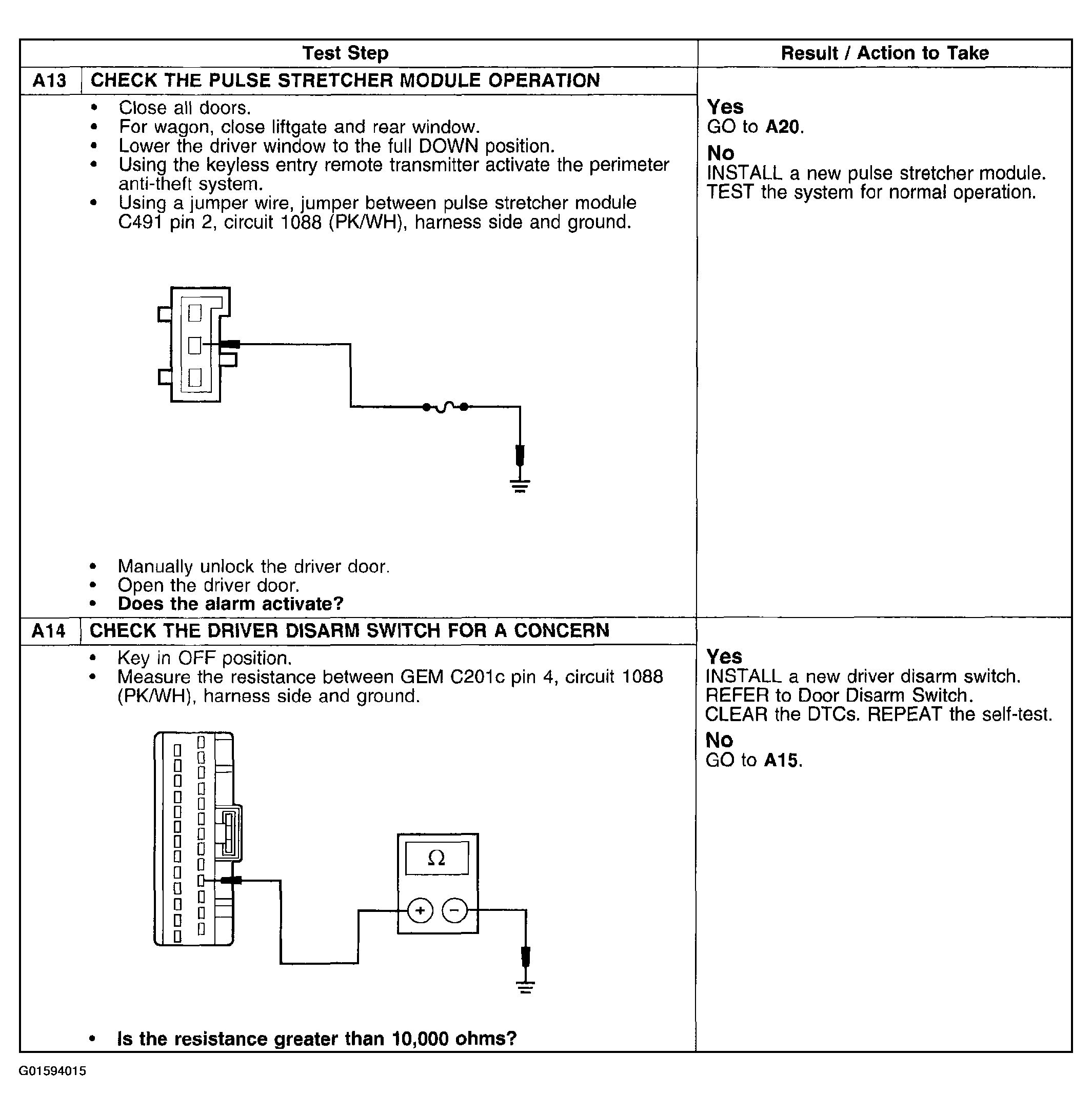

Fig 7: Pinpoint Test A: Alarm System Does Not Arm / Disarm - From Driver Or Passenger Door Lock Cylinder (Steps A13-A14)

Courtesy of FORD MOTOR CO.

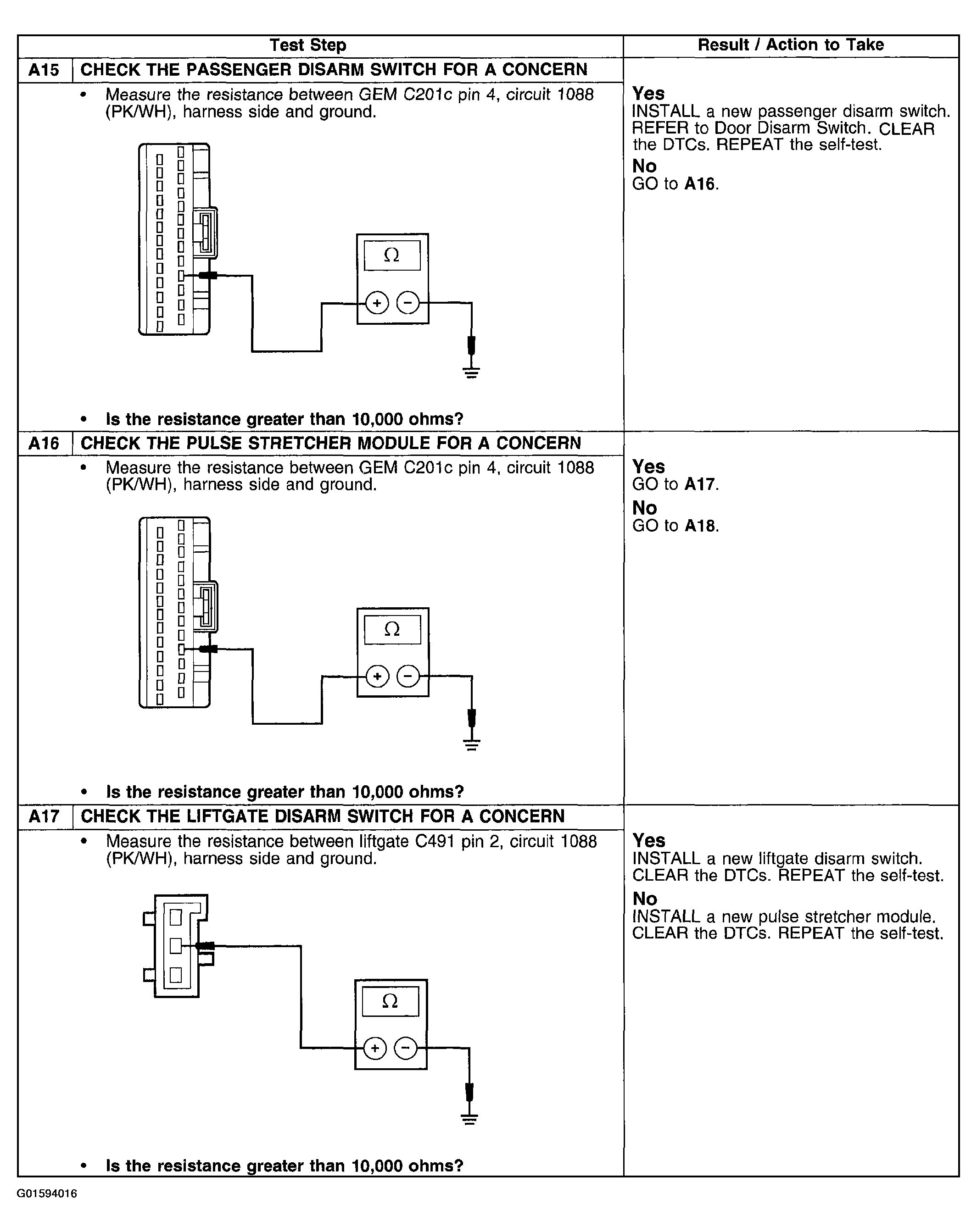

Fig 8: Pinpoint Test A: Alarm System Does Not Arm / Disarm - From Driver Or Passenger Door Lock Cylinder (Steps A15-A17)

Courtesy of FORD MOTOR CO.

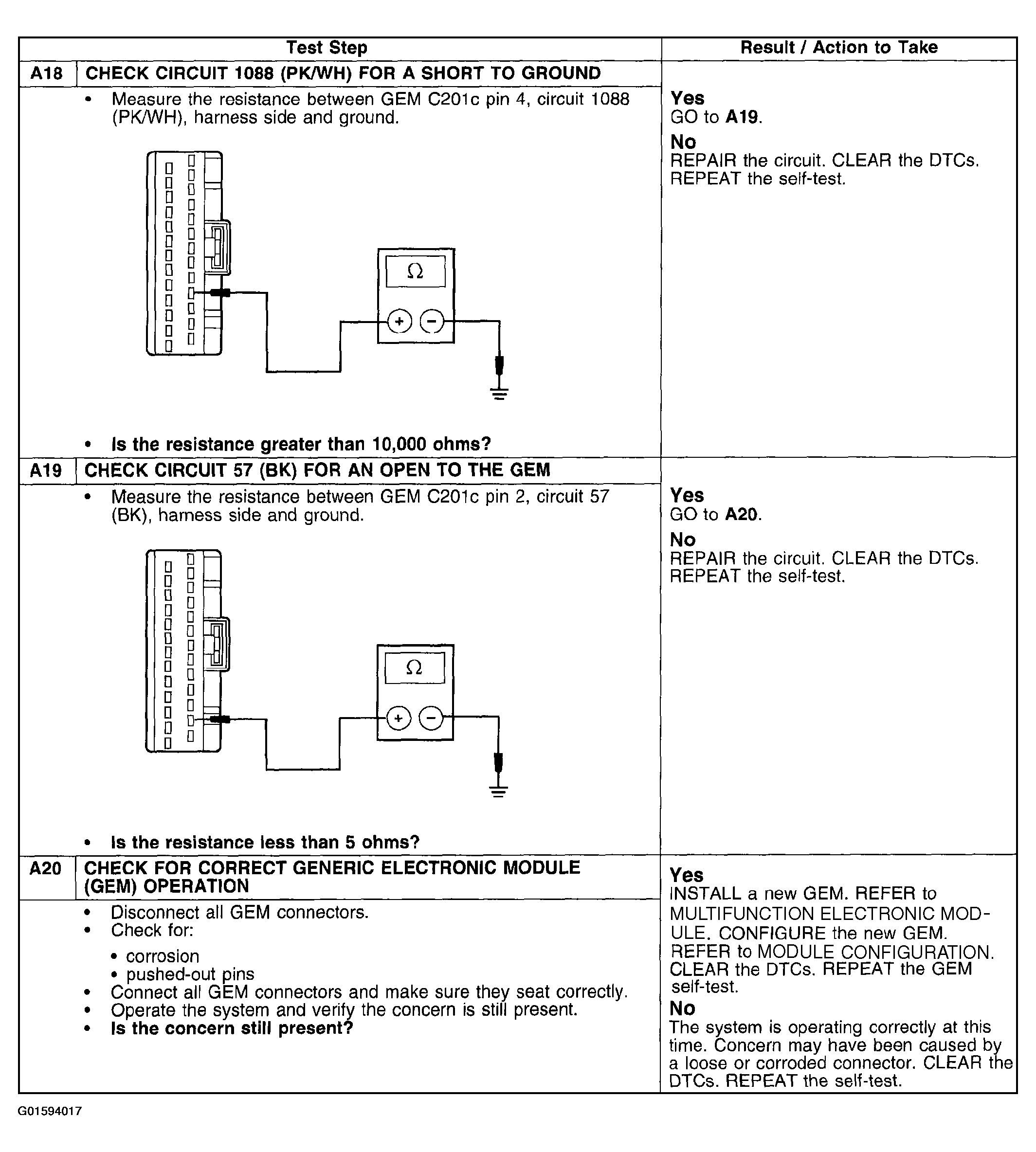

Fig 9: Pinpoint Test A: Alarm System Does Not Arm / Disarm - From Driver Or Passenger Door Lock Cylinder (Steps A18-A20)

Courtesy of FORD MOTOR CO.
