PINPOINT TEST B: THE ALARM SYSTEM DOES NOT ARM/DISARM - Using the Keyless Entry Remote Transmitter

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

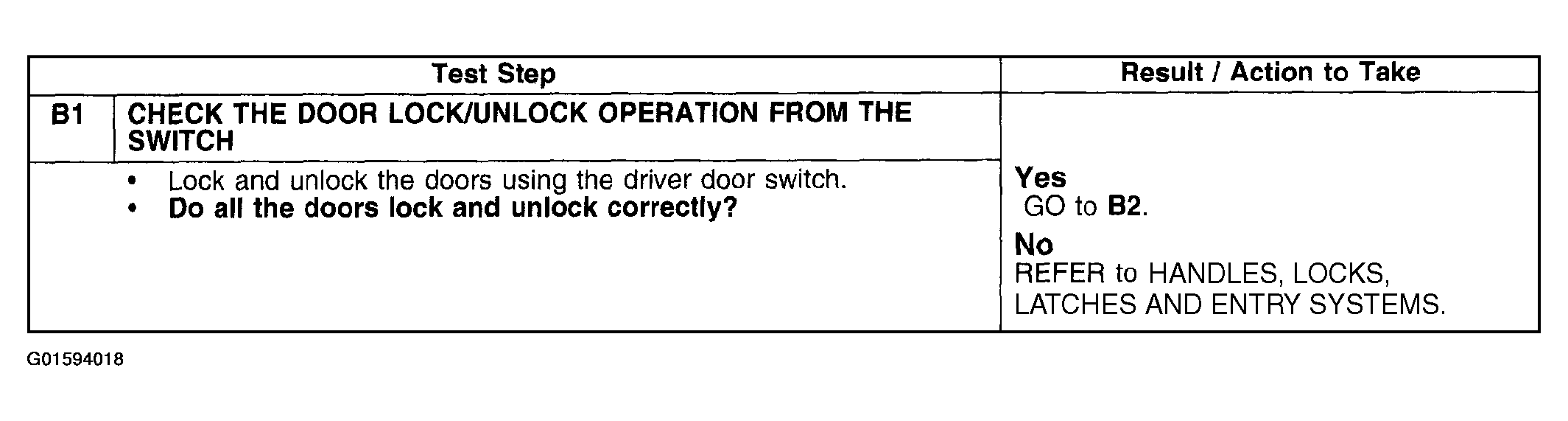

Fig 1: Pinpoint Test B: Alarm System Does Not Arm/Disarm - Using Keyless Entry Remote Transmitter (Steps B1)
G01594018Courtesy of FORD MOTOR CO.

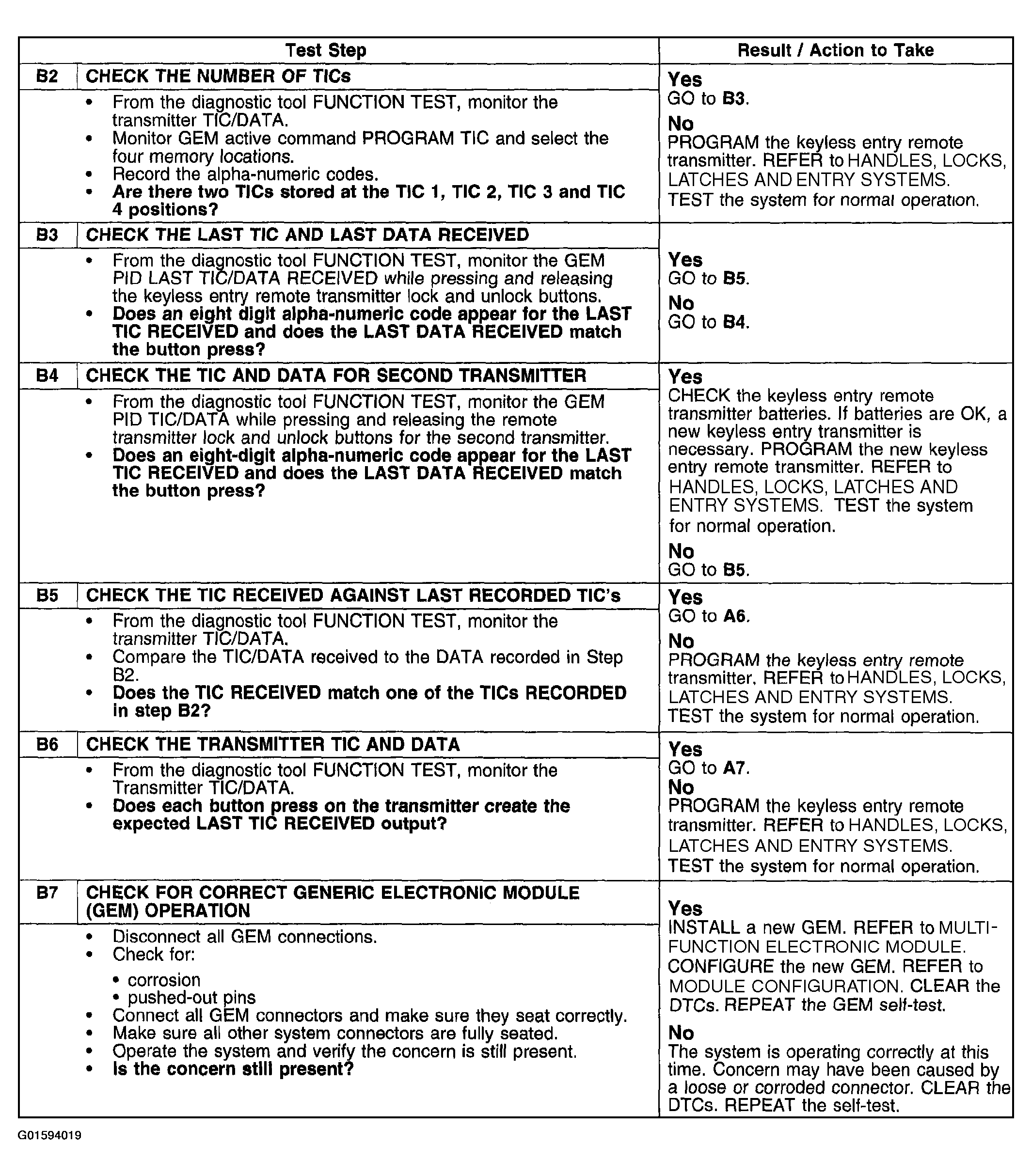

Fig 2: Pinpoint Test B: Alarm System Does Not Arm/Disarm - Using Keyless Entry Remote Transmitter (Steps B2-B7)
G01594019Courtesy of FORD MOTOR CO.
