Pinpoint Test G: The Battery Saver Does Not Deactivate After Time-Out

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

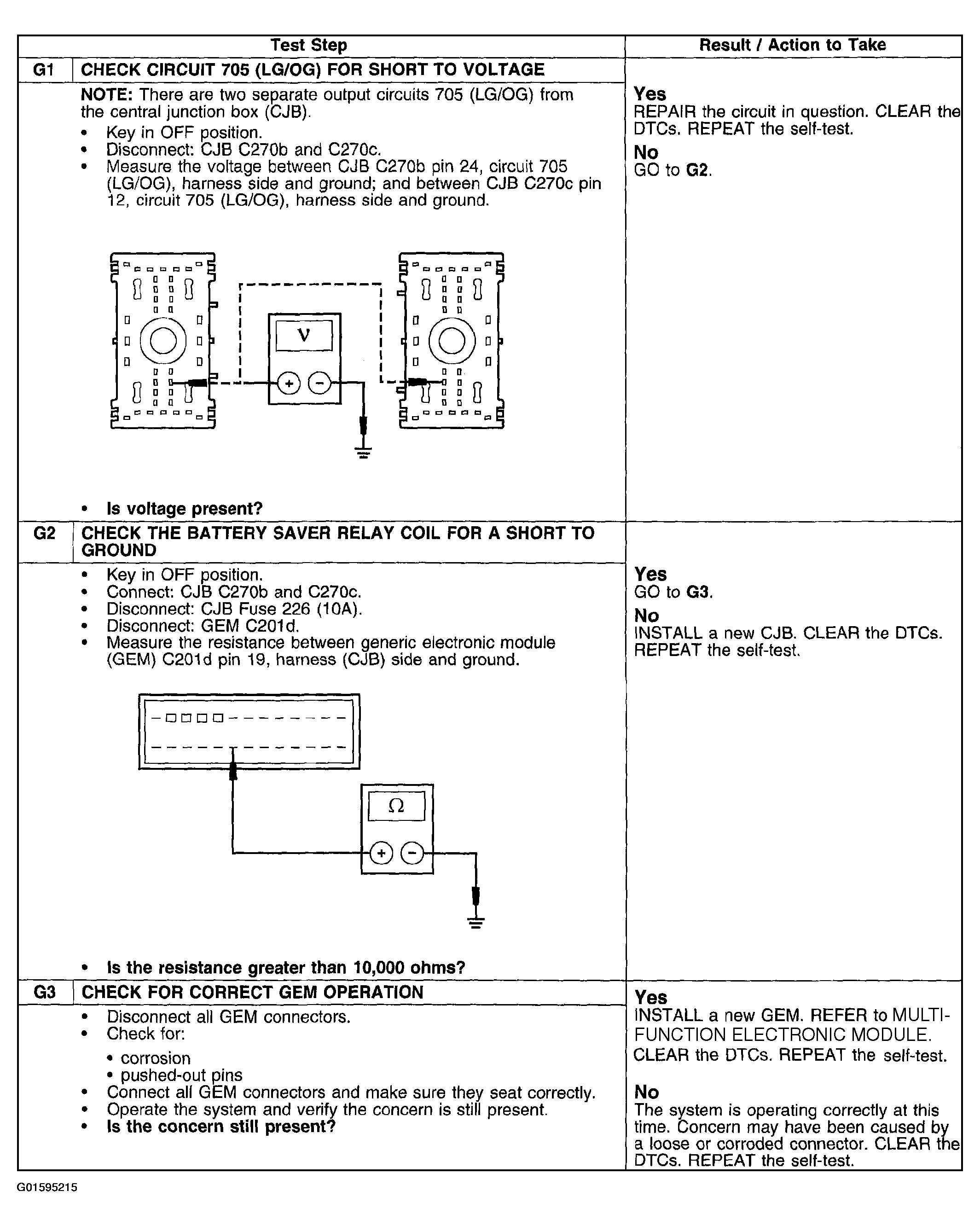

Fig 1: Pinpoint Test G: Battery Saver Does Not Deactivate After Time-Out (Steps G1-G3)
G01595215Courtesy of FORD MOTOR CO.
