Pinpoint Test F: The Demand Lighting Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

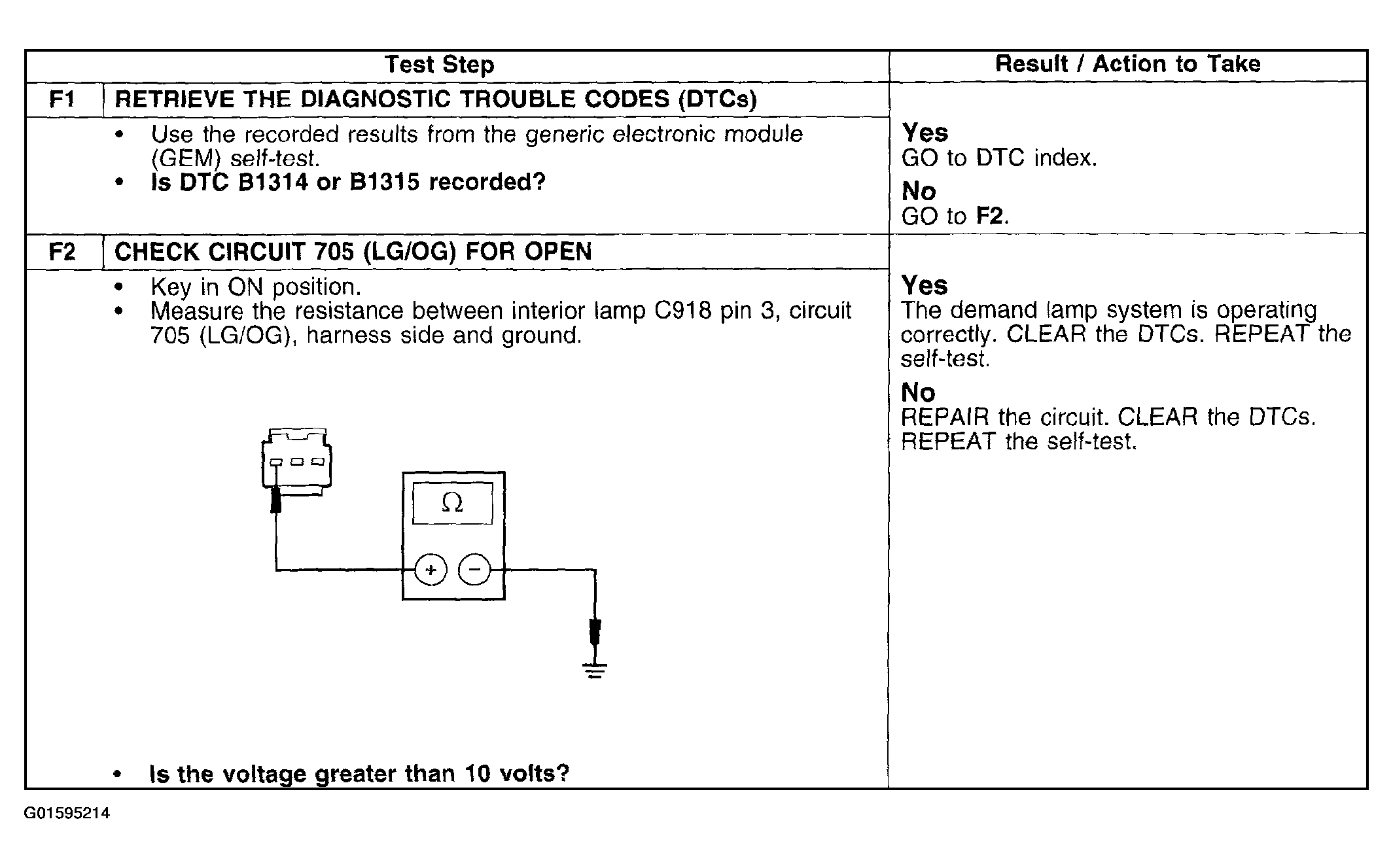

Fig 1: Pinpoint Test F: Demand Lighting Inoperative (Steps F1-F2)
G01595214Courtesy of FORD MOTOR CO.
