WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

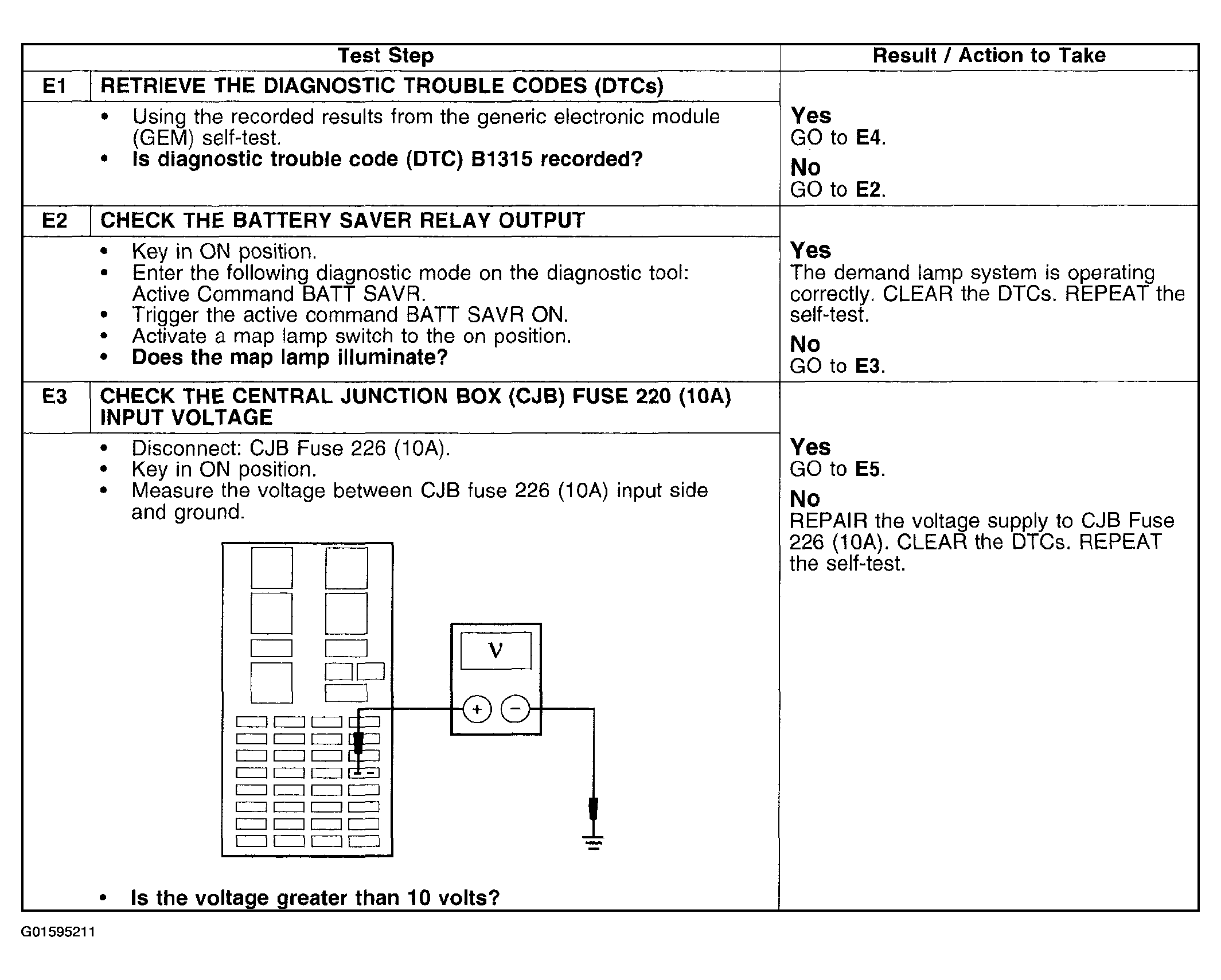

Fig 1: Pinpoint Test E: Battery Saver Inoperative (Steps E1-E3)
Courtesy of FORD MOTOR CO.

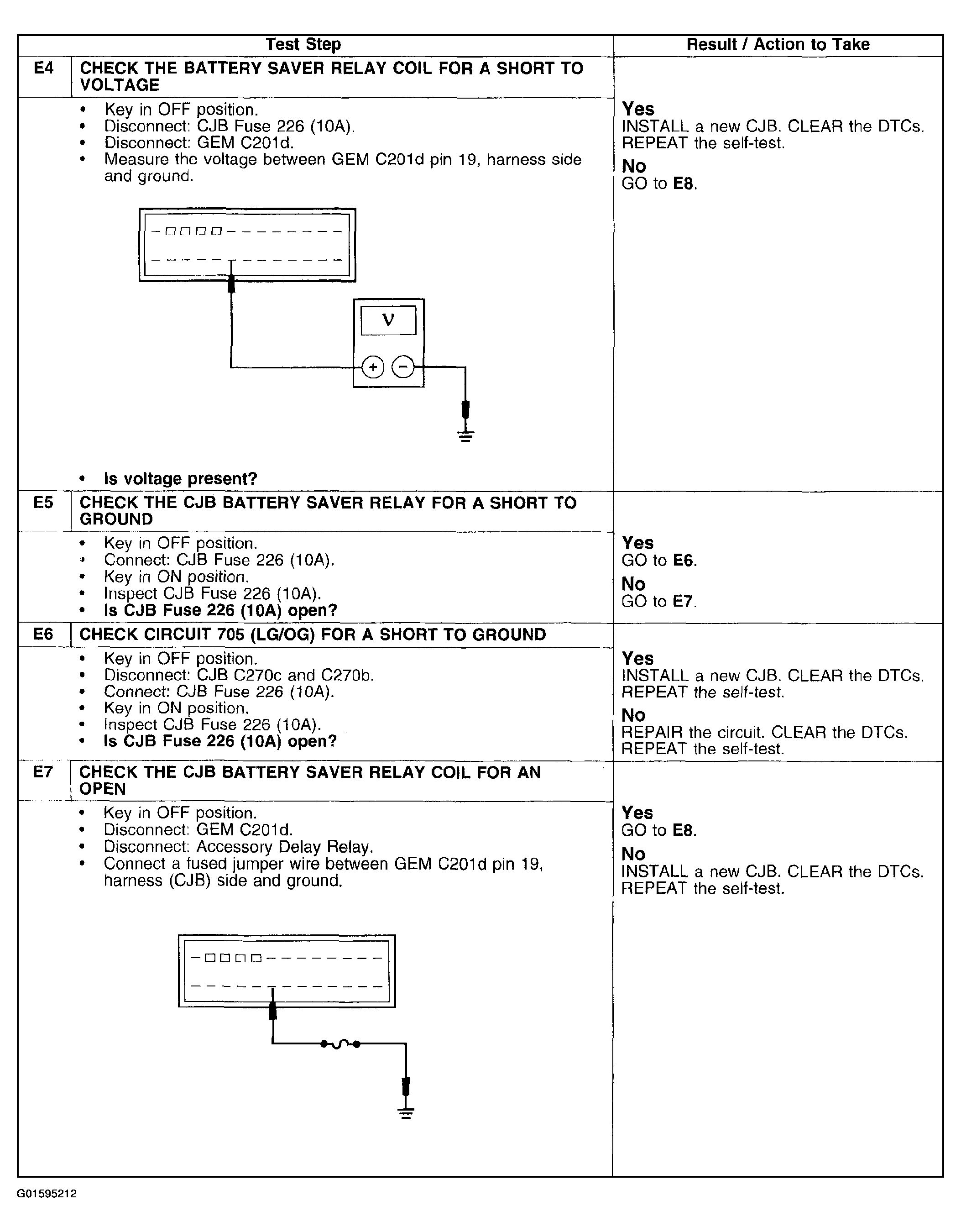

Fig 2: Pinpoint Test E: Battery Saver Inoperative (Steps E4-E7)
Courtesy of FORD MOTOR CO.

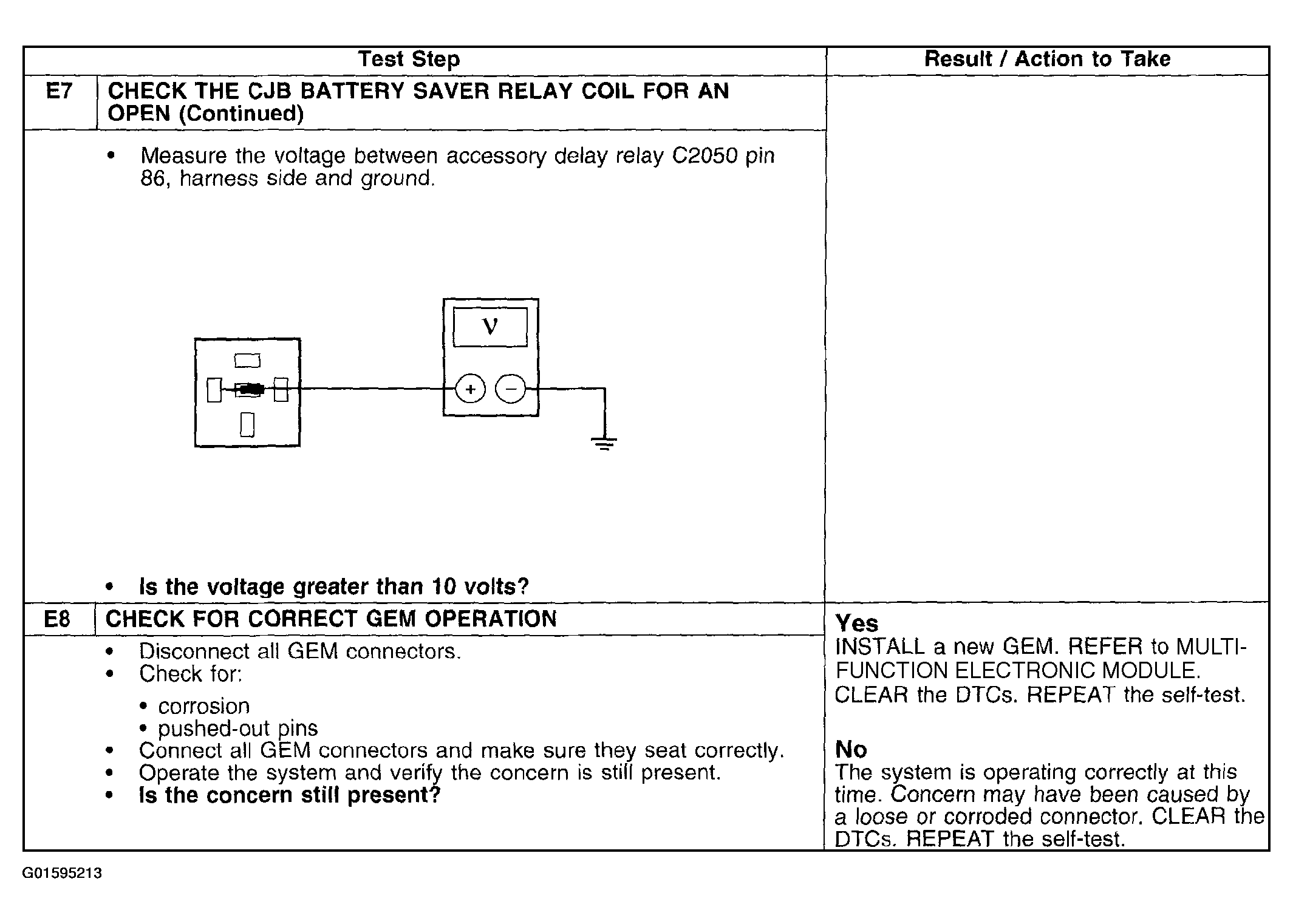

Fig 3: Pinpoint Test E: Battery Saver Inoperative (Steps E7-E8)
