Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Open the liftgate.
Remove the screws.

Fig 1: Removing Screws
Courtesy of FORD MOTOR CO.
Remove the rear lamp assembly.
1. Pull the rear lamp assembly from the body.
2. Remove the bulb sockets from the rear lamp assembly.

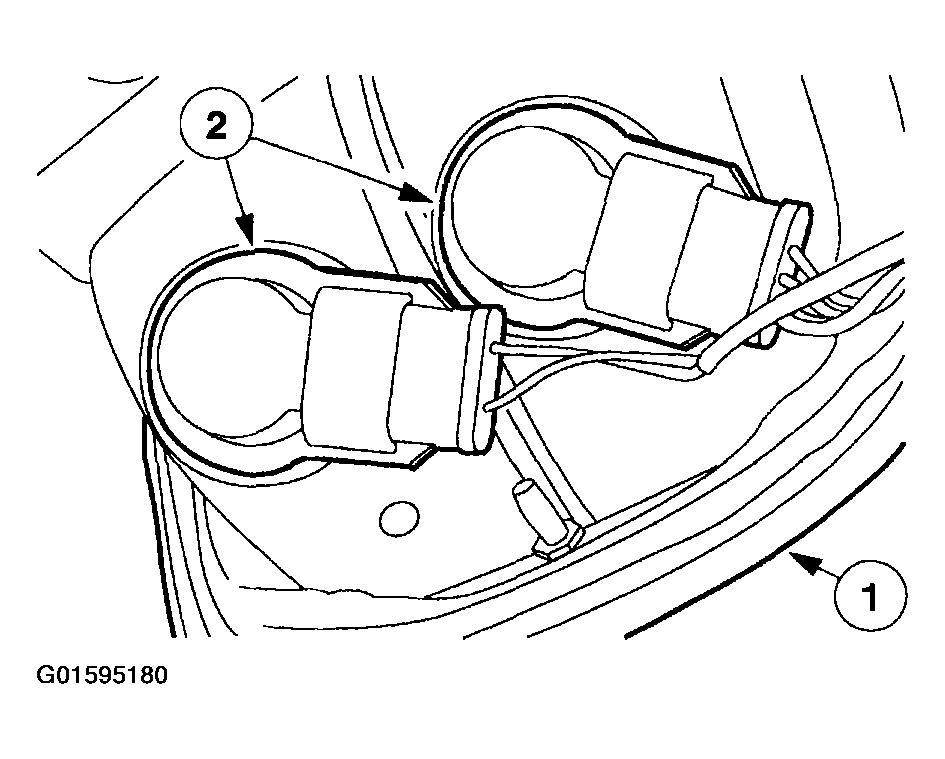

Fig 2: Removing Bulb Sockets From Rear Lamp Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
