Photocell And Amplifier: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lift upwards on the rear edge of the defroster grille then slide rearward to remove.
    Fig 1: Disconnecting Sunload/Headlamp Sensor Electrical Connector
    G01595188Courtesy of FORD MOTOR CO.
  1. Remove the defroster grille.
    • Disconnect the sunload/headlamp sensor electrical connector.
    2. CAUTION: To avoid damaging the light sensor amplifier electrical connector, carefully tilt the panel to expose the connector without stretching the wiring.

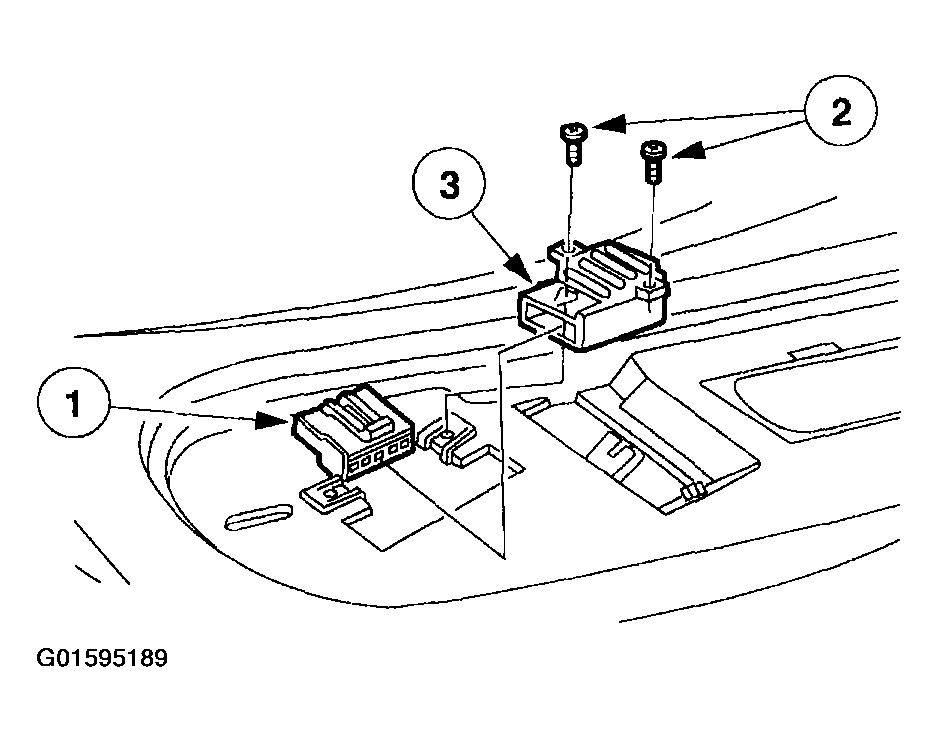

    Fig 2: Removing Sensor
    G01595189Courtesy of FORD MOTOR CO.
  2. Remove the light sensor amplifier (13A018).
    1. Disconnect the light sensor amplifier electrical connector.
    2. Remove the screws.
    3. Remove the sensor.
  3. To install, reverse the removal procedure.
