Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable (14301). For additional information, refer to BATTERY, MOUNTING AND CABLES .

CAUTION: Cover the end of the tool with tape to prevent damage.

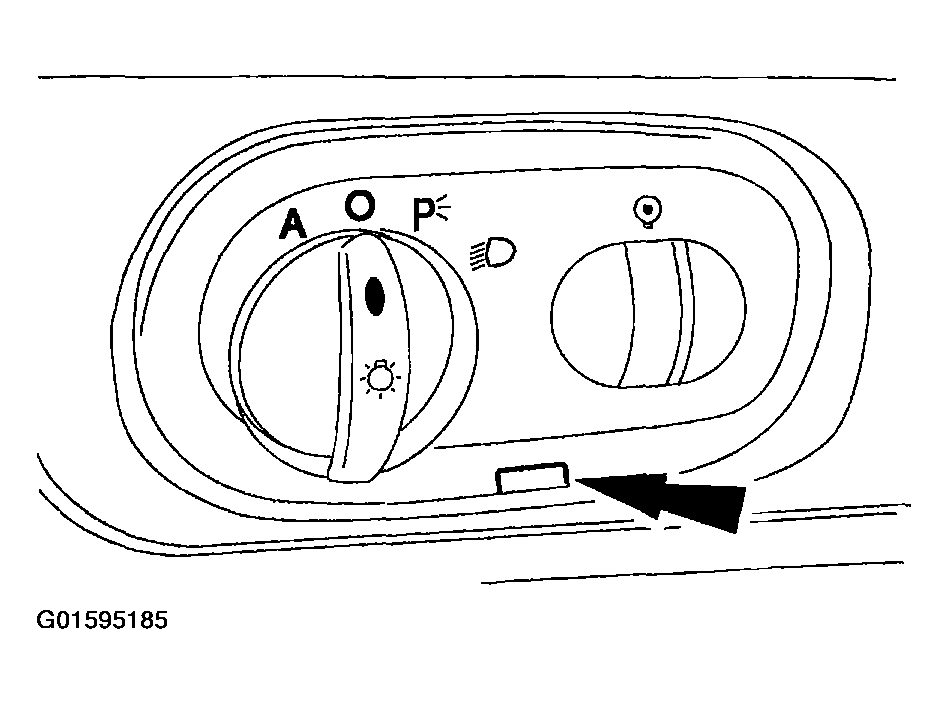

Fig 1: Inserting Thin Tool To Removing Headlamp Switch

Courtesy of FORD MOTOR CO.

Insert a thin tool to remove the headlamp switch.
Disconnect the electrical connectors.

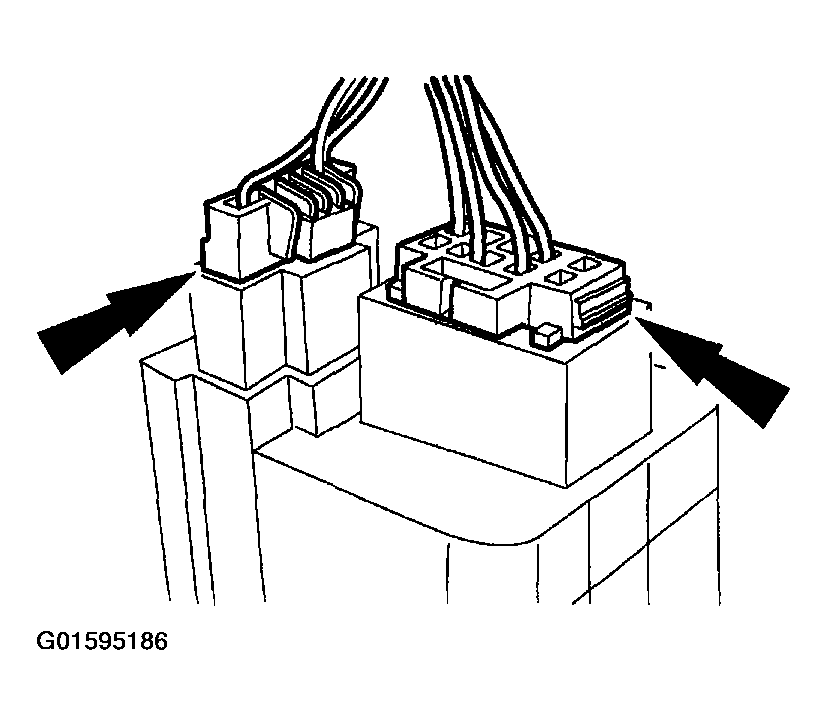

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
