Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

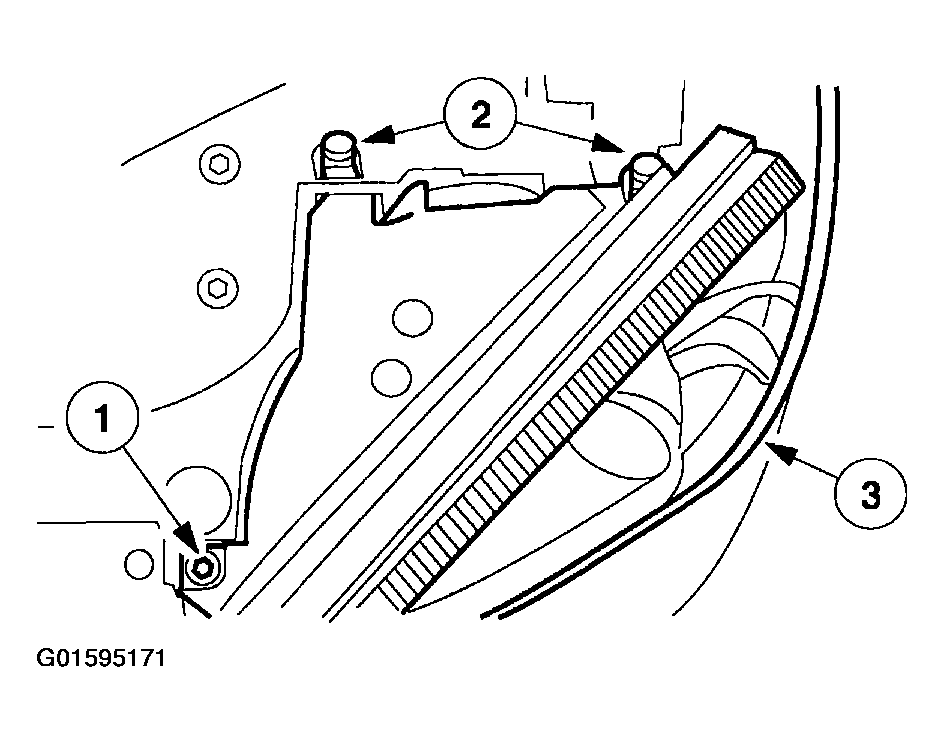

Fig 1: Removing Headlamp Assembly

Courtesy of FORD MOTOR CO.

Remove the headlamp assembly.
1. Remove the bolt.
2. Remove the retaining rods.
3. Remove the headlamp assembly.
Disconnect the headlamp assembly wiring harness.

Fig 2: Disconnecting Headlamp Assembly Wiring Harness
Courtesy of FORD MOTOR CO.

NOTE: When installing, make sure the headlamp assembly is positioned correctly so that it aligns with the boss and the holes of the reinforcement.

NOTE: Make sure the headlamp wiring harness does not get caught between the headlamp and grille opening reinforcement. If it does, position the harness free of all mounting points.

To install, reverse the removal procedure.
- If necessary, adjust the headlamps. For additional information, refer to HEADLAMP ADJUSTMENT .
