Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the aeroshield-to-sub frame screws.

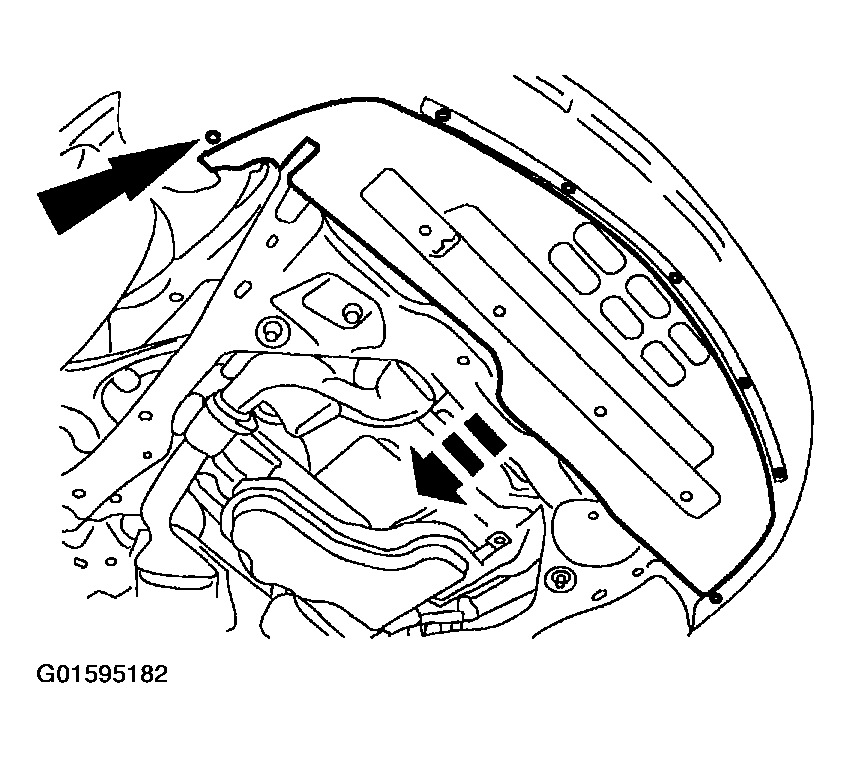

Fig 1: Removing Aeroshield-To-Sub Frame Screws
Courtesy of FORD MOTOR CO.
Remove the seven screws and remove the aeroshield.

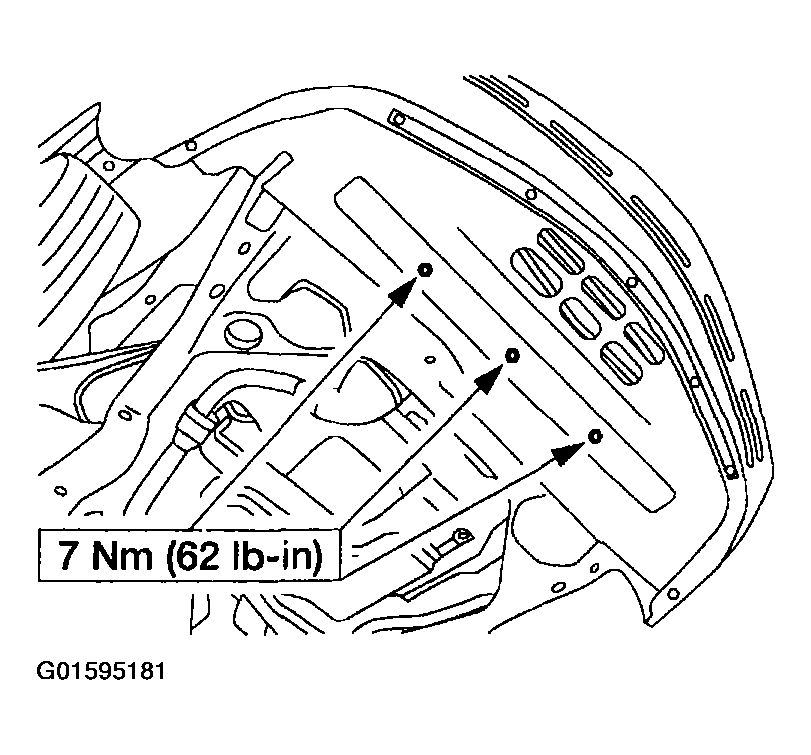

Fig 2: Removing Seven Screws And Aeroshield
Courtesy of FORD MOTOR CO.
Disconnect the fog lamp assembly electrical connector.

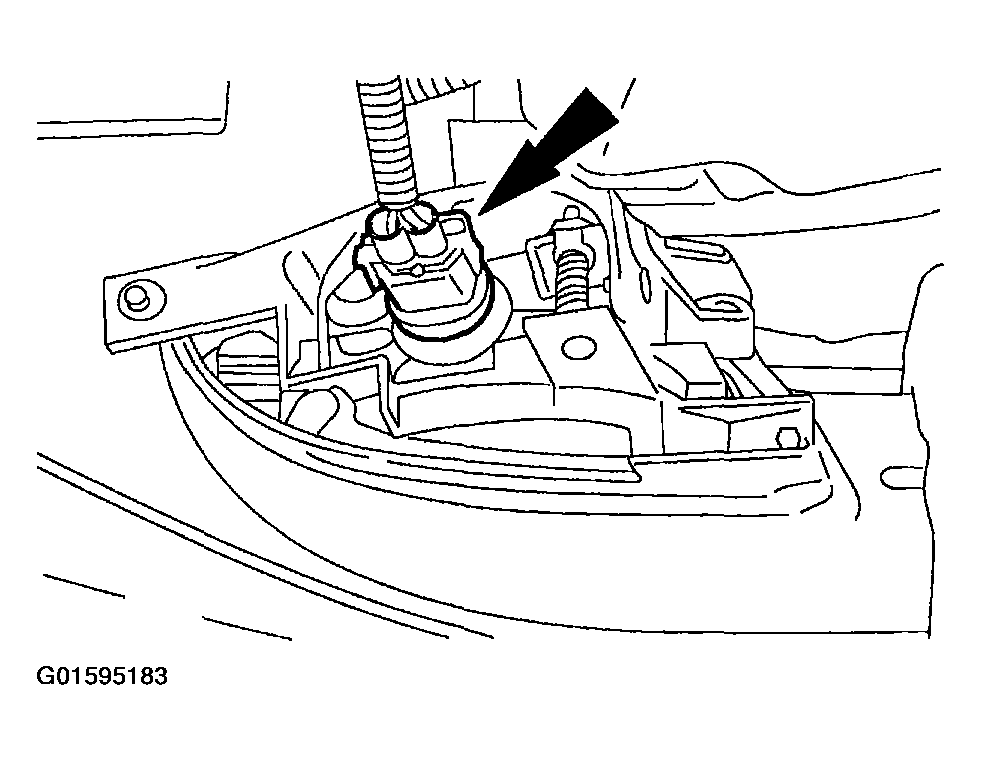

Fig 3: Disconnecting Fog Lamp Assembly Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the fog lamp assembly.
1. Remove the screws.
2. Remove the lamp assembly.

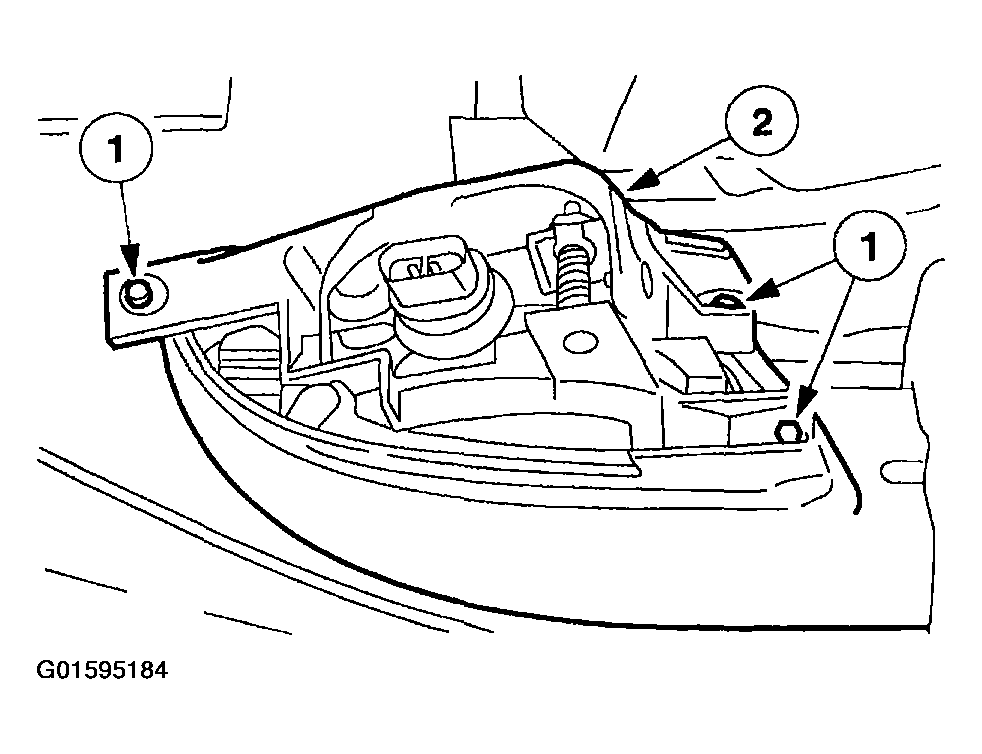

Fig 4: Removing Fog Lamp Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
