Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the BPP switch.
    1. Disconnect the electrical connector.
    2. Remove the self-locking pin.
    3. Remove the BPP switch from the brake master cylinder push rod.

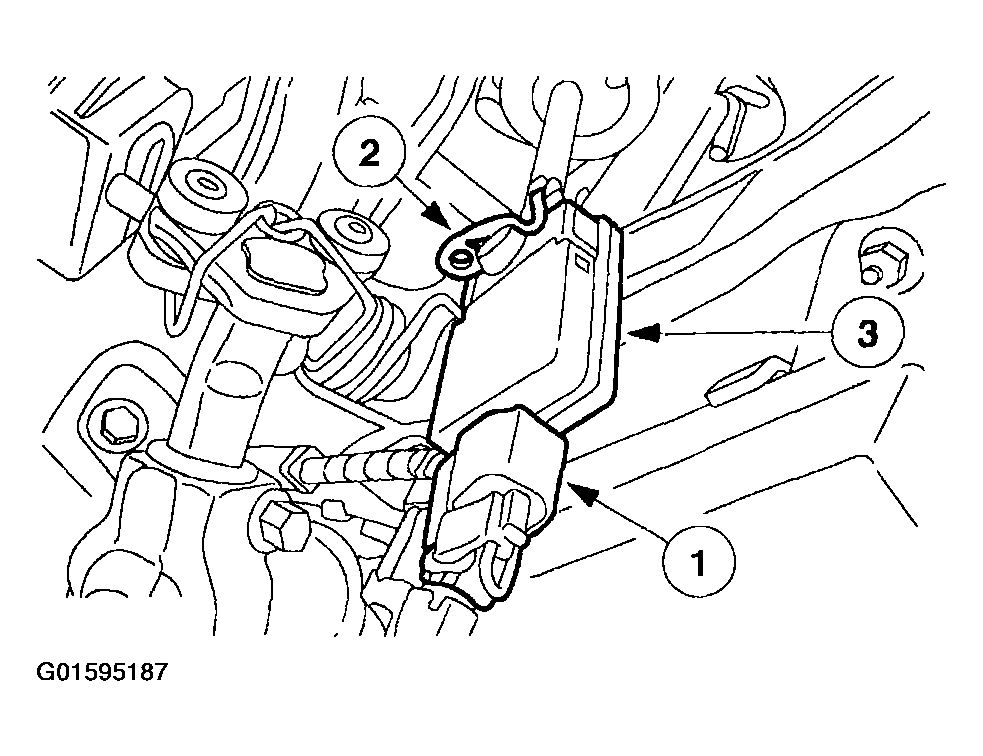

    Fig 1: Removing BPP Switch From Brake Master Cylinder Push Rod
    G01595187Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
