Pinpoint Test L: The STOPLAMPS Are Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

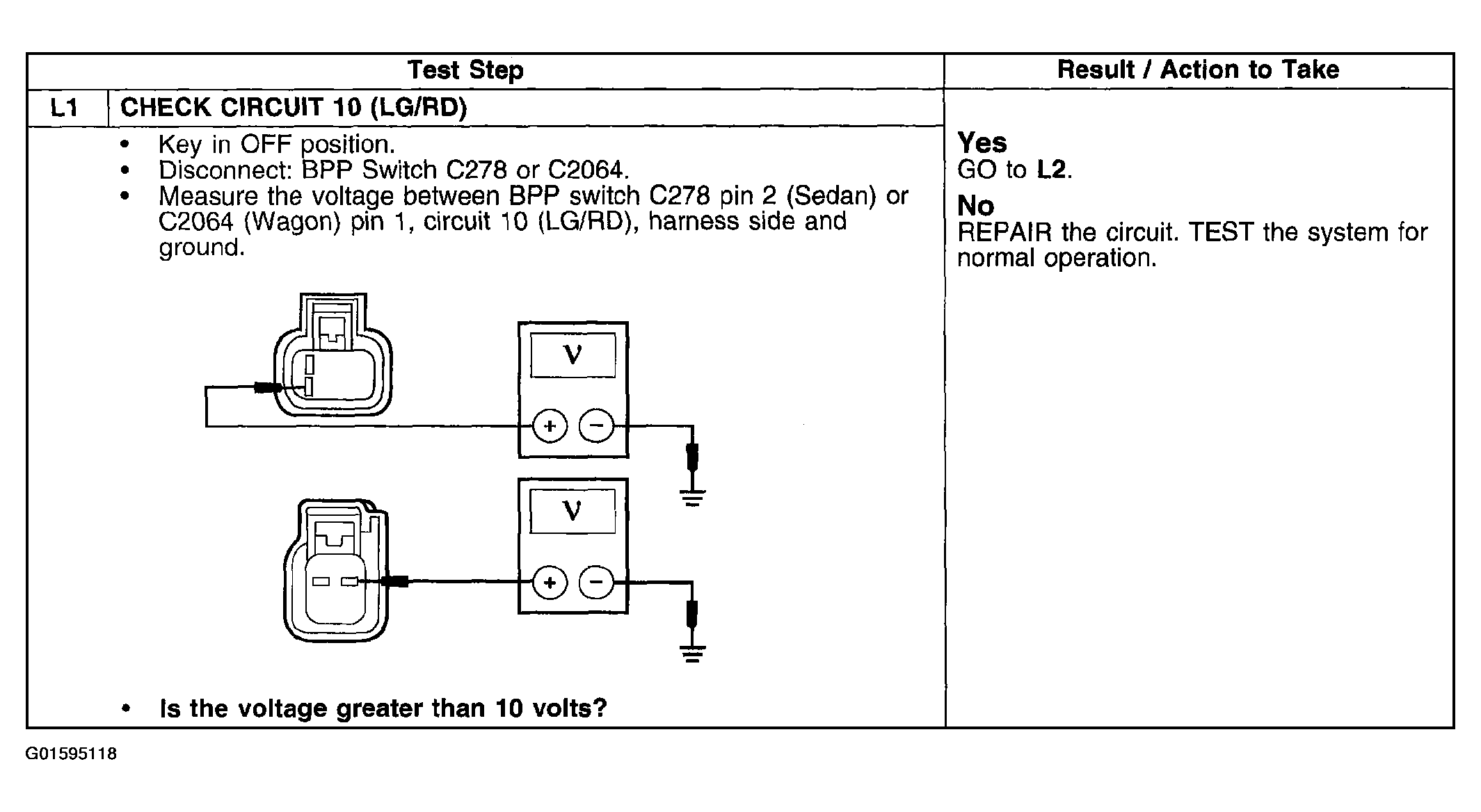

Fig 1: Pinpoint Test L: Stoplamps Inoperative (Step L1)
G01595118Courtesy of FORD MOTOR CO.

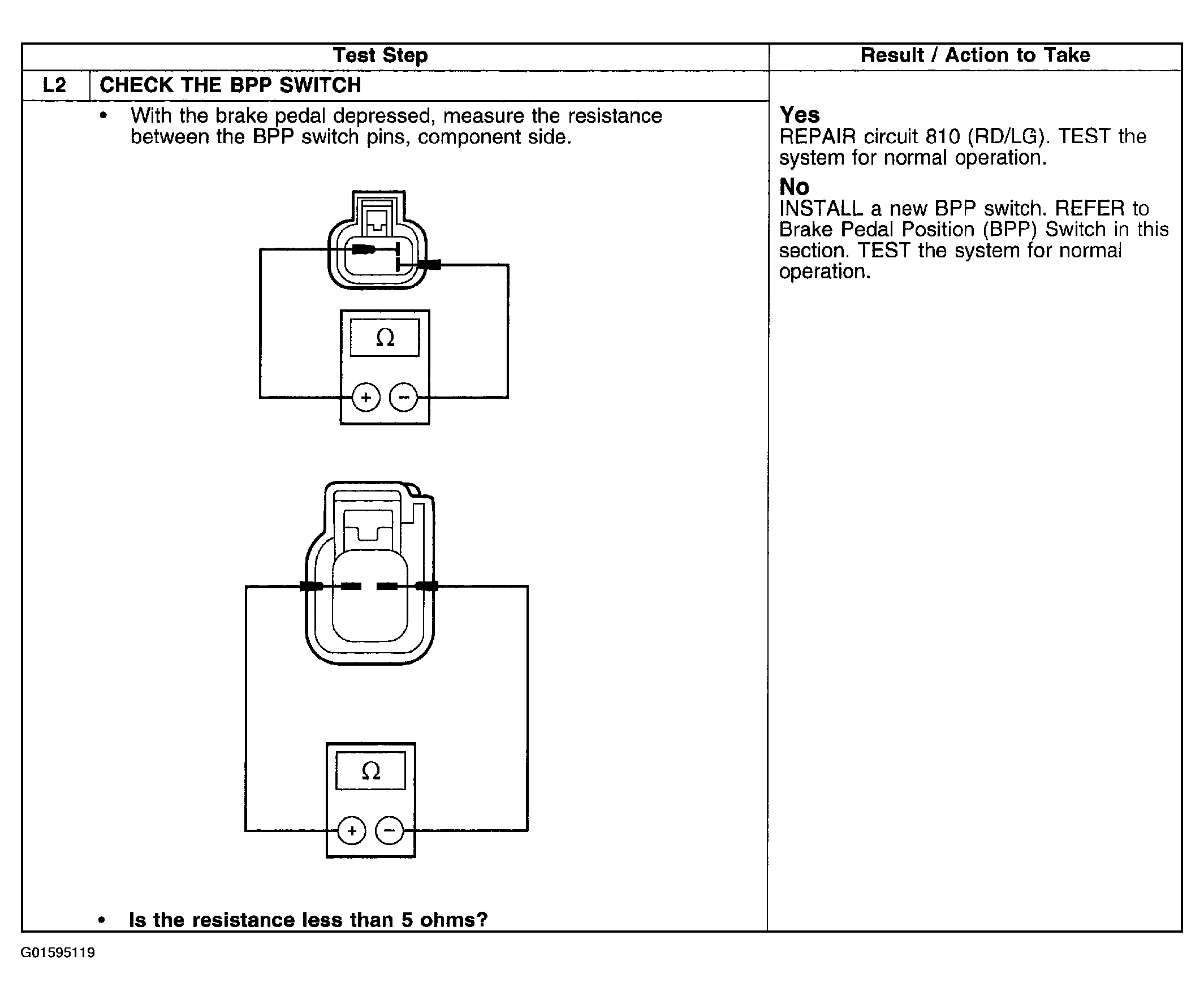

Fig 2: Pinpoint Test L: Stoplamps Inoperative (Step L2)
G01595119Courtesy of FORD MOTOR CO.
