Pinpoint Test Z: The Reversing Lamps Are On Continuously
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

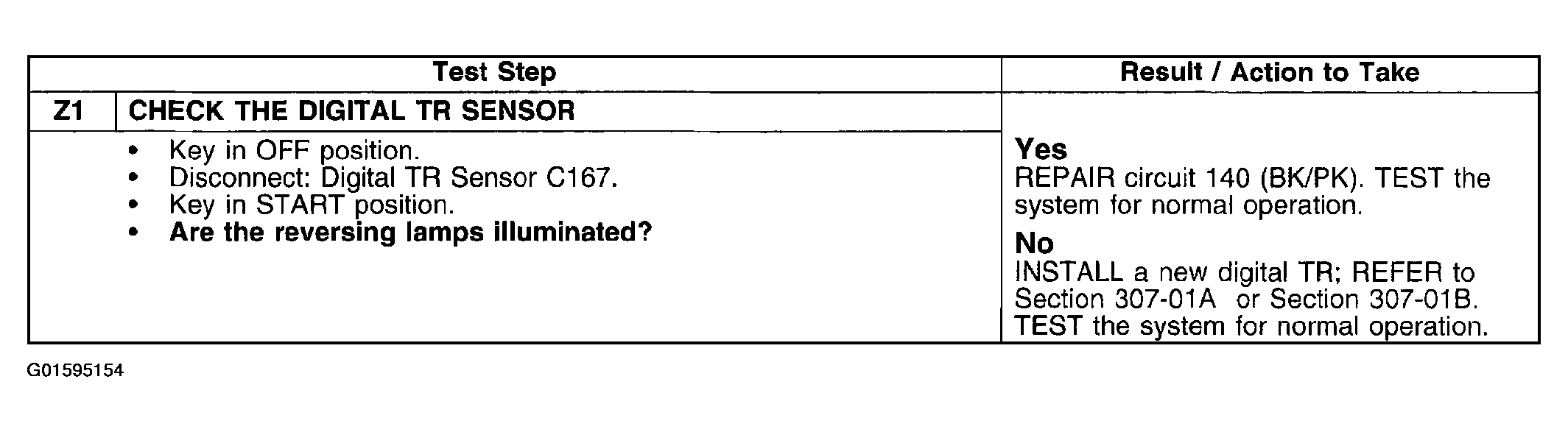

Fig 1: Pinpoint Test Z: Reversing Lamps On Continuously (Step Z1)
