Pinpoint Test Y: the Individual Reversing Lamp is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

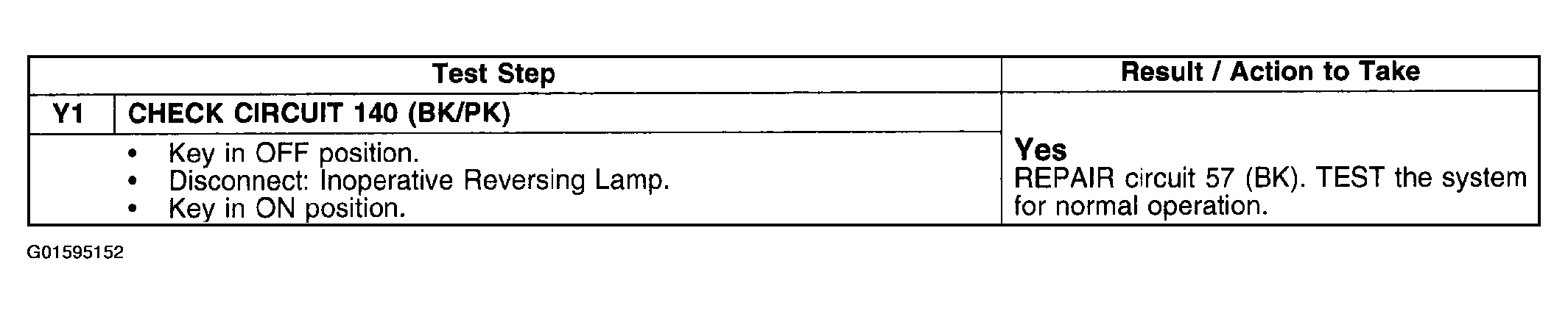

Fig 1: Pinpoint Test Y: Individual Reversing Lamp Inoperative (Step Y1)
G01595152Courtesy of FORD MOTOR CO.

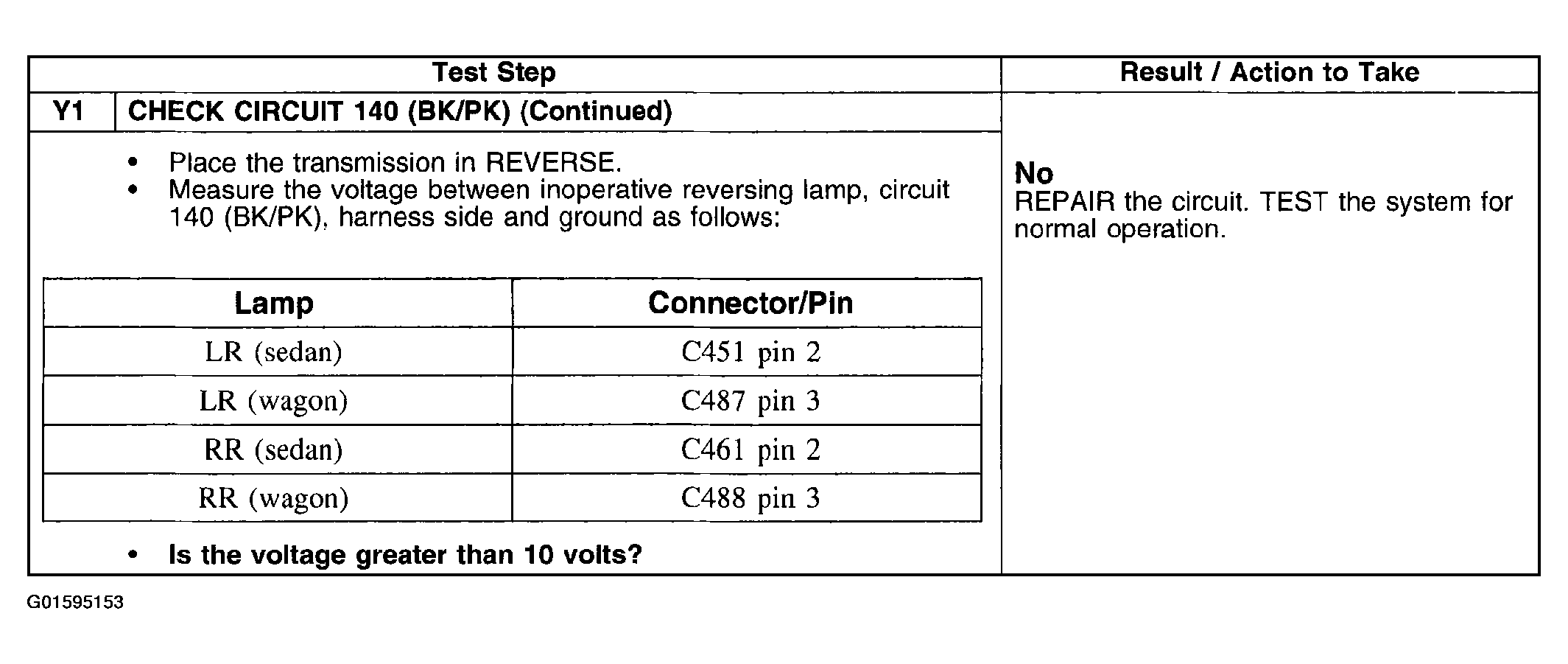

Fig 2: Pinpoint Test Y: Individual Reversing Lamp Inoperative (Step Y1 Continued)
G01595153Courtesy of FORD MOTOR CO.
