Pinpoint Test X: The Reversing Lamps Are Inoperative
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

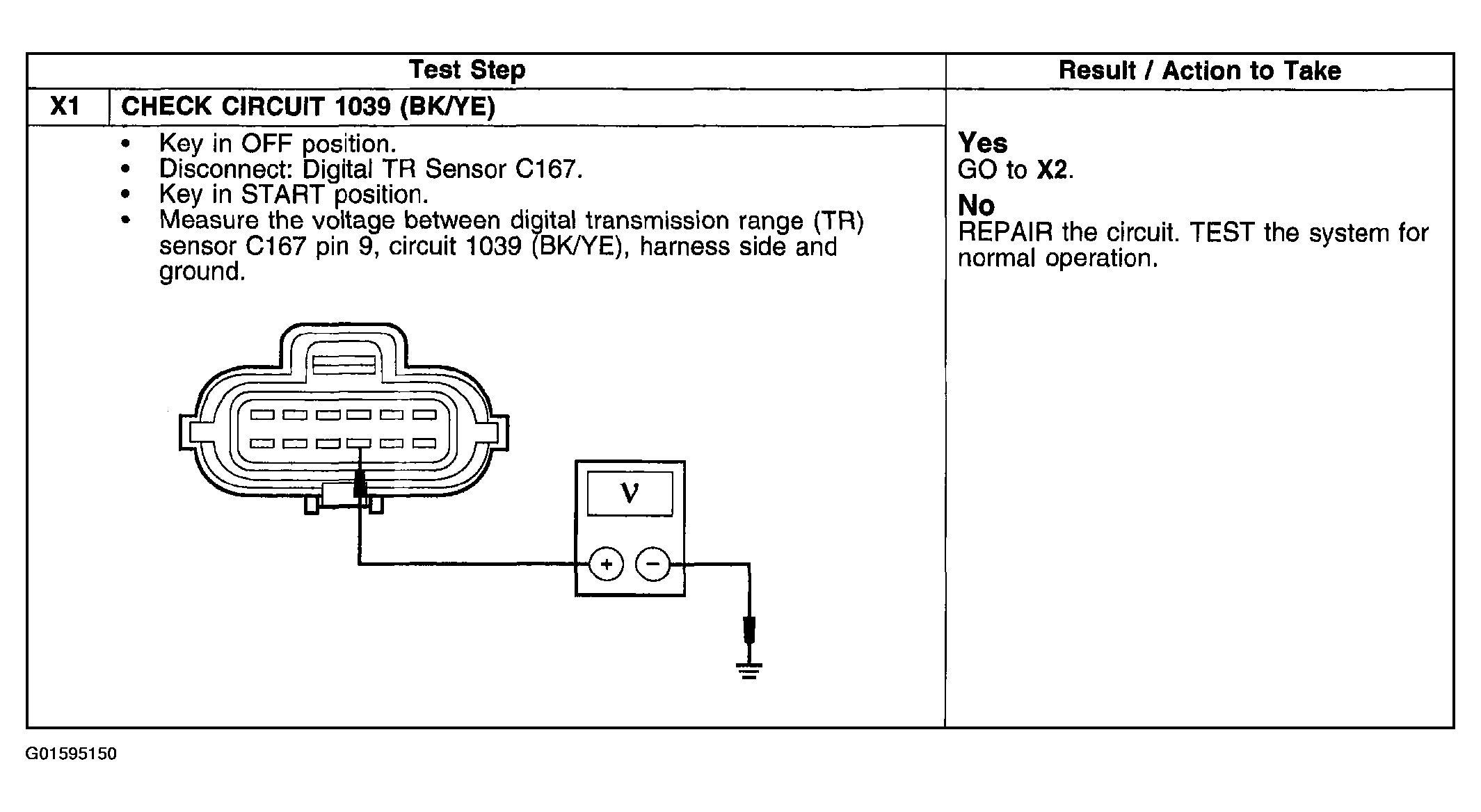

Fig 1: Pinpoint Test X: Reversing Lamps Inoperative (Step X1)
Courtesy of FORD MOTOR CO.

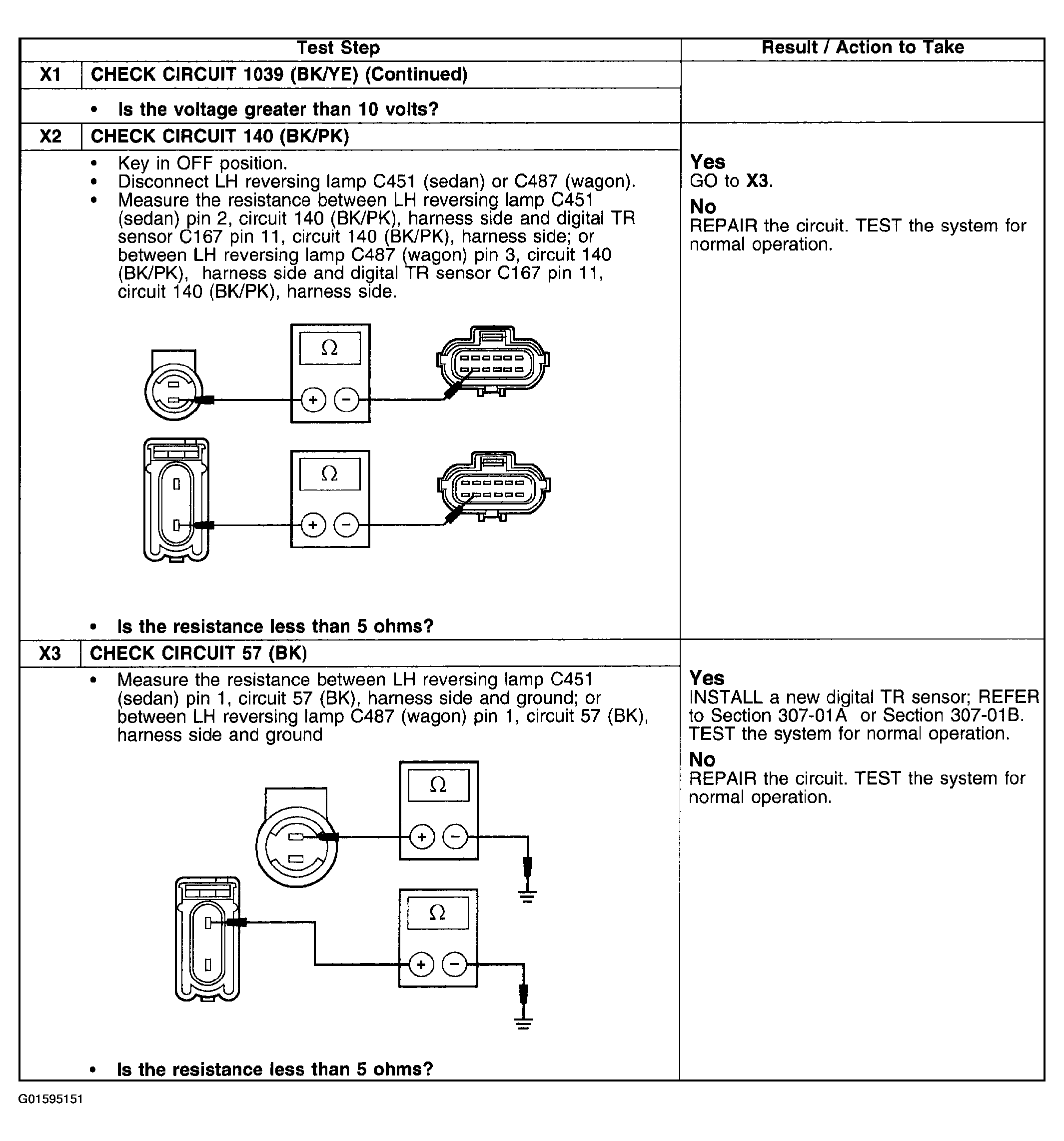

Fig 2: Pinpoint Test X: Reversing Lamps Inoperative (Step X1 Continued - X4)
