Pinpoint Test G: The Flash-To-Pass Feature Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

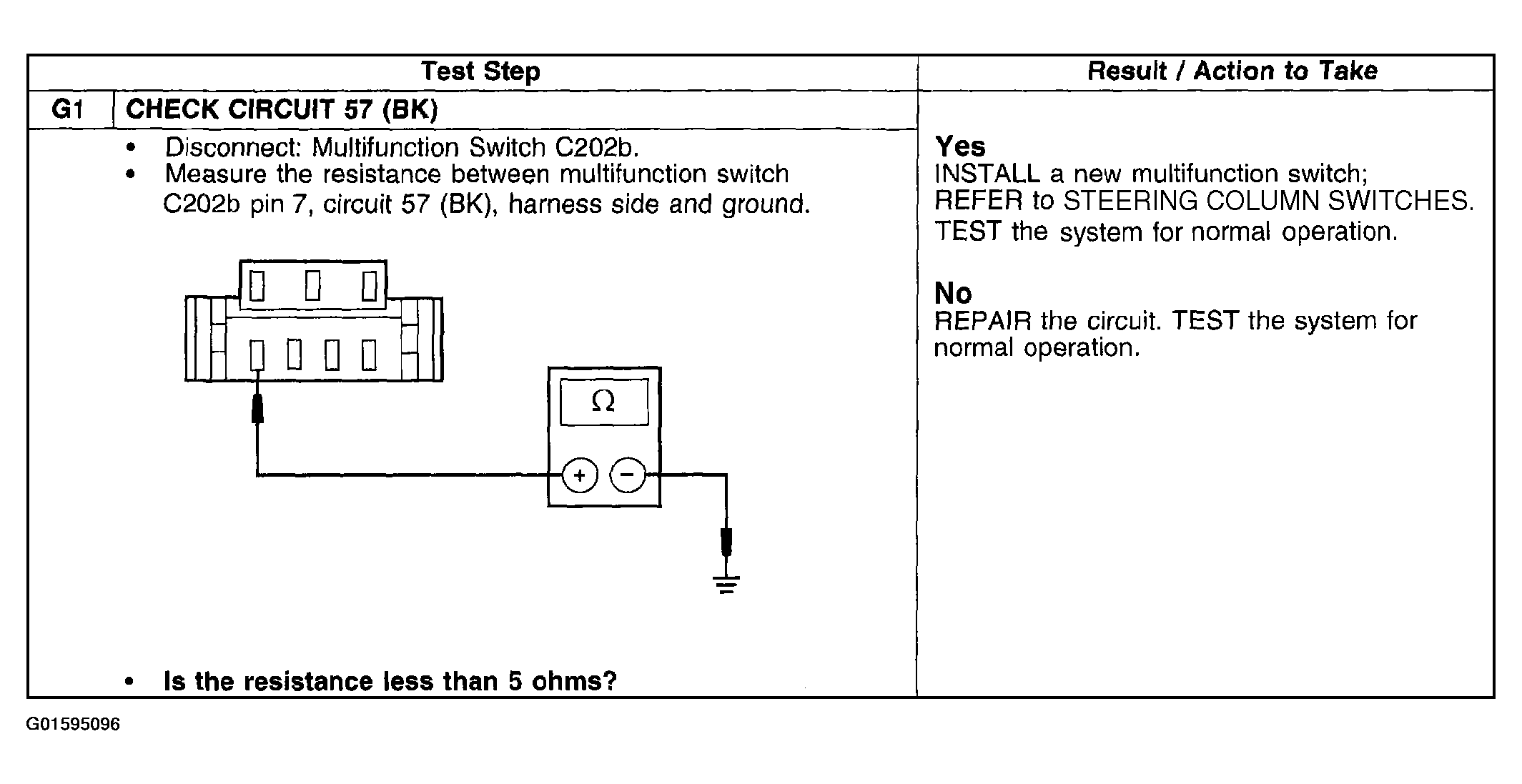

Fig 1: Pinpoint Test G: Flash-To-Pass Feature Inoperative (Step G1)
G01595096Courtesy of FORD MOTOR CO.
