WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

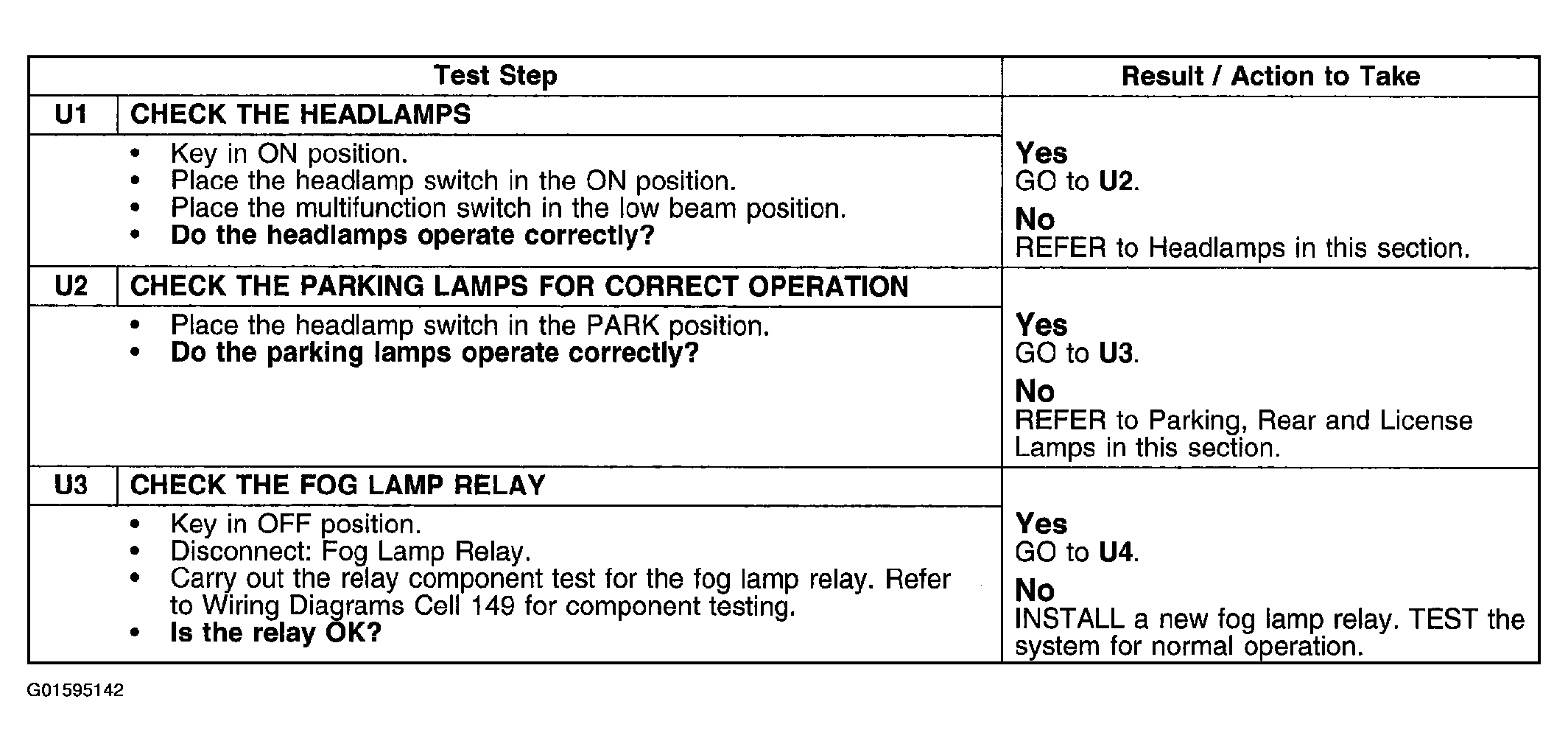

Fig 1: Pinpoint Test U: Fog Lamps Inoperative (Step U1 - U3)
Courtesy of FORD MOTOR CO.

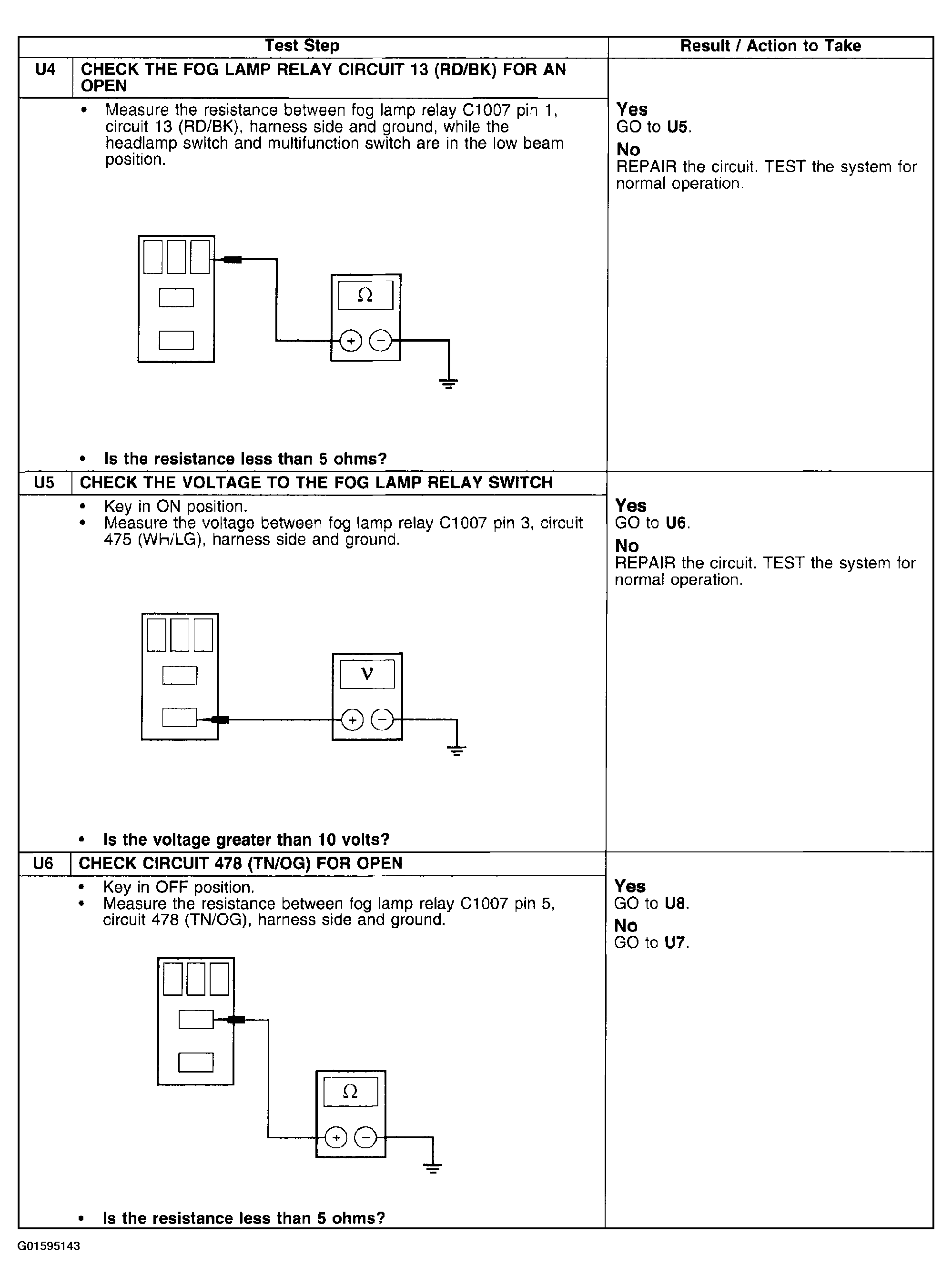

Fig 2: Pinpoint Test U: Fog Lamps Inoperative (Step U4 - U6)
Courtesy of FORD MOTOR CO.

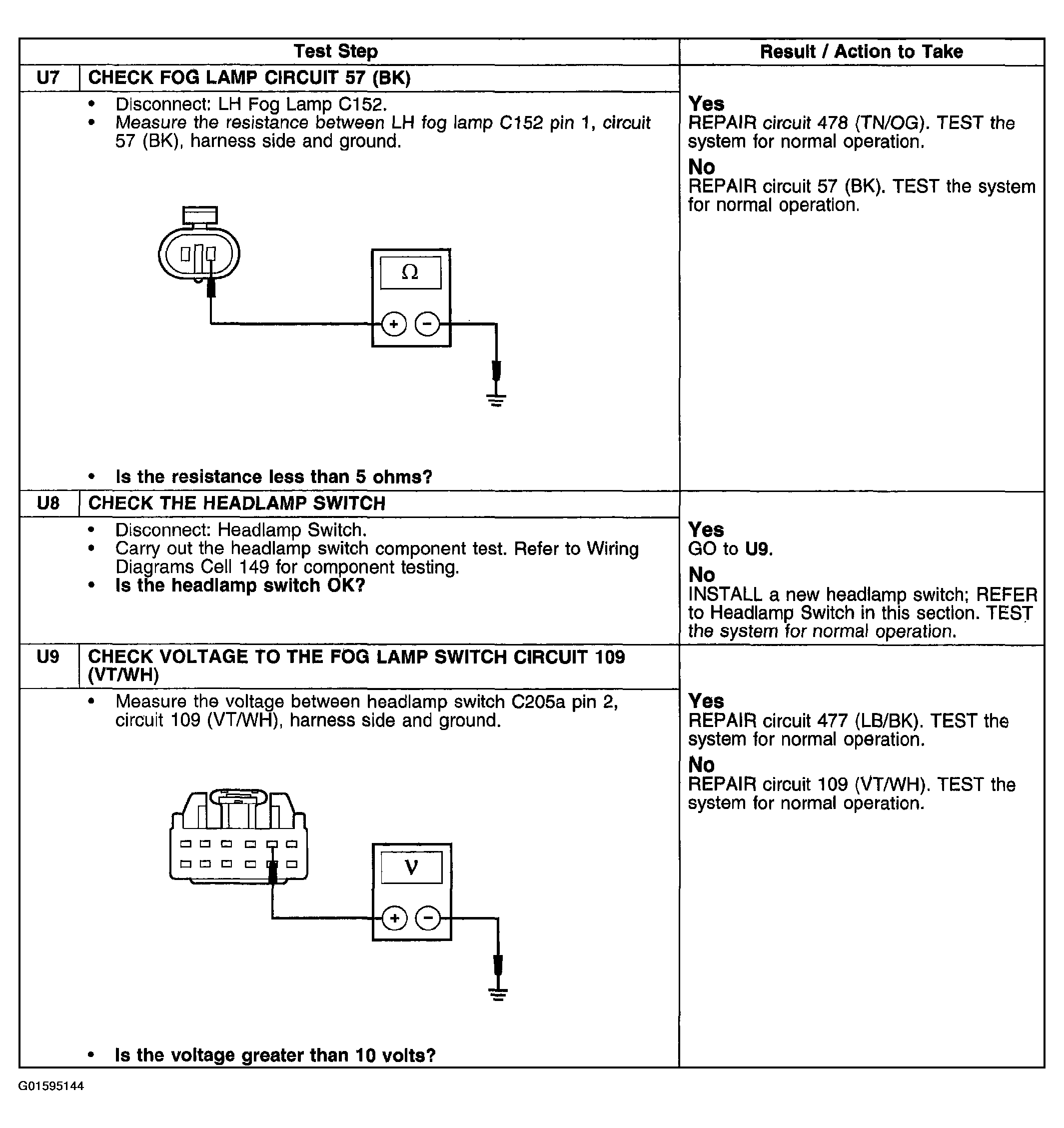

Fig 3: Pinpoint Test U: Fog Lamps Inoperative (Step U7 - U9)
