Inspection and Verification

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern by operating the fog lamps.
  2. Visually inspect for the following obvious signs of mechanical and electrical damage.

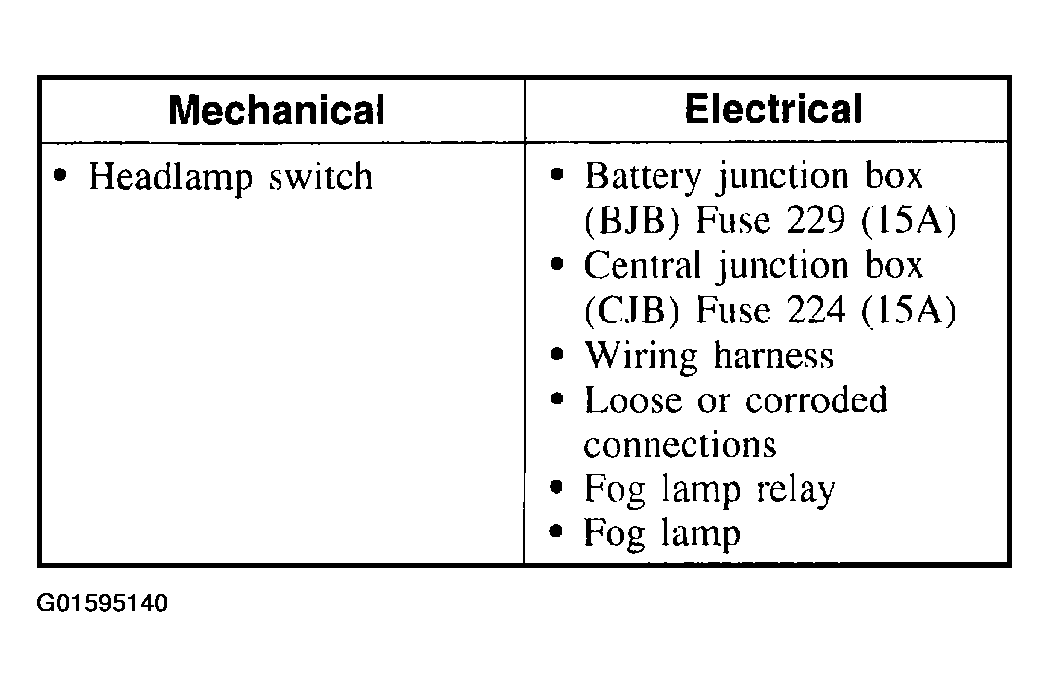

    Fig 1: Visual Inspection Chart
    G01595140Courtesy of FORD MOTOR CO.
  3. If the concern is not visually evident, determine the symptom and proceed to SYMPTOM CHART .
