Pinpoint Test K: The AUTOLAMPS Are On Continuously
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

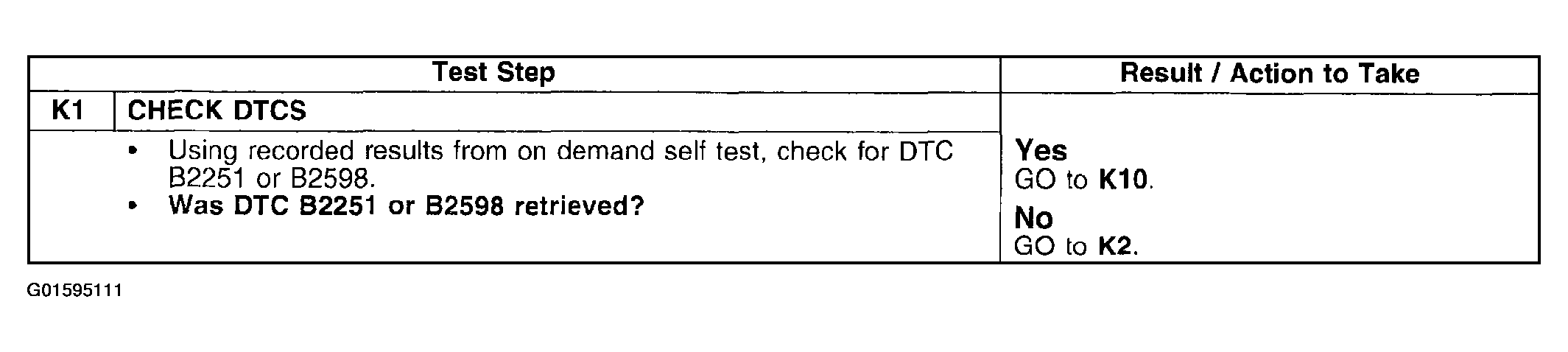

Fig 1: Pinpoint Test K: Autolamps On Continuously (Step K1)
Courtesy of FORD MOTOR CO.

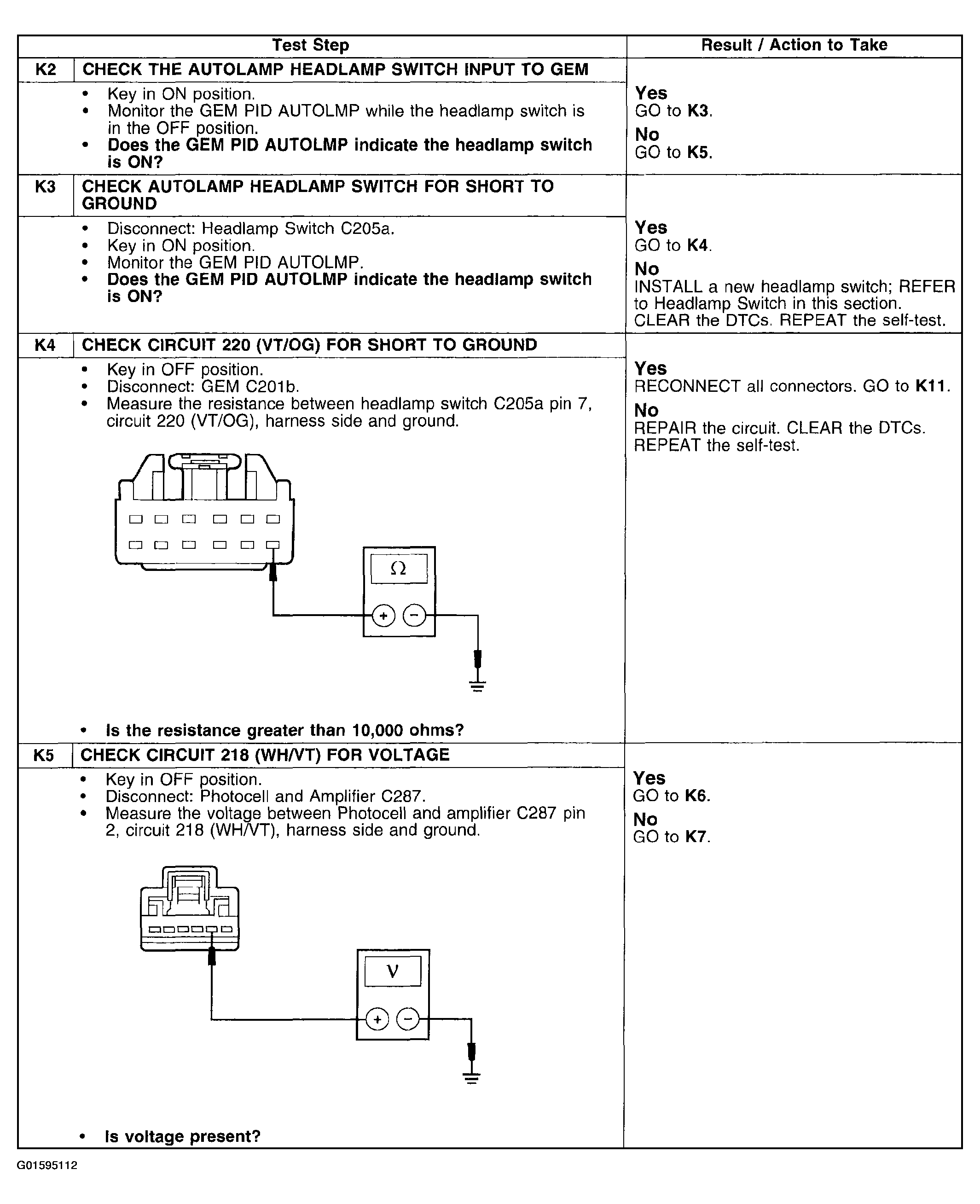

Fig 2: Pinpoint Test K: Autolamps On Continuously (Step K2 - K5)
Courtesy of FORD MOTOR CO.

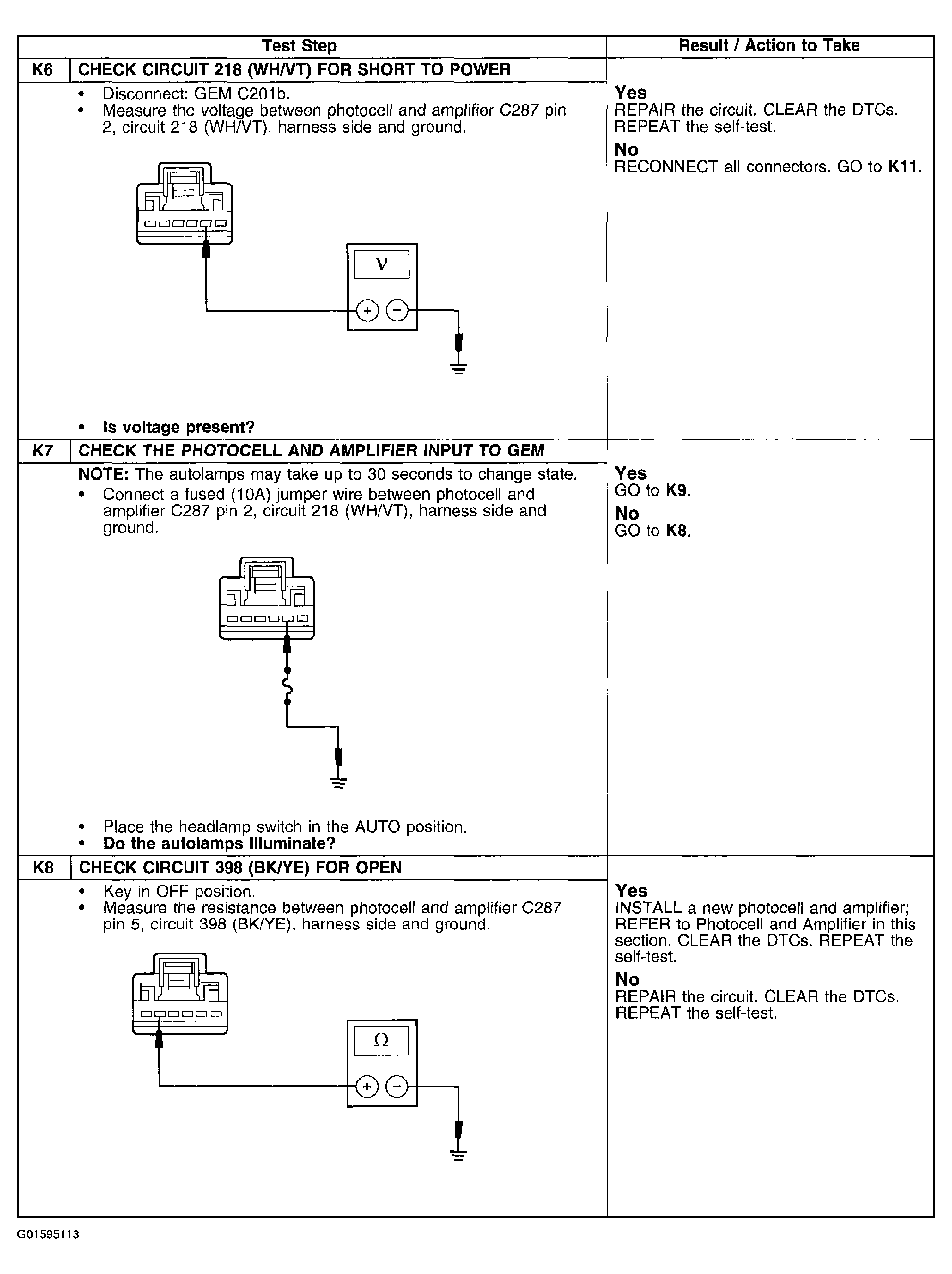

Fig 3: Pinpoint Test K: Autolamps On Continuously (Step K6 - K8)
Courtesy of FORD MOTOR CO.

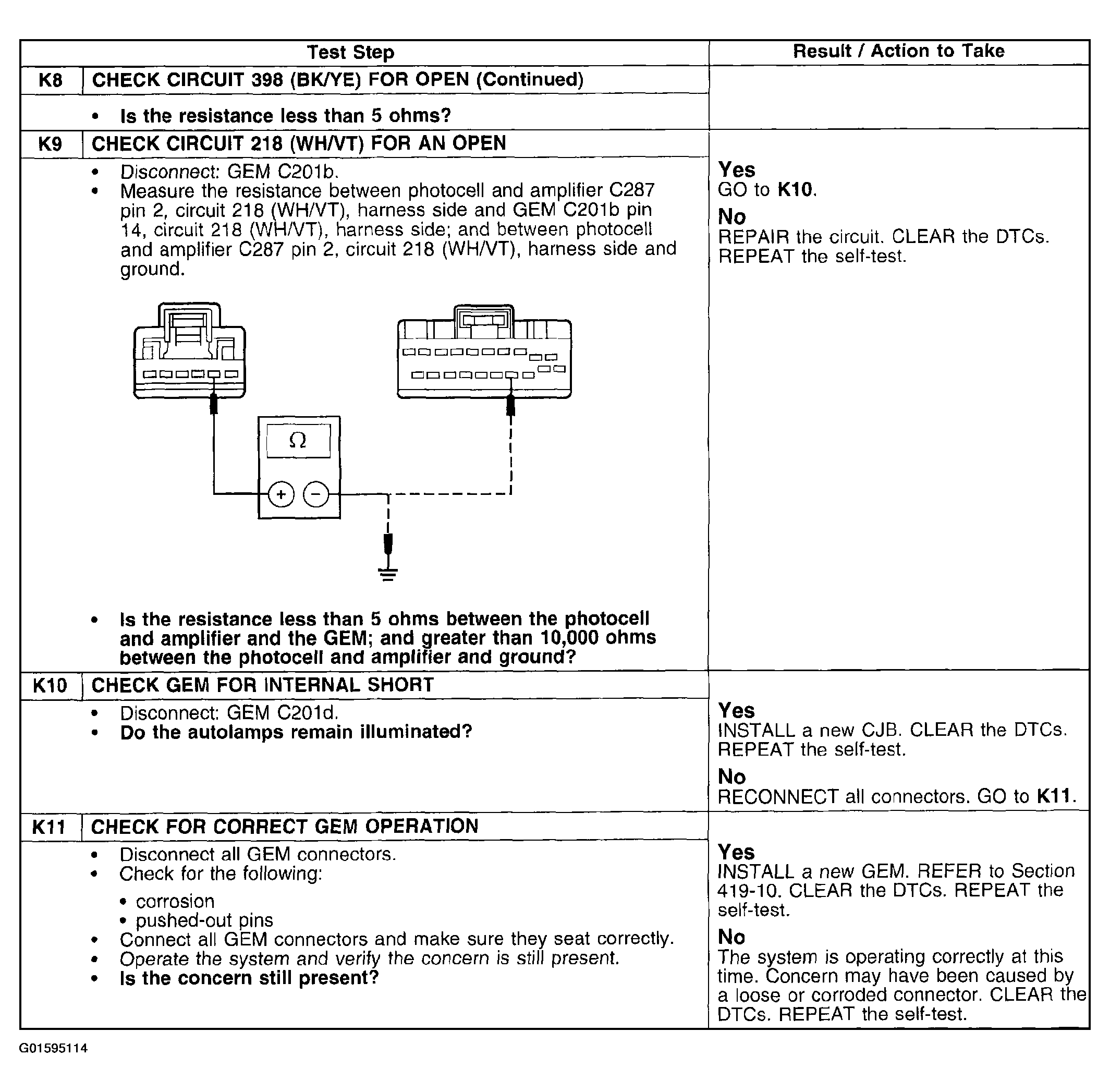

Fig 4: Pinpoint Test K: Autolamps On Continuously (Step K8 Continued - K11)
