Pinpoint Test J: The PARKLAMPS Are Inoperative With AUTOLAMPS On
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

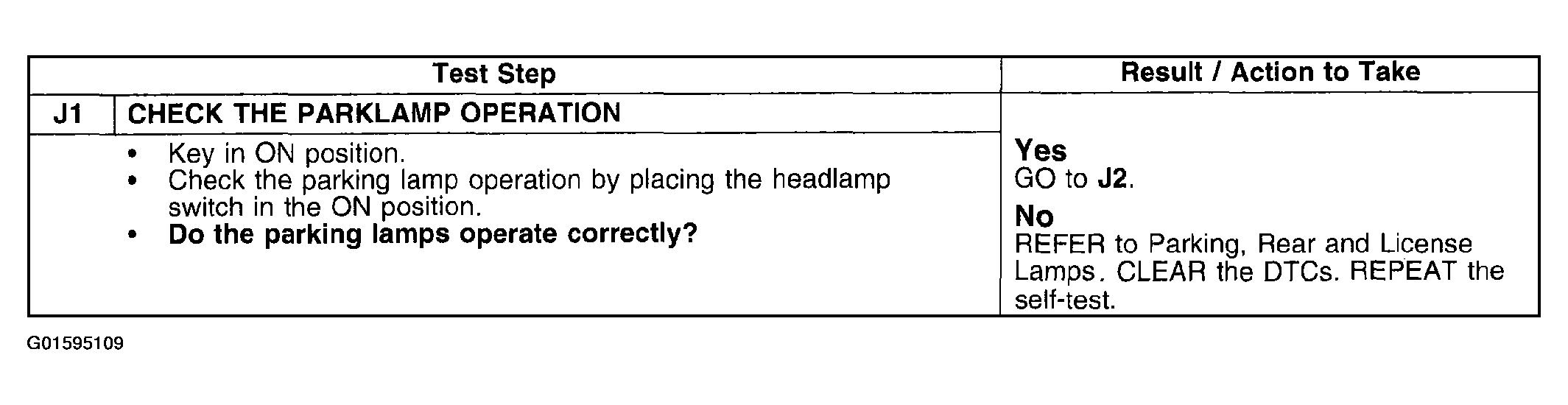

Fig 1: Pinpoint Test J: Parklamps Inoperative With Autolamps ON (Step J1)
Courtesy of FORD MOTOR CO.

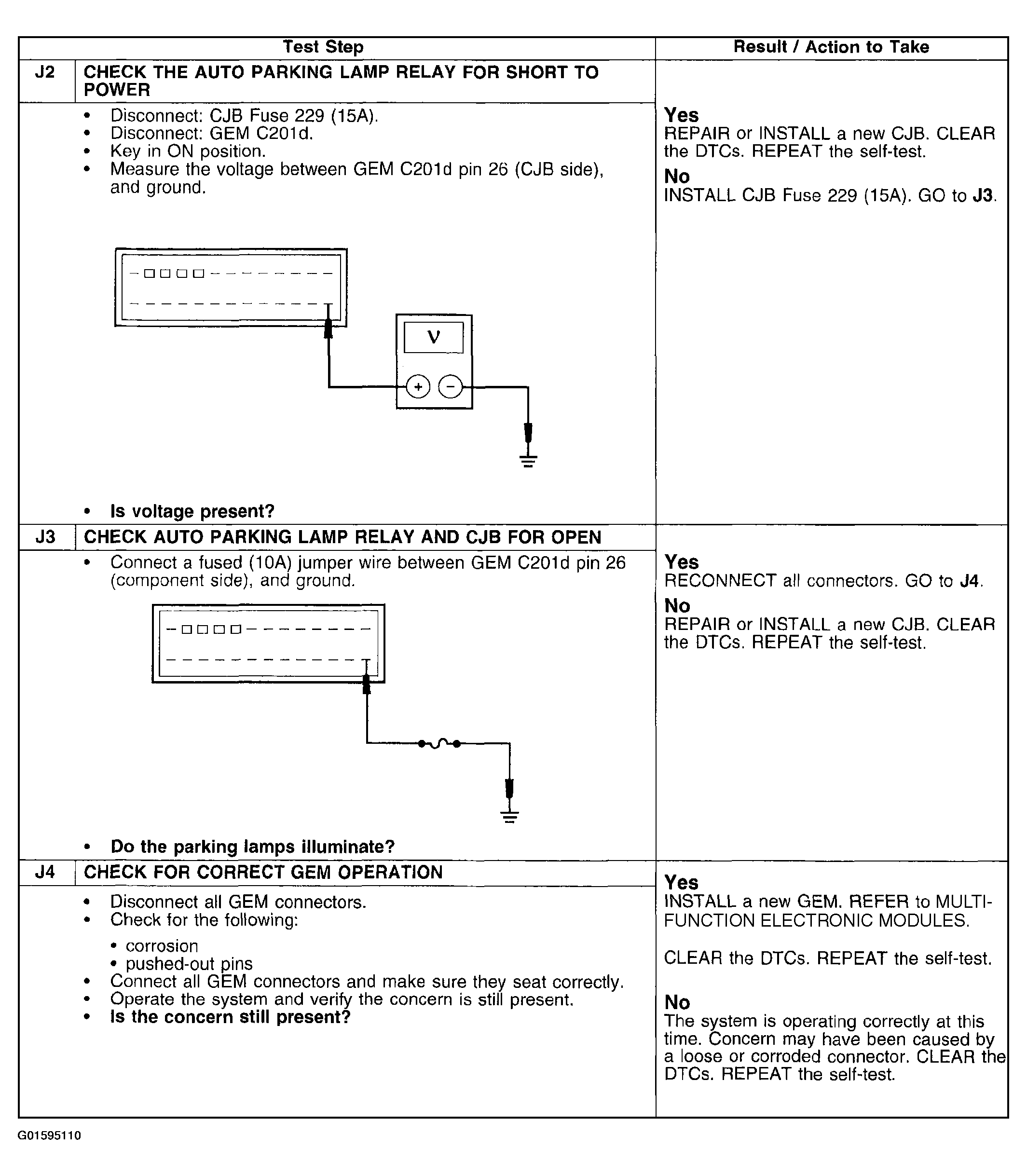

Fig 2: Pinpoint Test J: Parklamps Inoperative With Autolamps ON (Step J2 - J4)
