Pinpoint Test I: The Headlamps Are Inoperative With AUTOLAMPS On
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

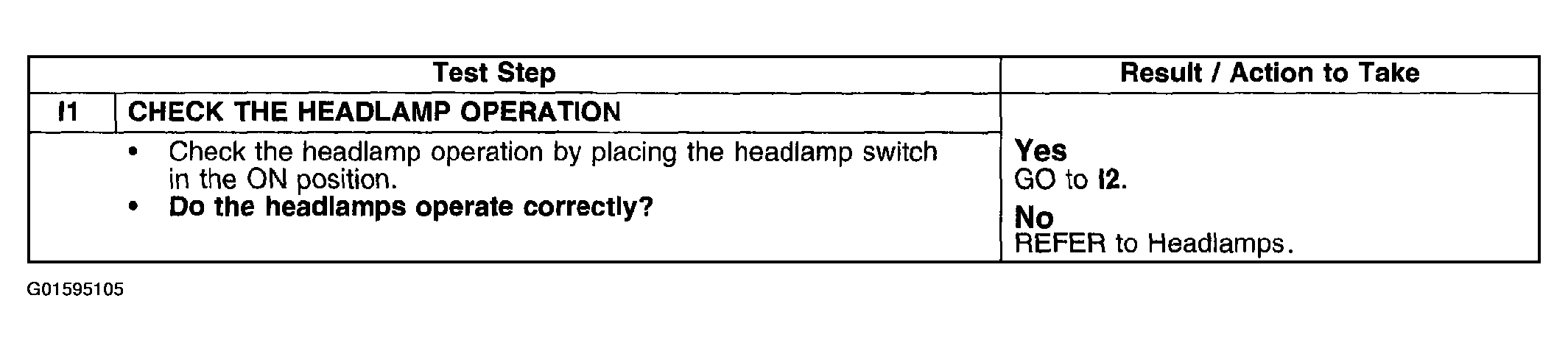

Fig 1: Pinpoint Test I: Headlamps Inoperative With Autolamps ON (Step I1)
Courtesy of FORD MOTOR CO.

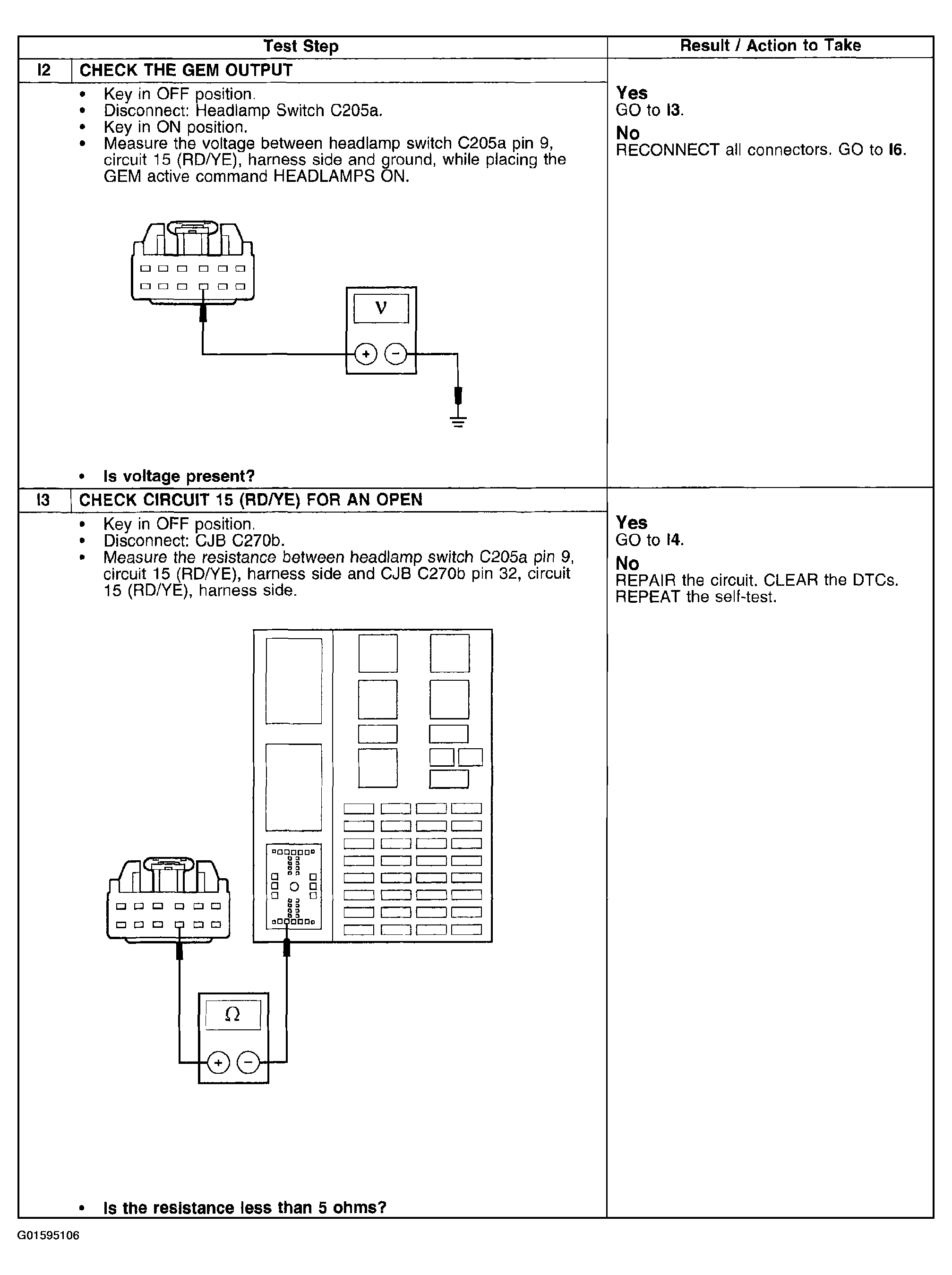

Fig 2: Pinpoint Test I: Headlamps Inoperative With Autolamps ON (Step I2 - I3)
Courtesy of FORD MOTOR CO.

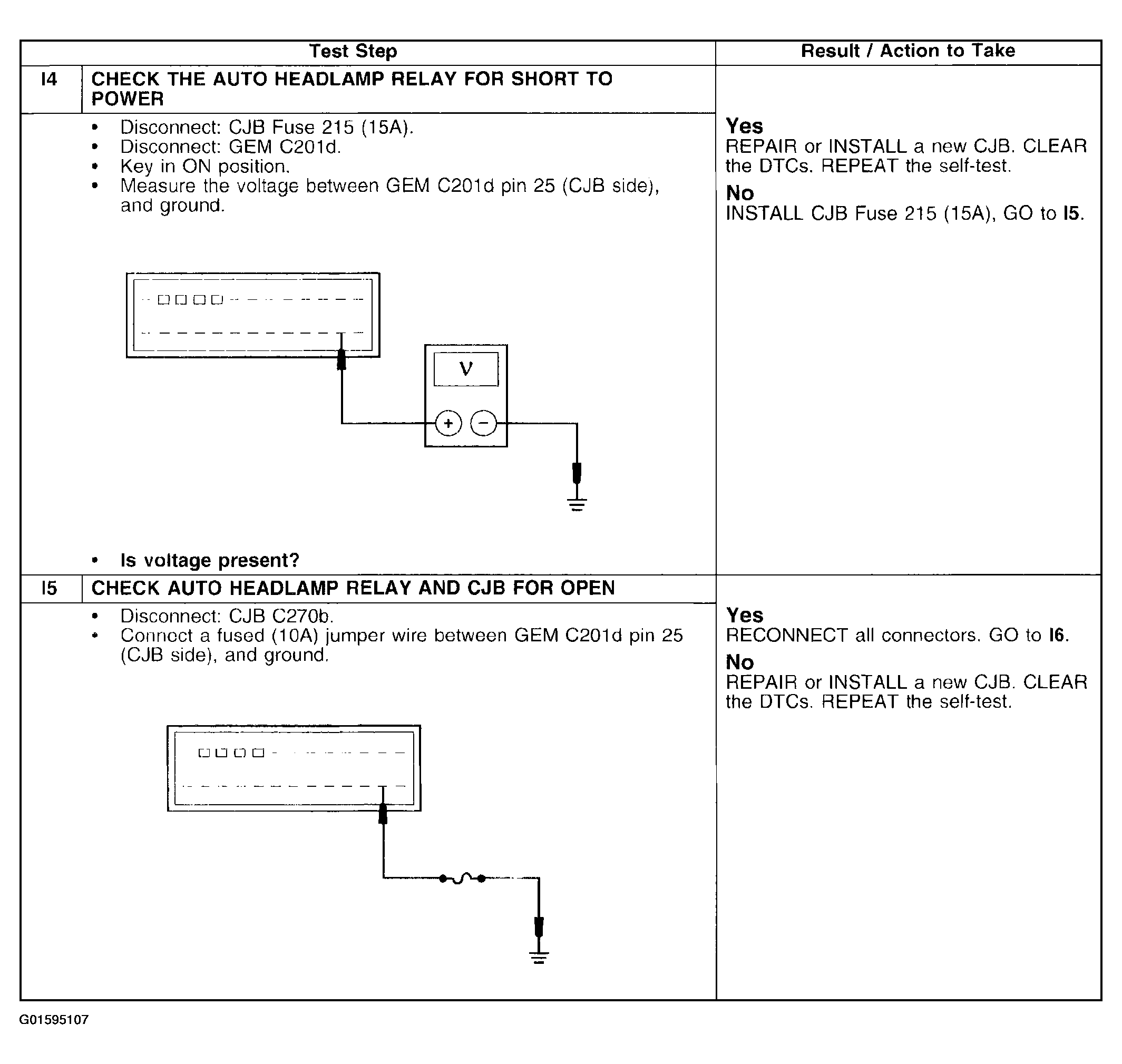

Fig 3: Pinpoint Test I: Headlamps Inoperative With Autolamps ON (Step I4 - I5)
Courtesy of FORD MOTOR CO.

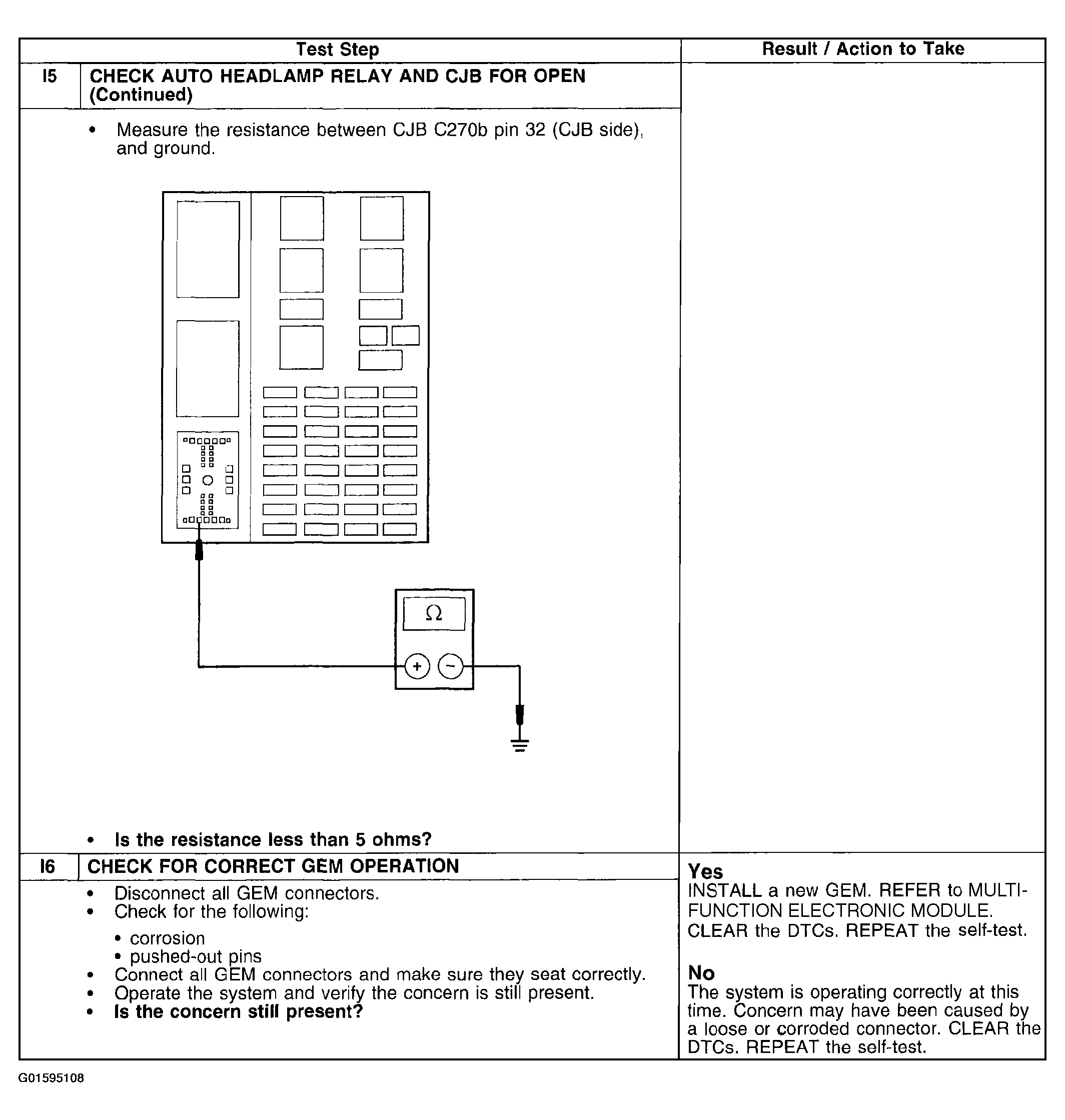

Fig 4: Pinpoint Test I: Headlamps Inoperative With Autolamps ON (Step I5 Continued - I6)
