Pinpoint Test H: The AUTOLAMPS Are Inoperative - All Auto Head/Park Lamps Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

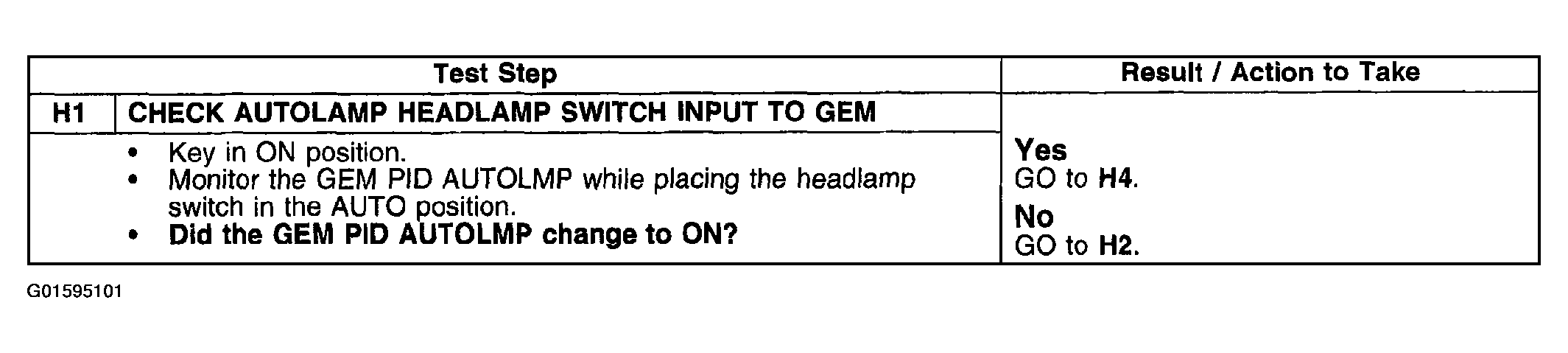

Fig 1: Pinpoint Test H: Autolamps Inoperative - All Auto Head/Park Lamps Inoperative (Step H1)

Courtesy of FORD MOTOR CO.

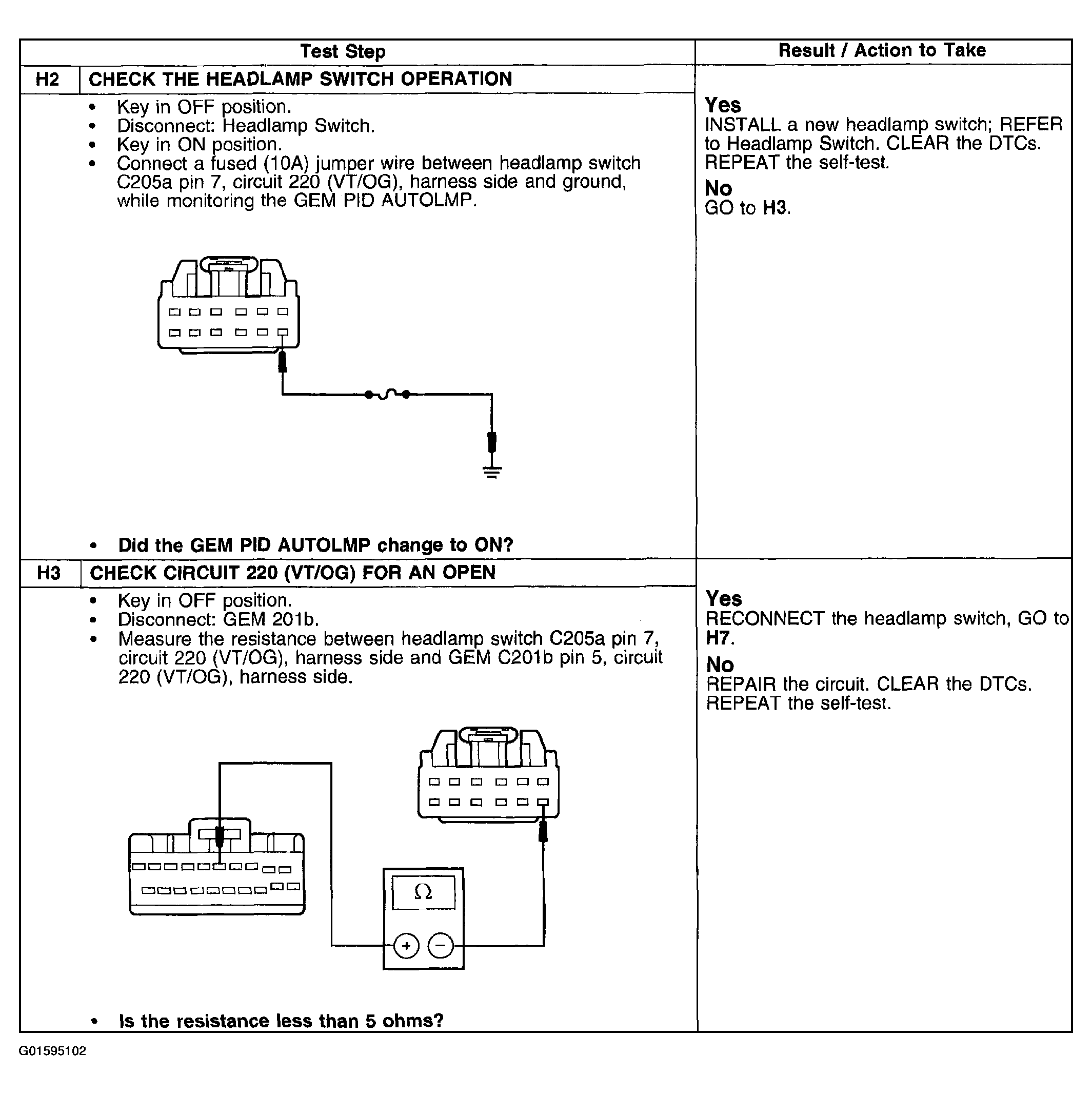

Fig 2: Pinpoint Test H: Autolamps Inoperative - All Auto Head/Park Lamps Inoperative (Step H2 - H3)

Courtesy of FORD MOTOR CO.

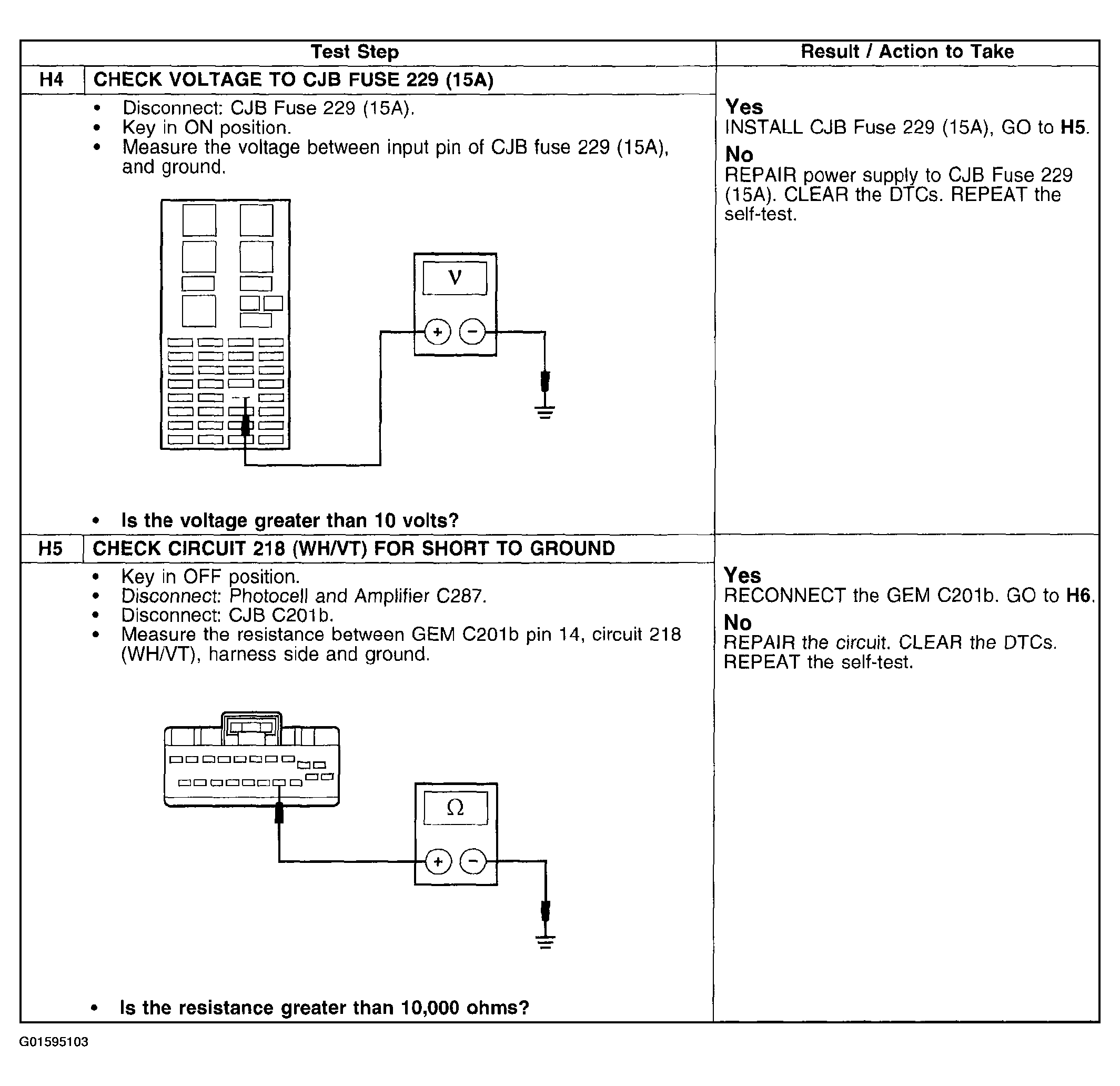

Fig 3: Pinpoint Test H: Autolamps Inoperative - All Auto Head/Park Lamps Inoperative (Step H4 - H5)

Courtesy of FORD MOTOR CO.

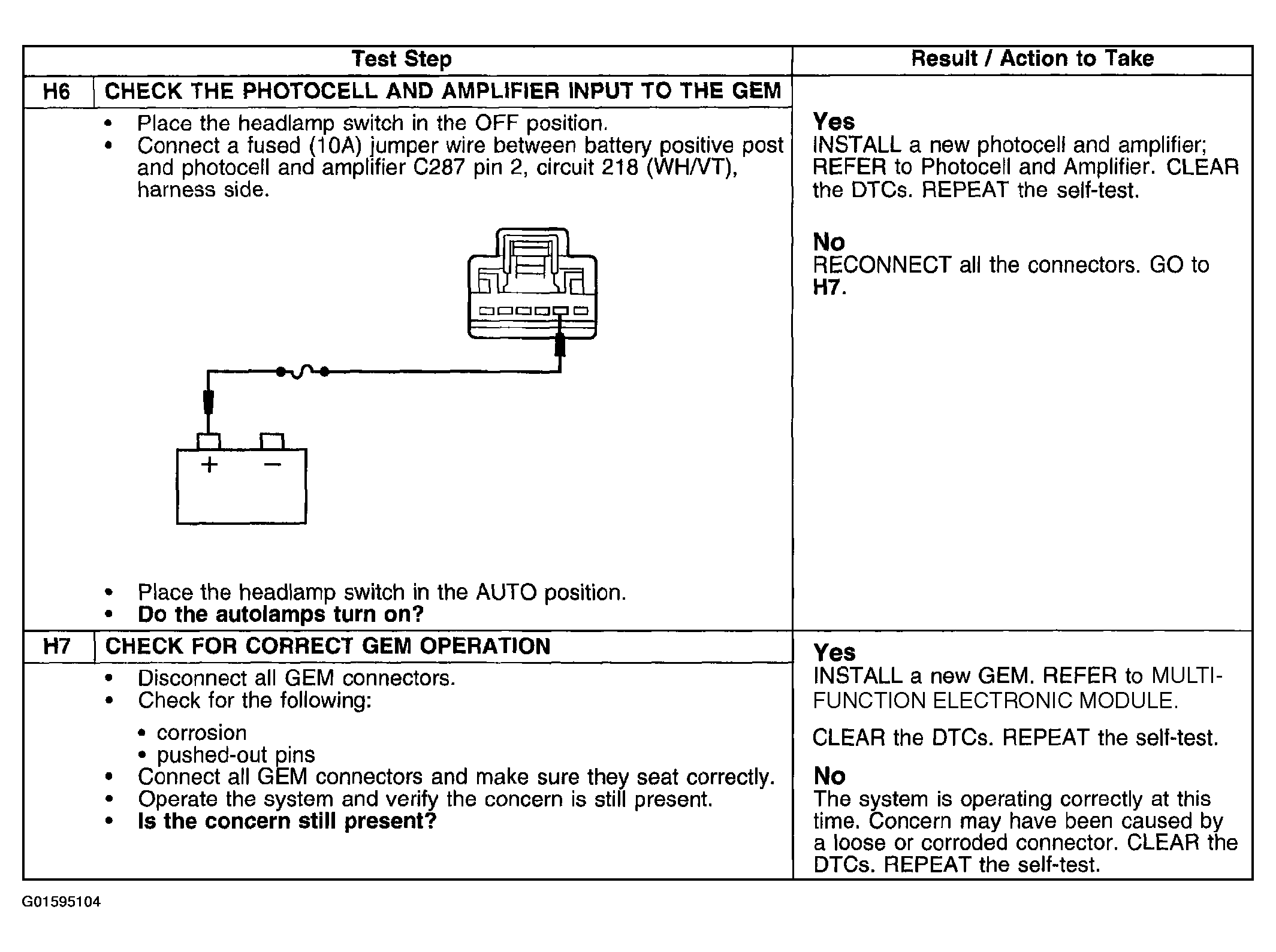

Fig 4: Pinpoint Test H: Autolamps Inoperative - All Auto Head/Park Lamps Inoperative (Step H6 - H7)

Courtesy of FORD MOTOR CO.
