Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

NOTE: Manual A/C integrated control panel shown, electronic automatic control panel (EATC) similar.

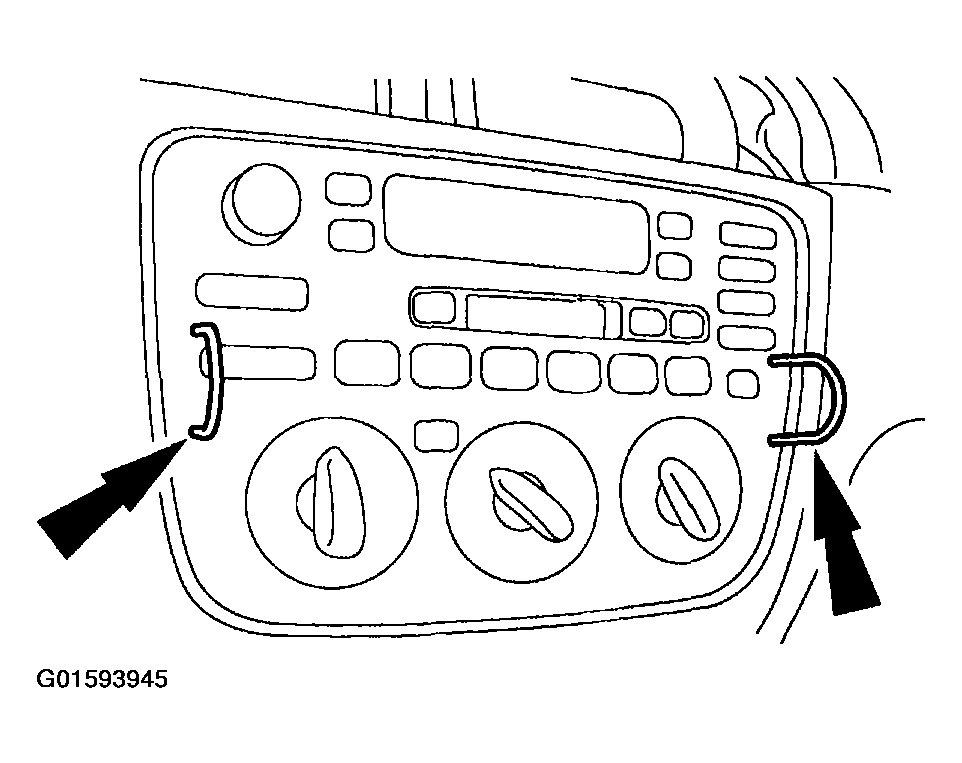

Fig 1: Pulling Integrated Control Panel (ICP) Out Of Instrument Panel

Courtesy of FORD MOTOR CO.

Using the radio removing tool, pull the integrated control panel (ICP) out of the instrument panel.
Remove the ICP.
- Disconnect the electrical connectors.

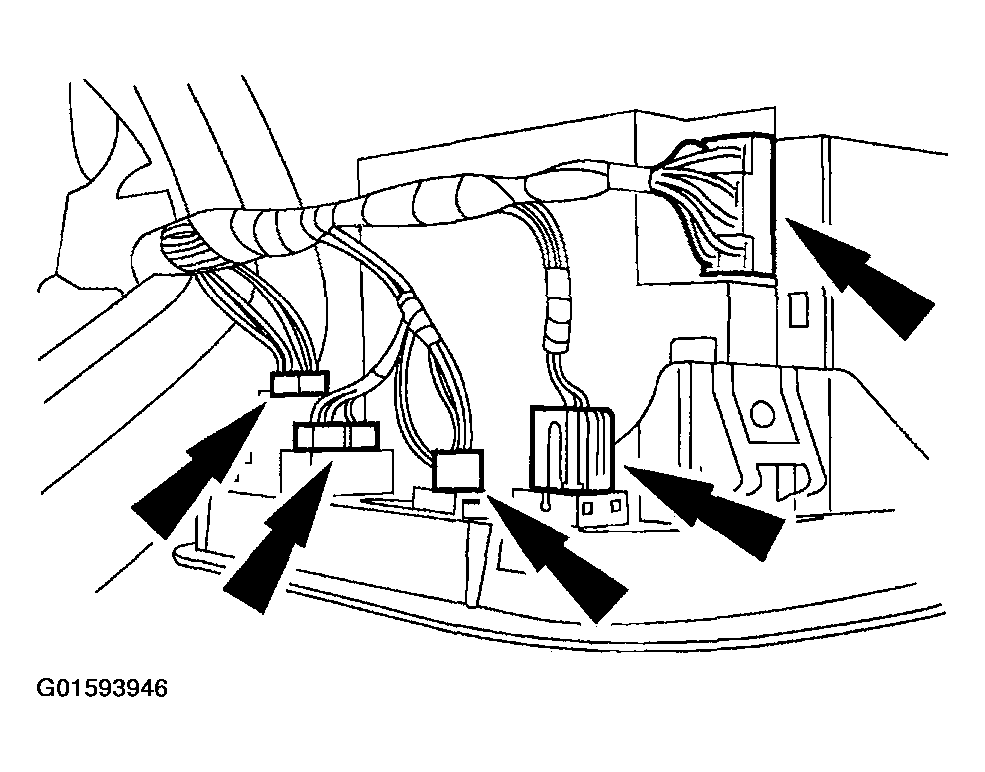

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
