Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the luggage compartment scuff plate.
  3. Remove the LH luggage compartment trim panel.
  4. Remove the CD changer.
    1. Disconnect the electrical connector.
    2. Remove the screws.

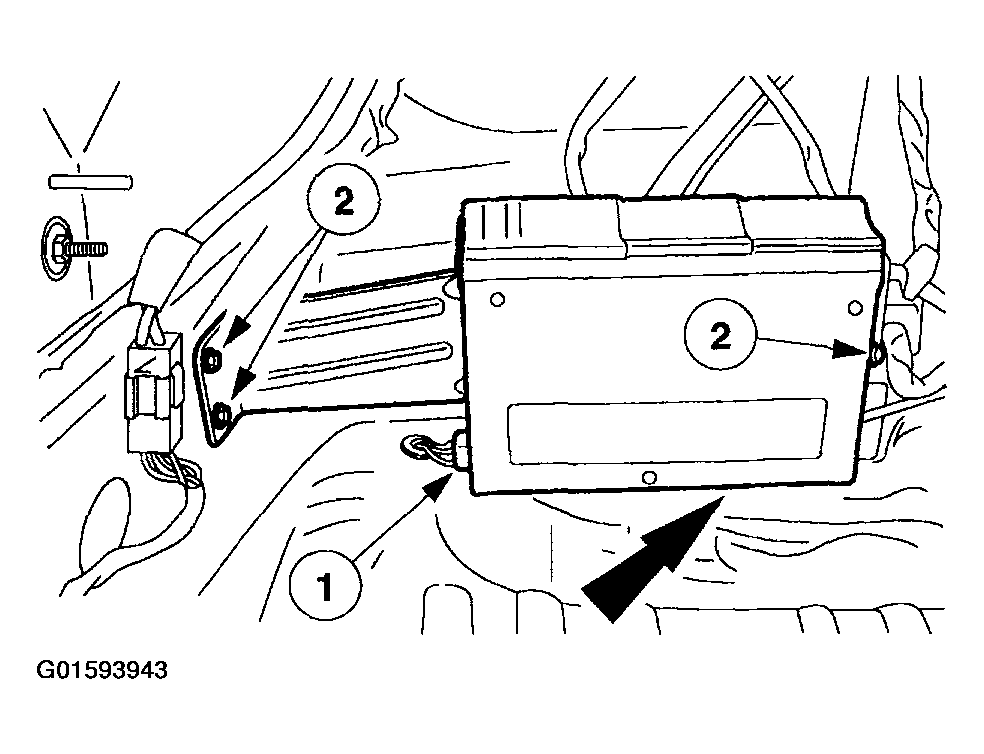

    Fig 1: Removing CD Changer
    G01593943Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
