Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the digital compact disc changer cover.

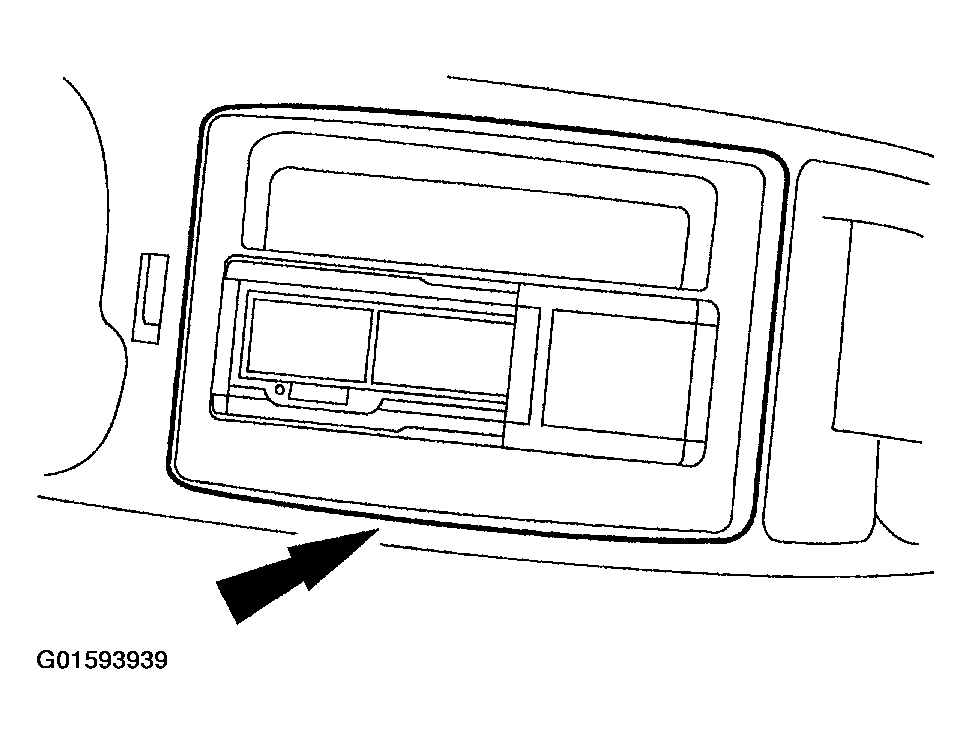

    Fig 1: Removing Digital Compact Disc Changer Cover
    G01593939Courtesy of FORD MOTOR CO.
  3. Remove the screws and the compact disc changer.

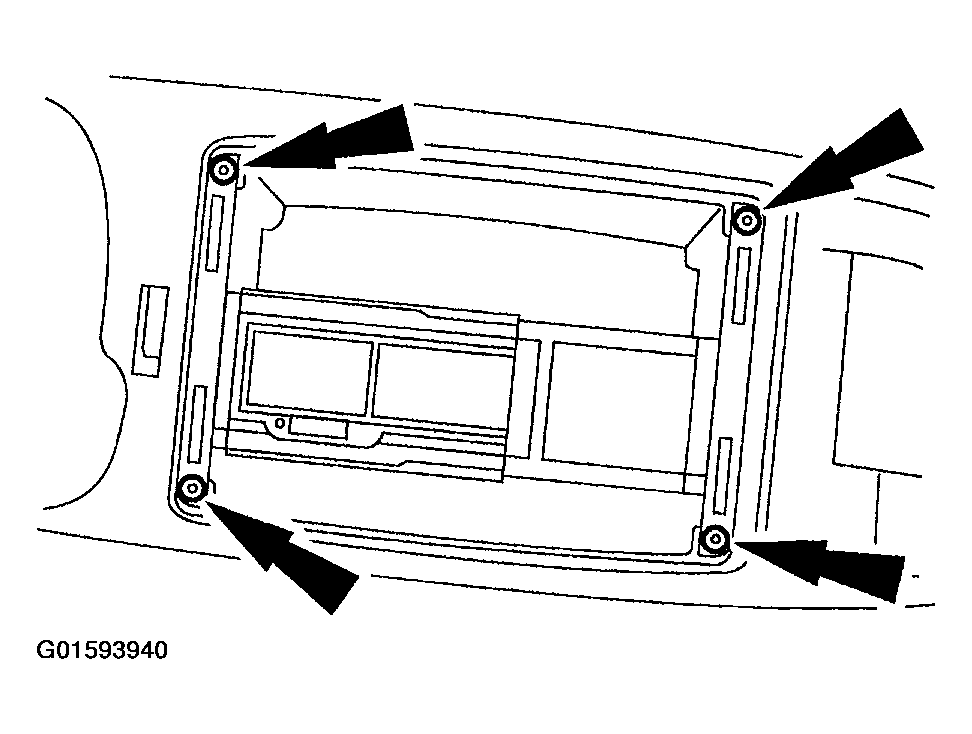

    Fig 2: Removing Screws And Compact Disc Changer
    G01593940Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
