Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the LH spare tire trim panel.
  3. Remove the spare tire.
  4. Disconnect the wiring connectors and the antenna lead-in cable.
  5. Remove the audio unit.
    1. Remove the two retaining screws.
    2. Remove the retaining nut.
    3. Remove the audio unit.

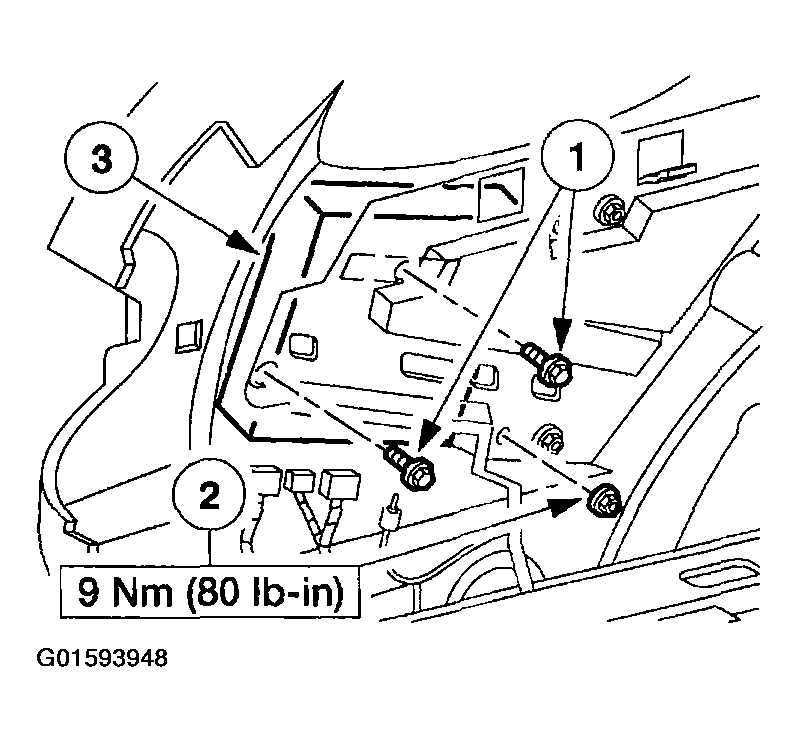

    Fig 1: Removing Audio Unit
    G01593948Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
