Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the LH luggage compartment trim panel.
  3. Disconnect the wiring connectors and the antenna lead in cable from the audio unit.
  4. Remove the retaining nuts and remove the audio unit.

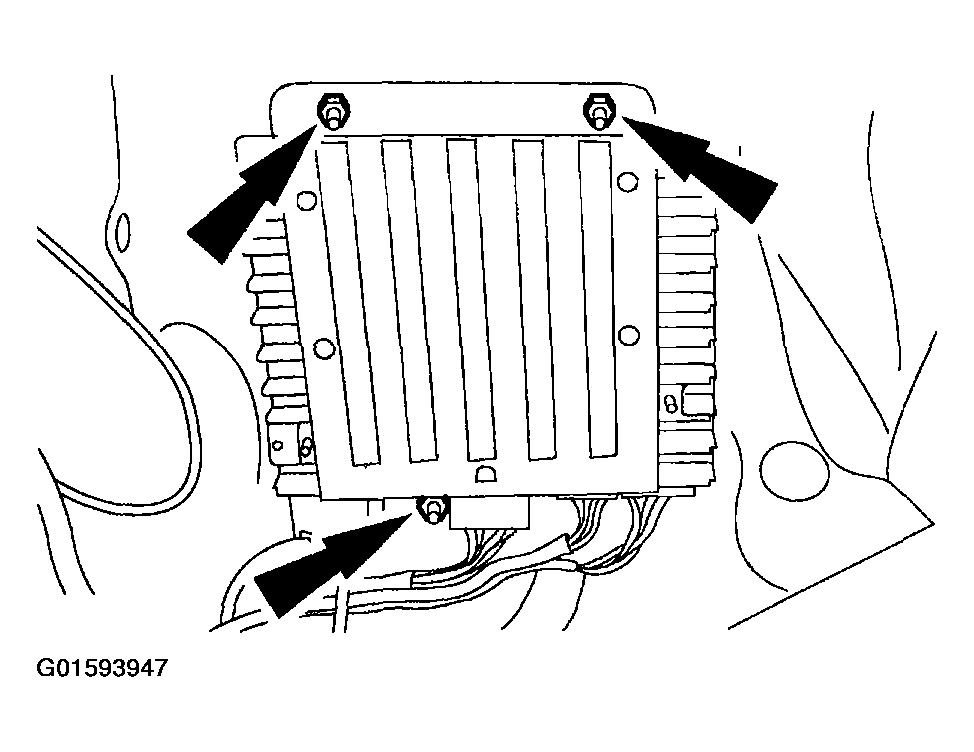

    Fig 1: Removing Retaining Nuts And Removing Audio Unit
    G01593947Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
