Pinpoint Test M: Loud Popping Sound When Cycling The Ignition Switch

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

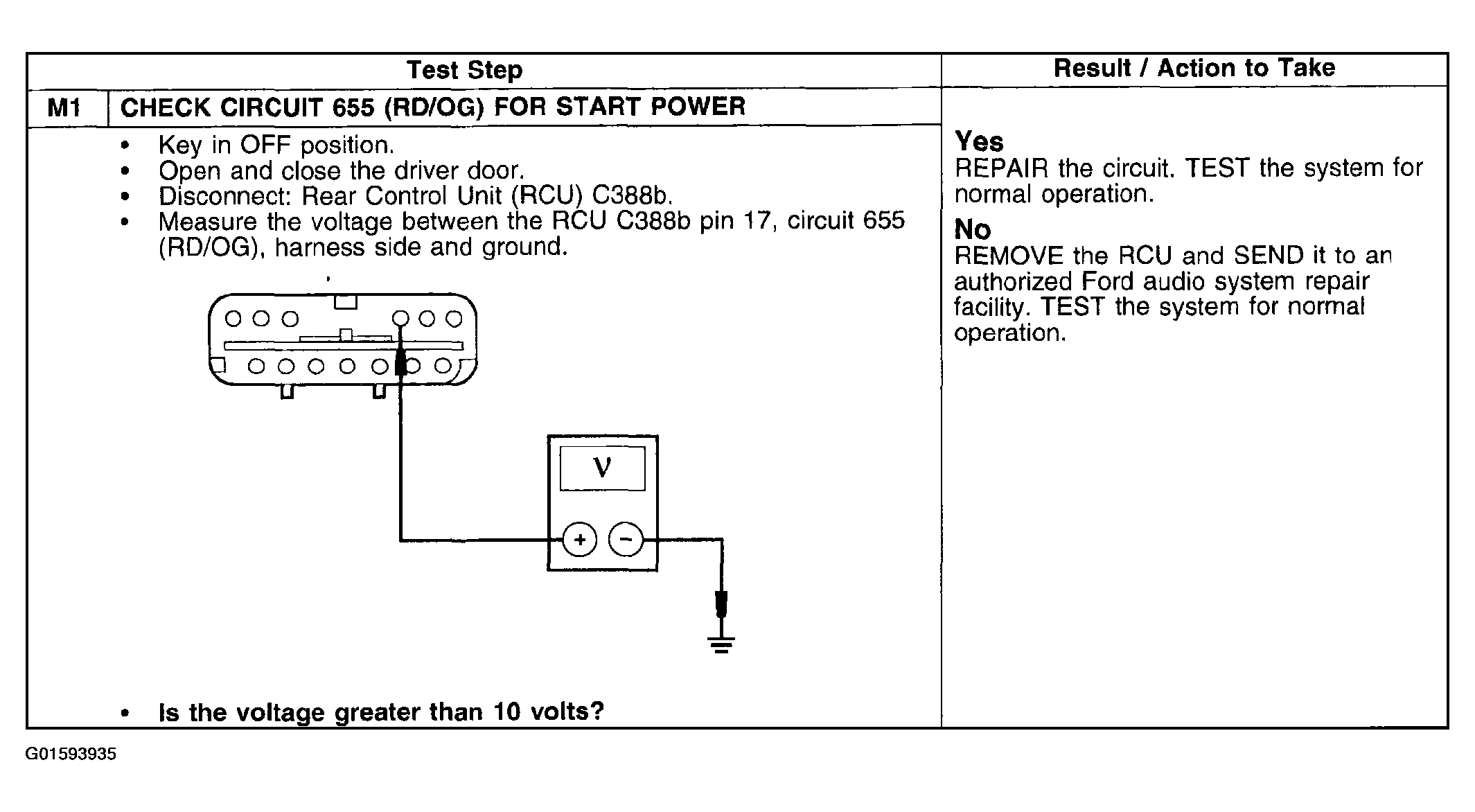

Fig 1: Pinpoint Test M: Loud Popping Sound When Cycling Ignition Switch (Step M1)
G01593935Courtesy of FORD MOTOR CO.
