Pinpoint Test K: No Sound From One Or More Speakers (Not All Speakers)
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

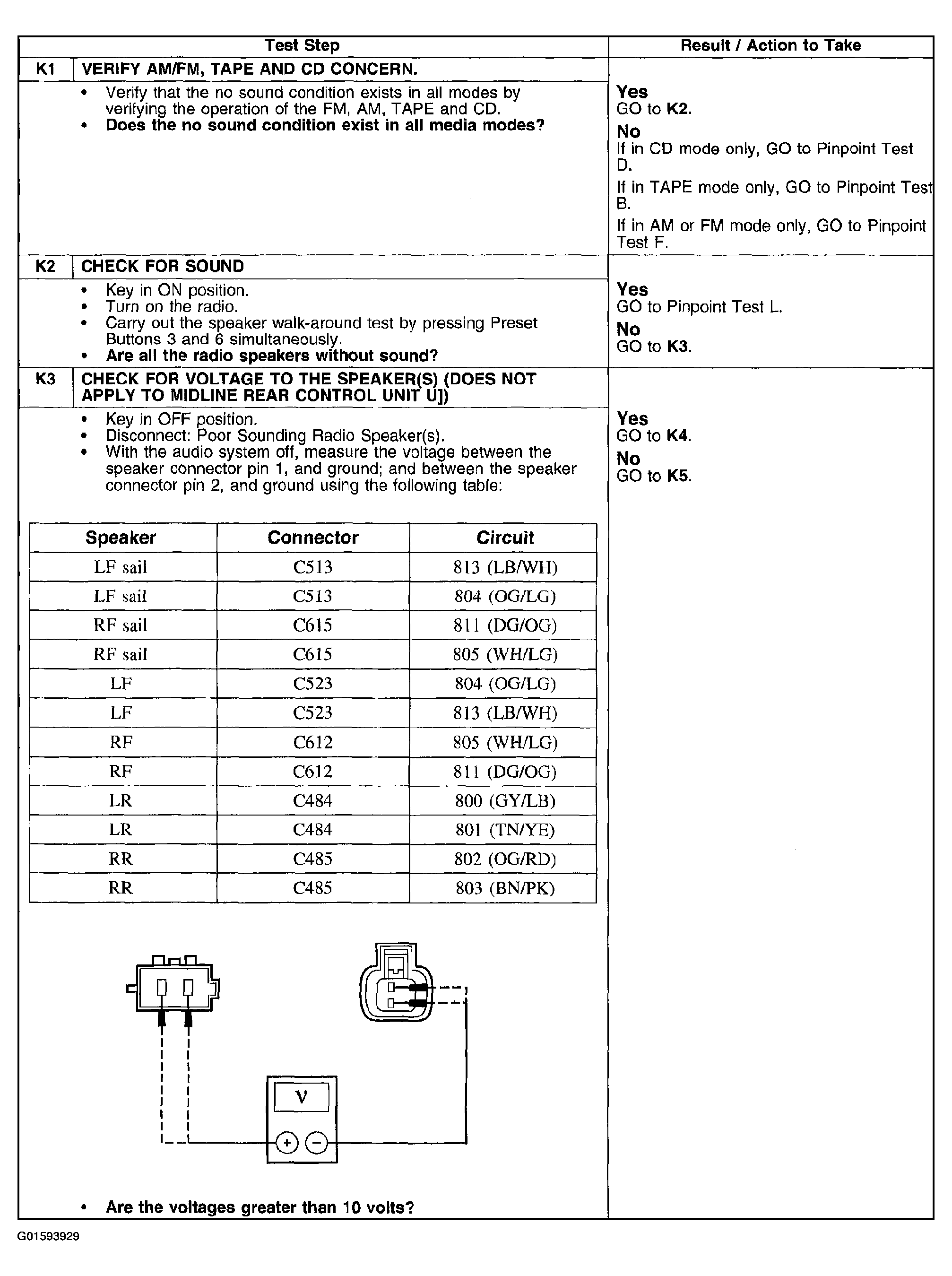

Fig 1: Pinpoint Test K: No Sound From One Or More Speakers (Not All Speakers) (Step K1 - K3)
Courtesy of FORD MOTOR CO.

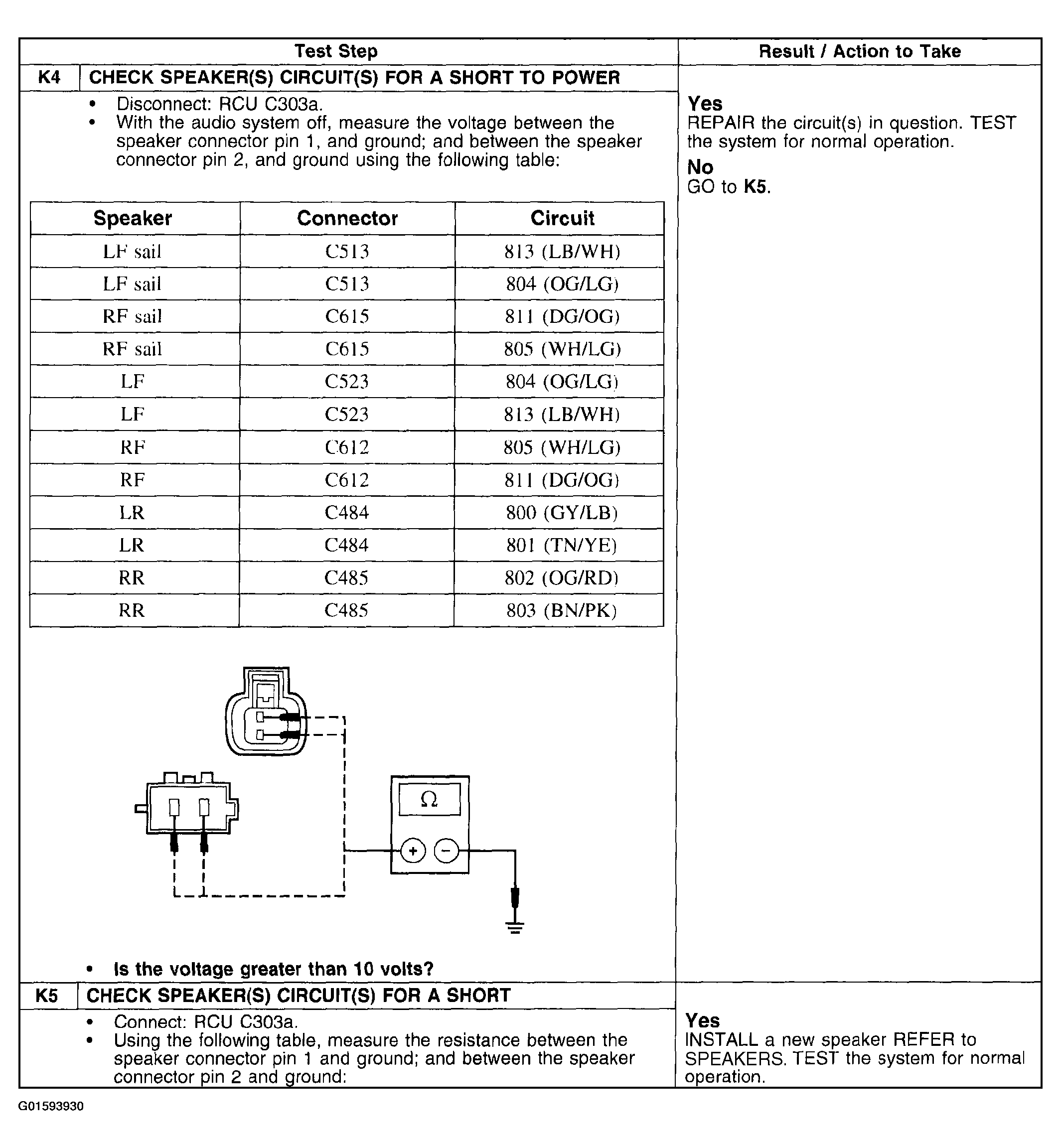

Fig 2: Pinpoint Test K: No Sound From One Or More Speakers (Not All Speakers) (Step K4 - K5)
Courtesy of FORD MOTOR CO.

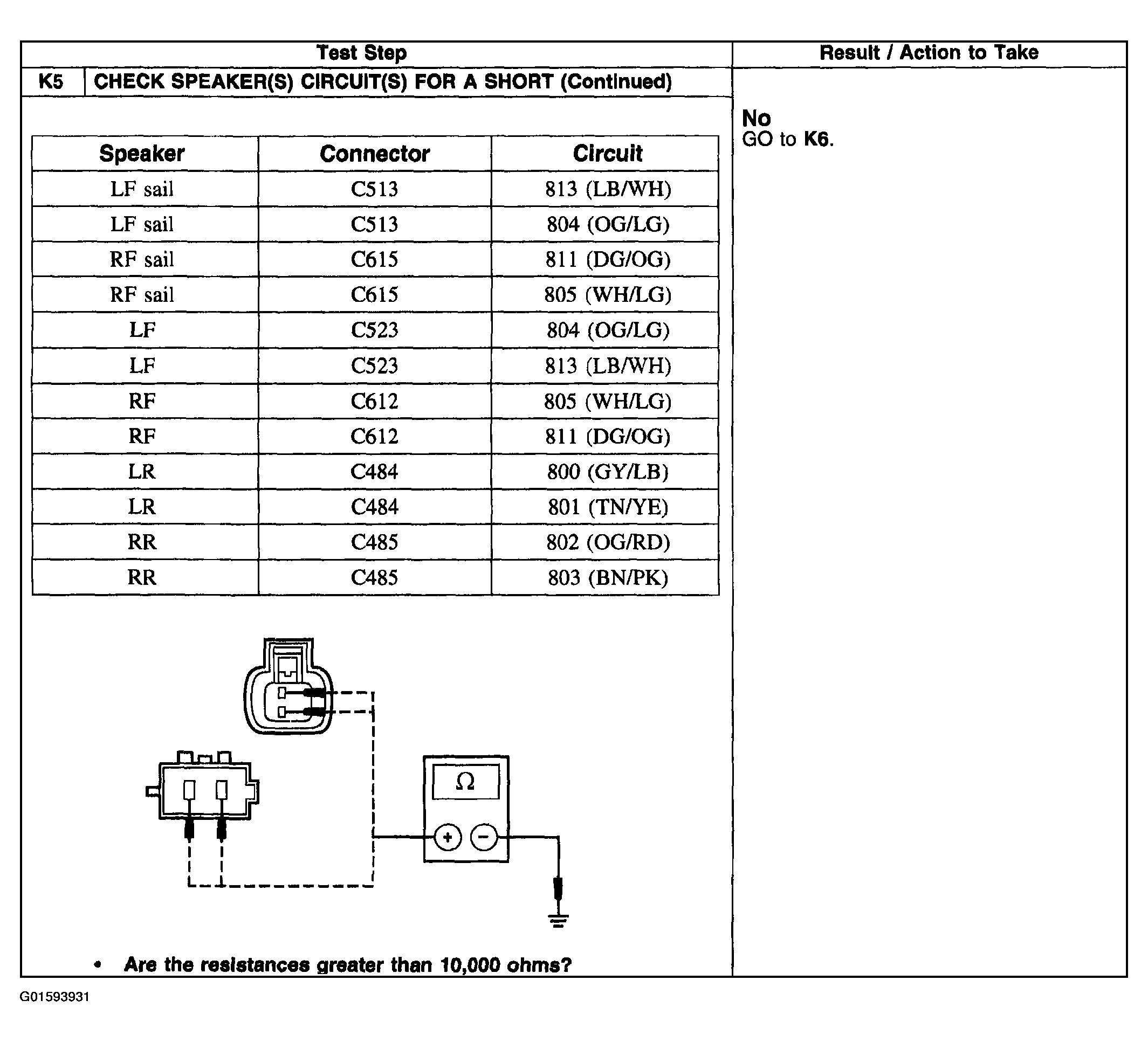

Fig 3: Pinpoint Test K: No Sound From One Or More Speakers (Not All Speakers) (Step K5 Continued)
Courtesy of FORD MOTOR CO.

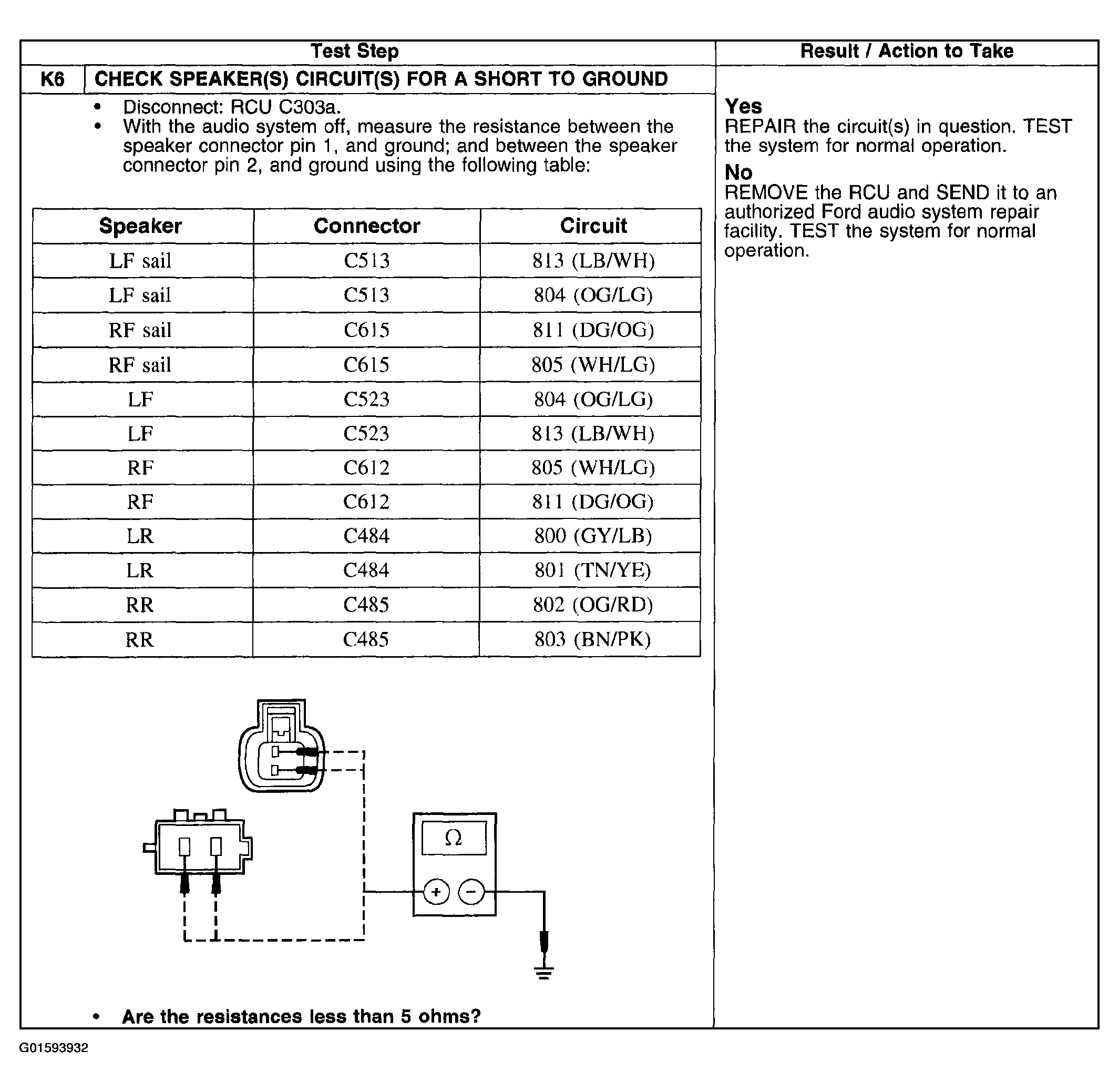

Fig 4: Pinpoint Test K: No Sound From One Or More Speakers (Not All Speakers) (Step K6)
