Pinpoint Test F: Noisy Reception

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

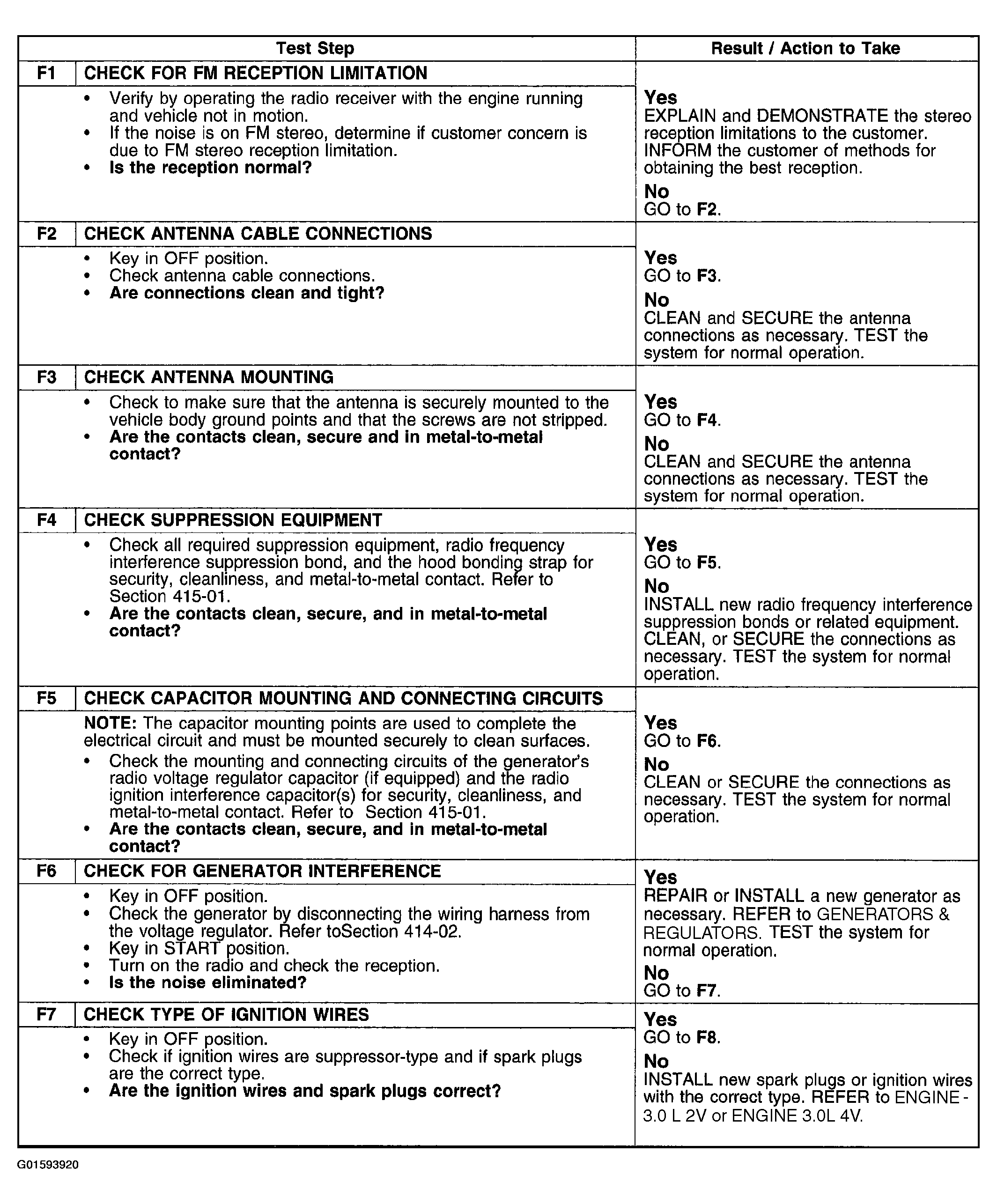

Fig 1: Pinpoint Test F: Noisy Reception (Step F1 - F7)
G01593920Courtesy of FORD MOTOR CO.

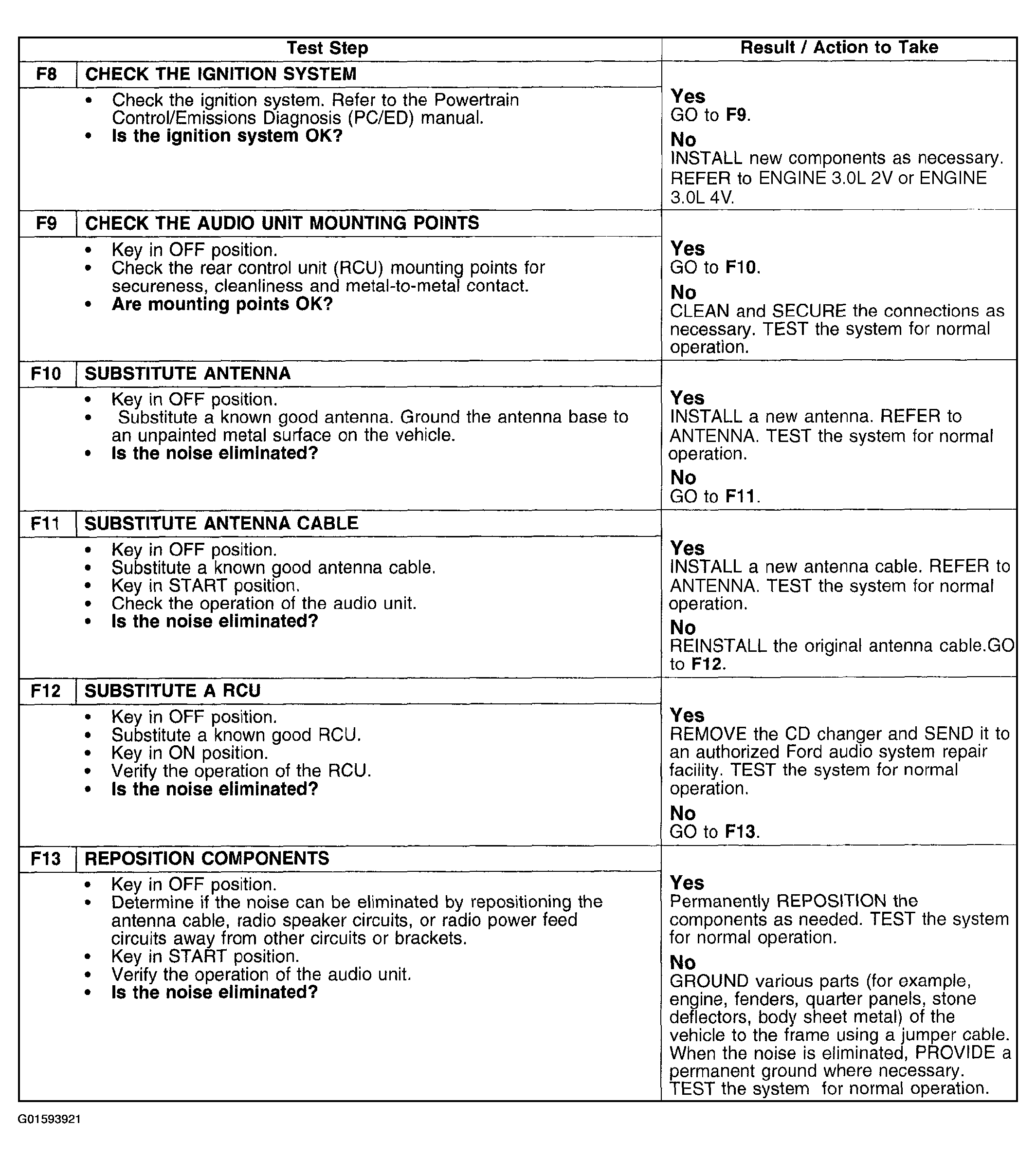

Fig 2: Pinpoint Test F: Noisy Reception (Step F8 - F13)
G01593921Courtesy of FORD MOTOR CO.
