Pinpoint Test E: The Audio Unit Does Not Display Cd Changer Information
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

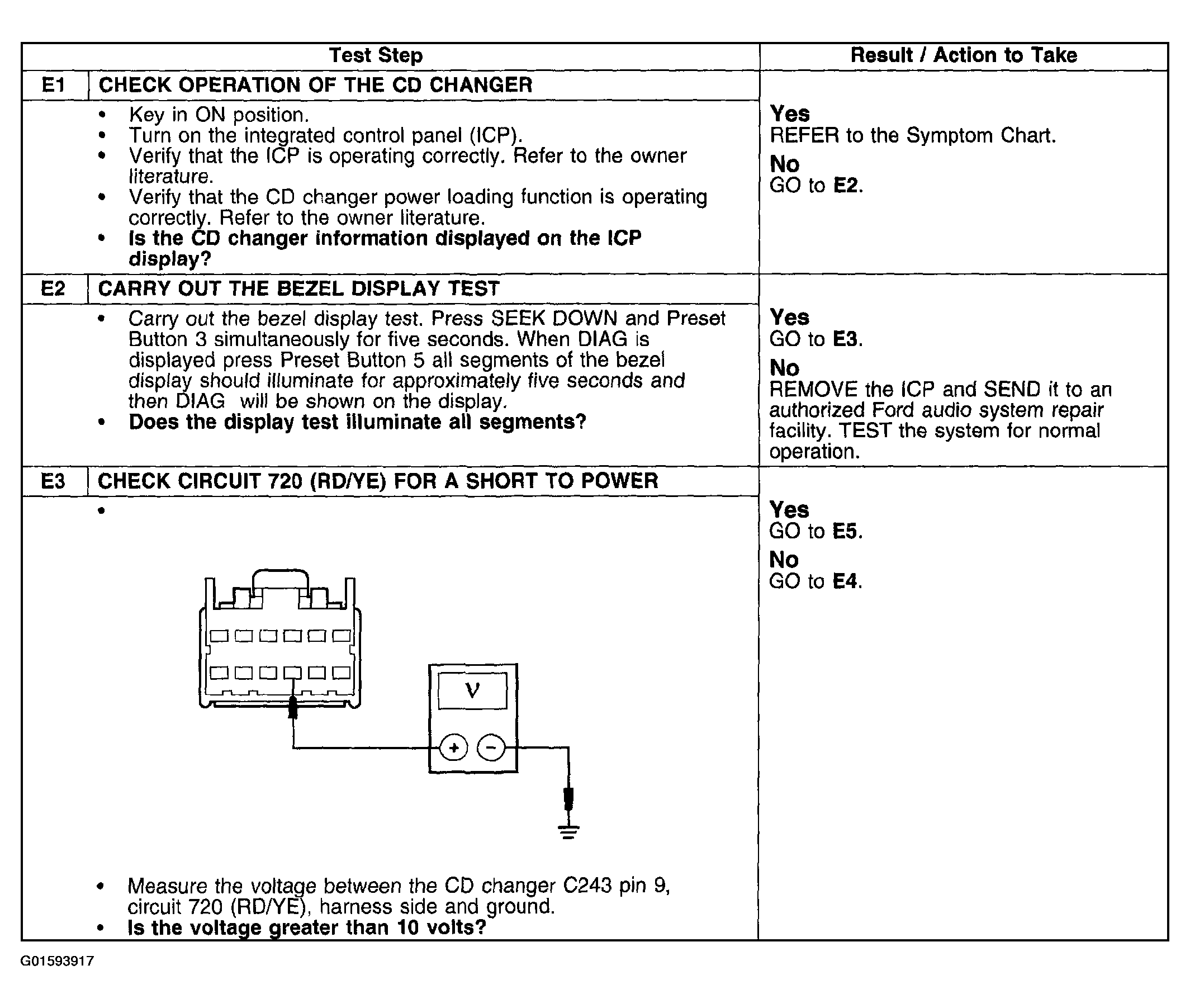

Fig 1: Pinpoint Test E: Audio Unit Does Not Display CD Changer Information (Step E1 - E3)
Courtesy of FORD MOTOR CO.

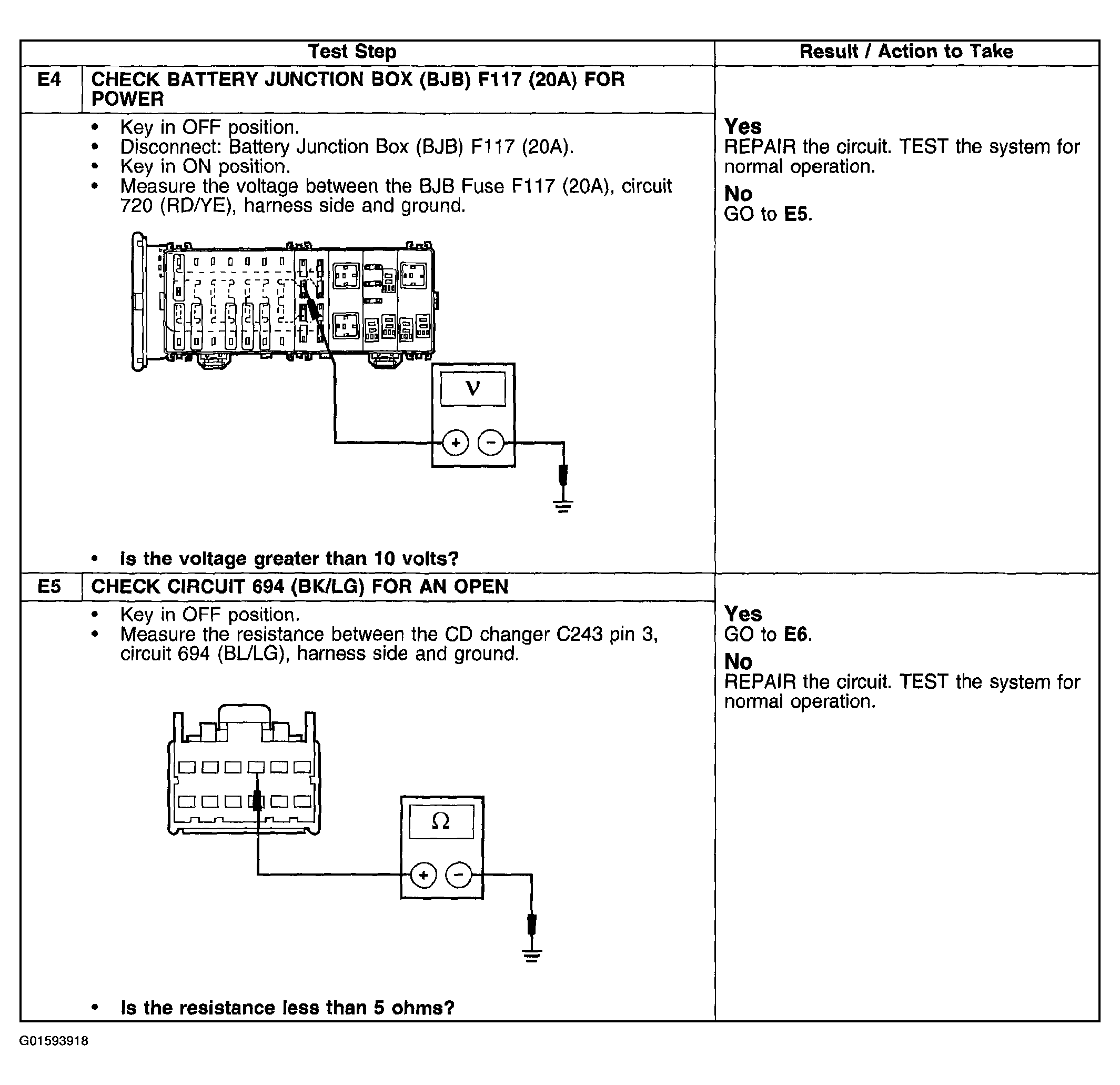

Fig 2: Pinpoint Test E: Audio Unit Does Not Display CD Changer Information (Step E4 - E5)
Courtesy of FORD MOTOR CO.

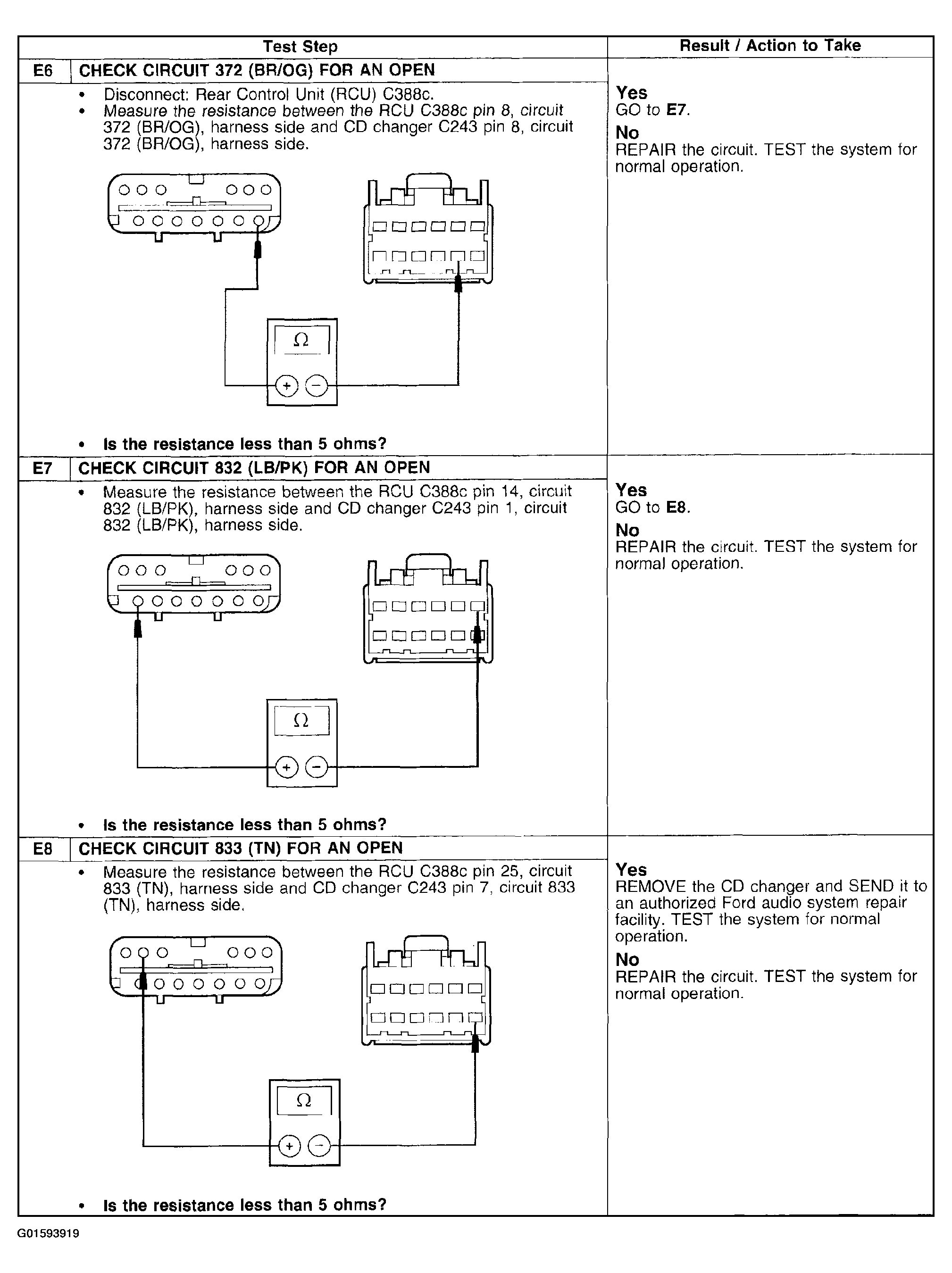

Fig 3: Pinpoint Test E: Audio Unit Does Not Display CD Changer Information (Step E6 - E8)
