Inspection and Verification: Notes
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
- Verify the customer concern by operating the electronic audio system with the engine running and the vehicle in and out of motion.

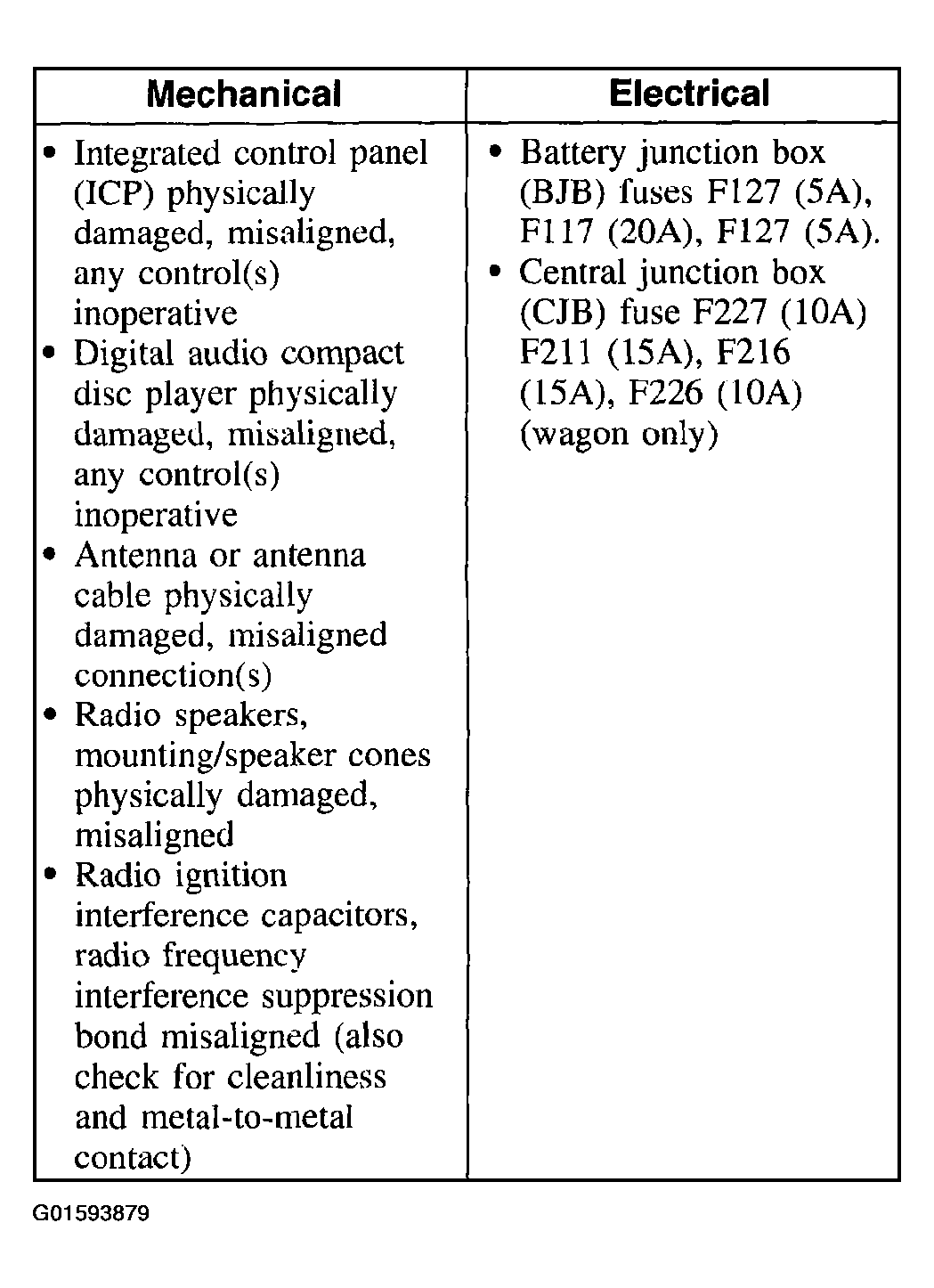

- Visually inspect for obvious signs of mechanical and electrical damage.
- If the fault is not visually evident, proceed to diagnose the integrated control panel (ICP) by entering the ICP Self-Diagnostic Mode.
