Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery cables. For additional information, refer to BATTERY DISCONNECT .
Remove the bolt and the battery hold-down bracket.

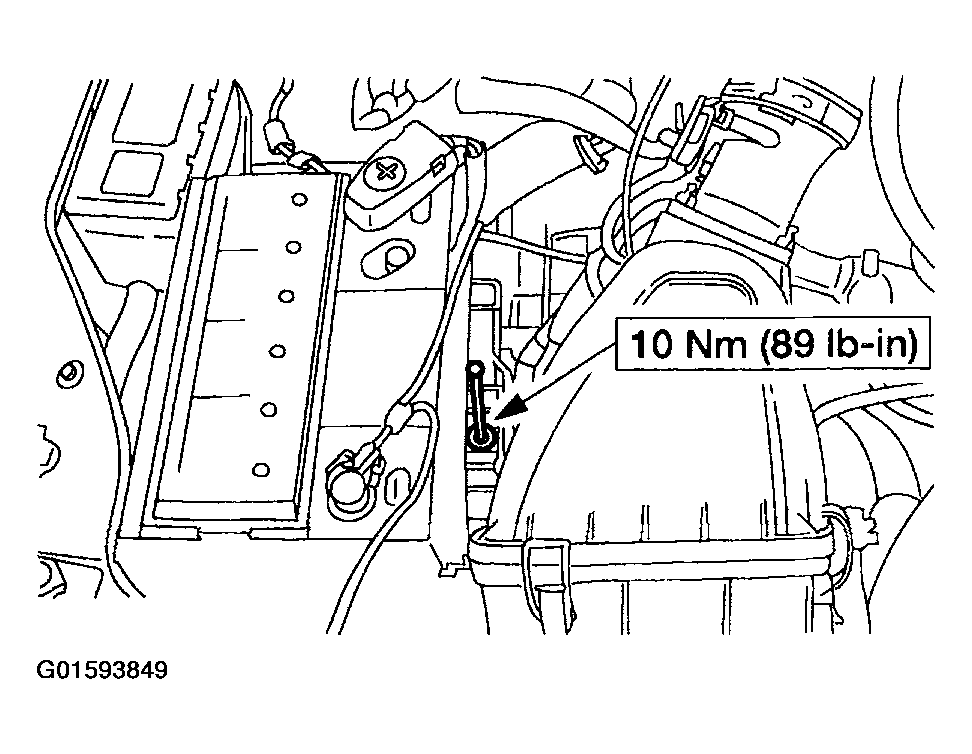

Fig 1: Removing Bolt And Battery Hold-Down Bracket
Courtesy of FORD MOTOR CO.
Remove the battery.

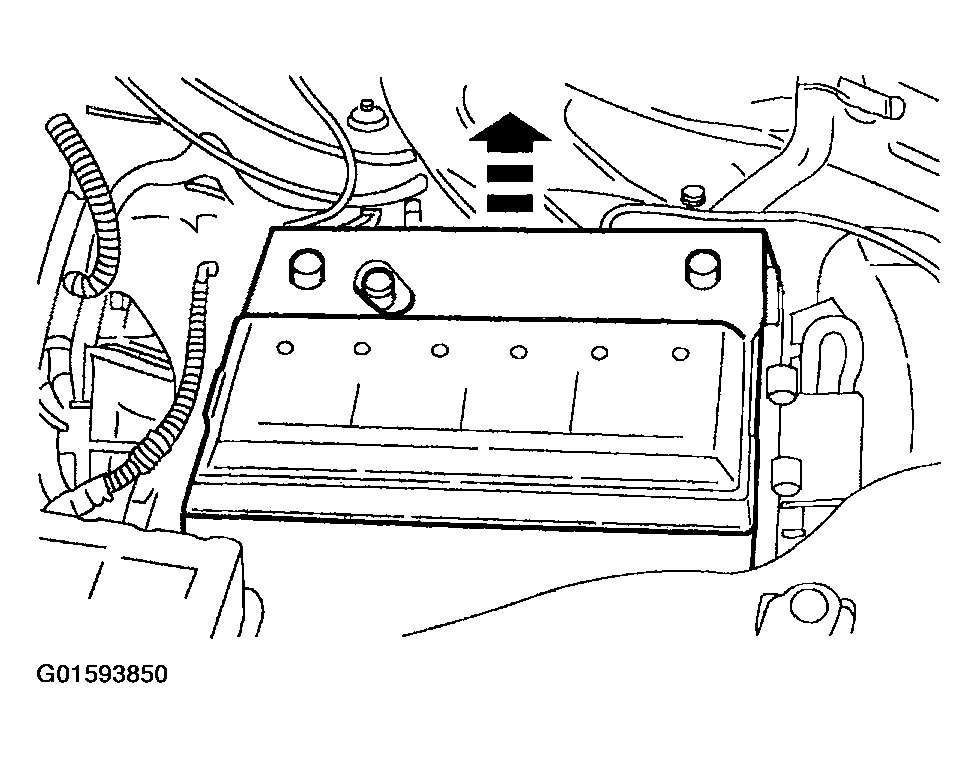

Fig 2: Removing Battery
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
