Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY .
  2. Remove the battery tray.
    1. Remove the battery tray bolts.
    2. Remove the battery tray.

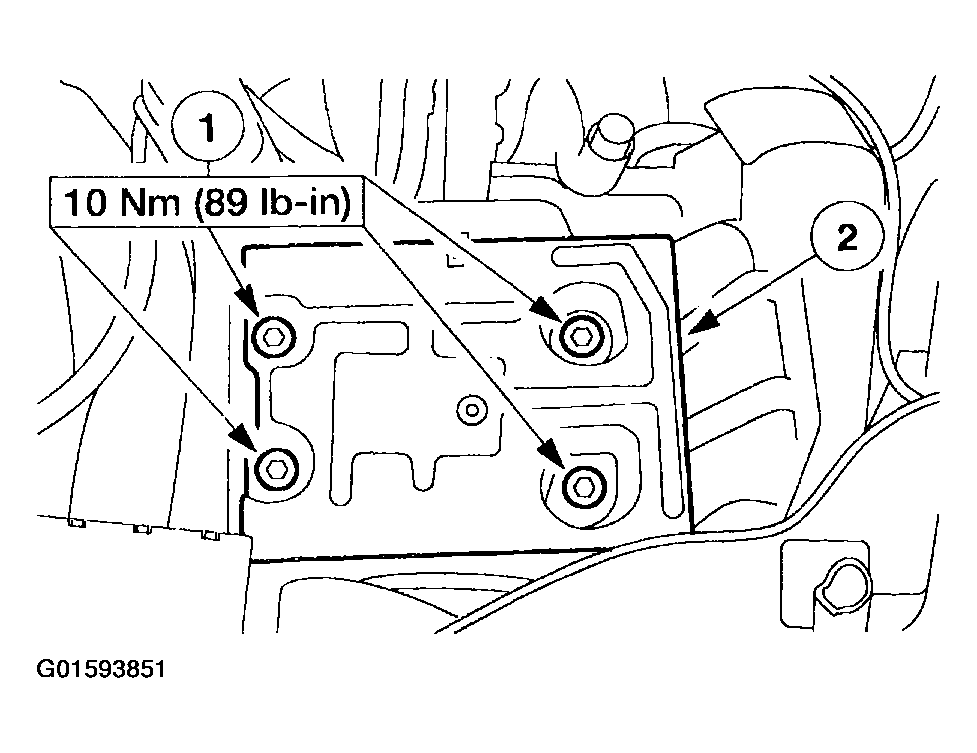

      Fig 1: Removing Battery Tray Bolts
      G01593851Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
