Pinpoint Test E: The Chime Sounds When Driver Door Is Ajar (No Key In The Ignition And Headlights Off)

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

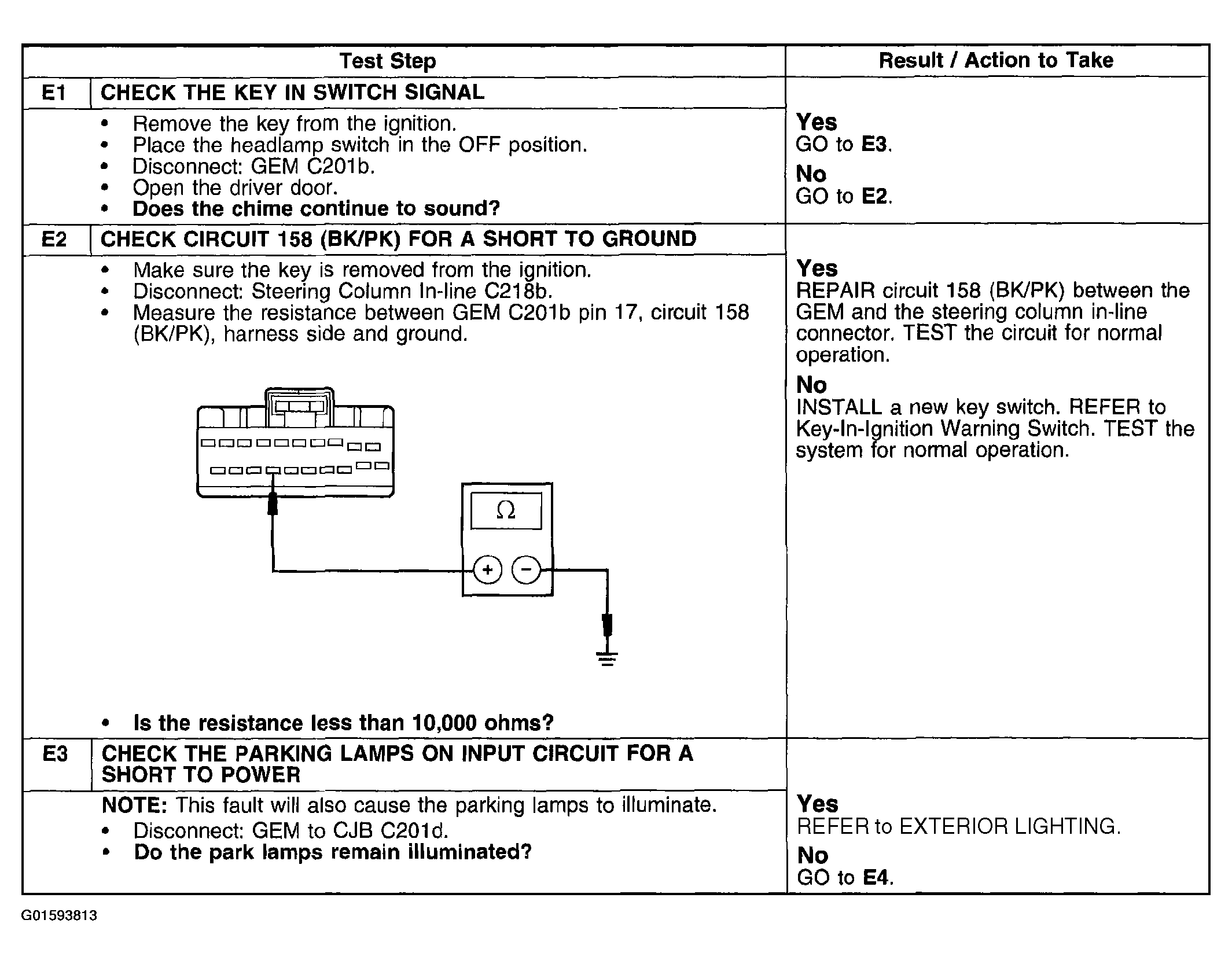

Fig 1: Pinpoint Test E: Chime Sounds When Driver Door Ajar (No Key In Ignition And Headlights Off) (Step E1-E3)
G01593813Courtesy of FORD MOTOR CO.

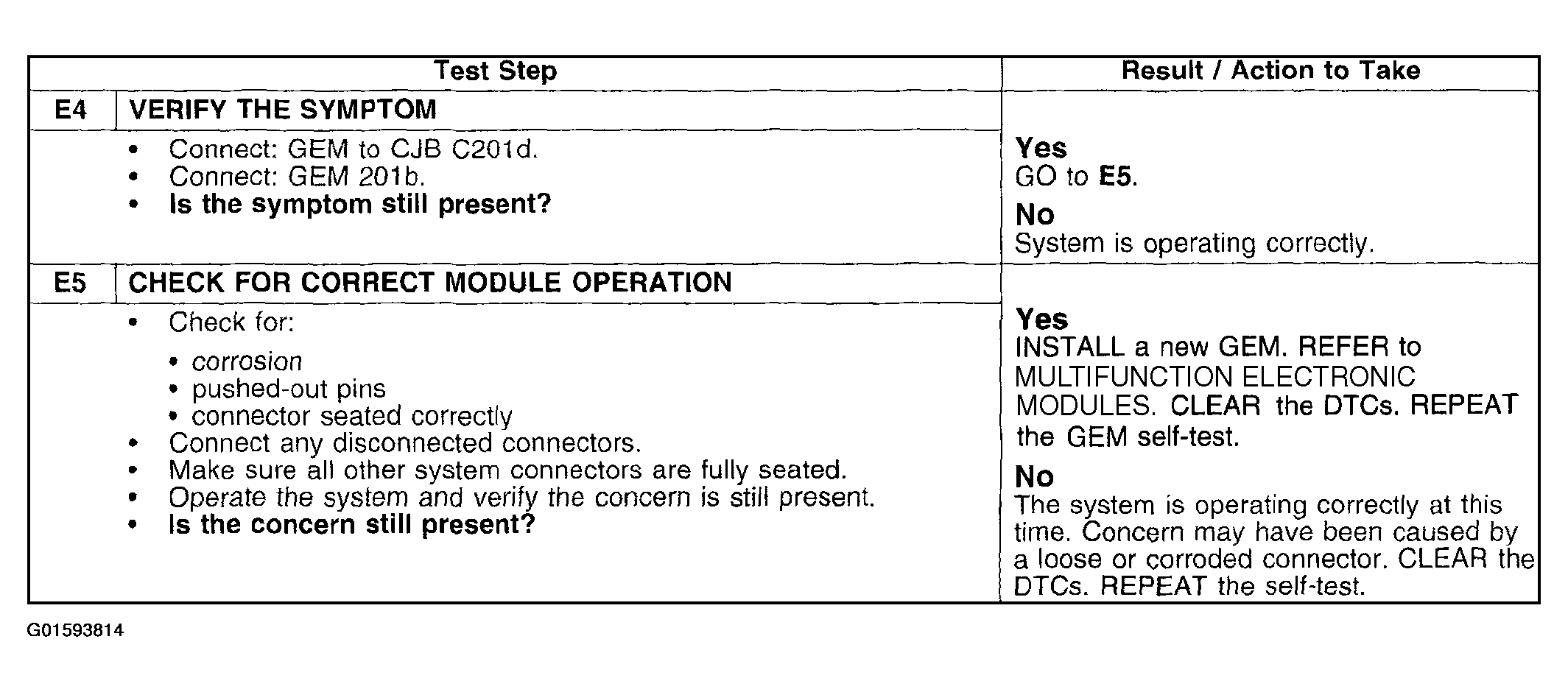

Fig 2: Pinpoint Test E: Chime Sounds When Driver Door Ajar (No Key In Ignition And Headlights Off) (Step E4-E5)
G01593814Courtesy of FORD MOTOR CO.
