Pinpoint Test C: A Chime Is Inoperative - Head/Parking Lamps On With The Door Ajar

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

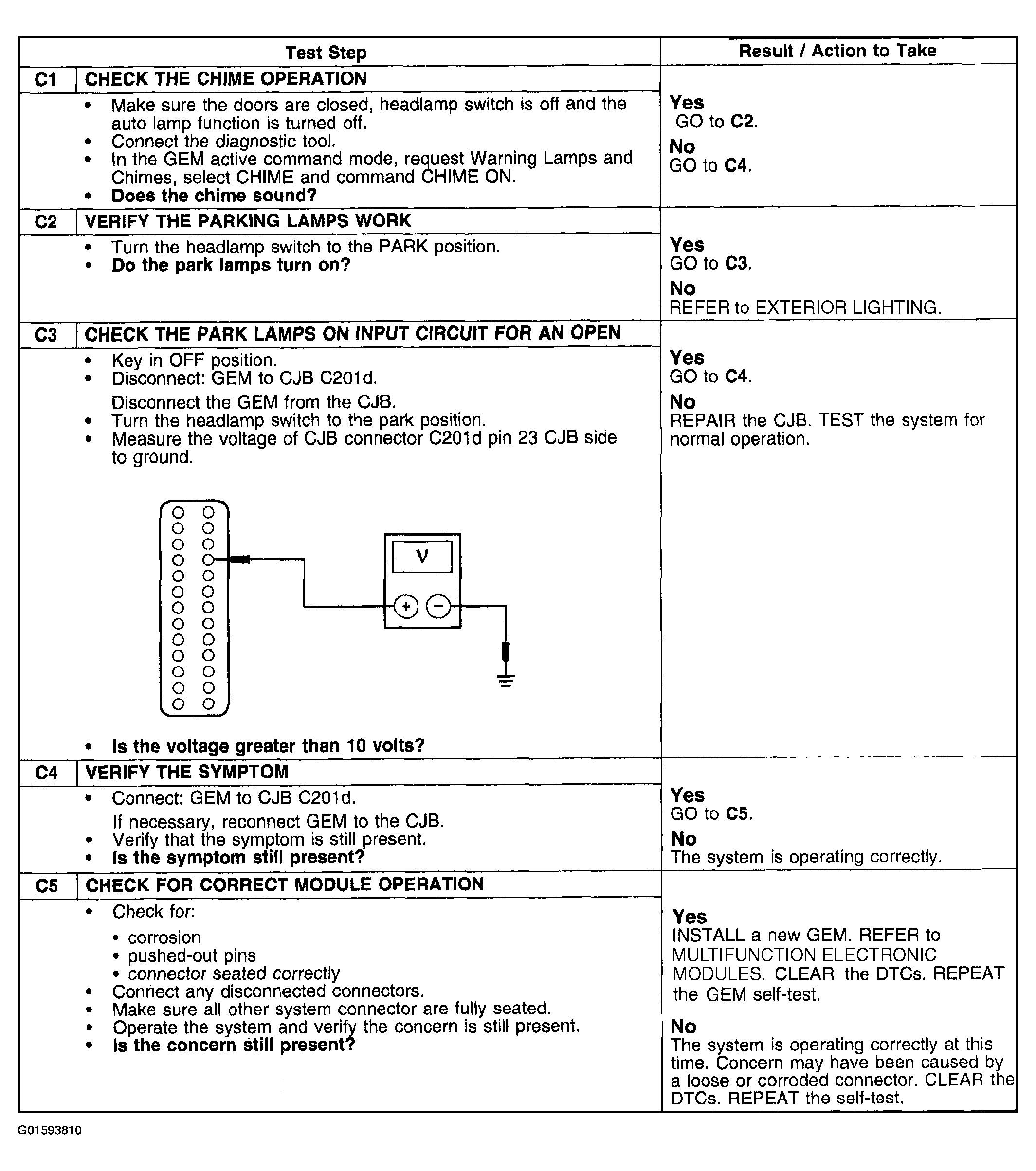

Fig 1: Pinpoint Test C: Chime Inoperative - Head/Parking Lamps On With Door Ajar (Step C1-C5)
G01593810Courtesy of FORD MOTOR CO.
