Pinpoint Test B: A Chime Is Inoperative - Key In Ignition (With Driver Door Ajar)

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

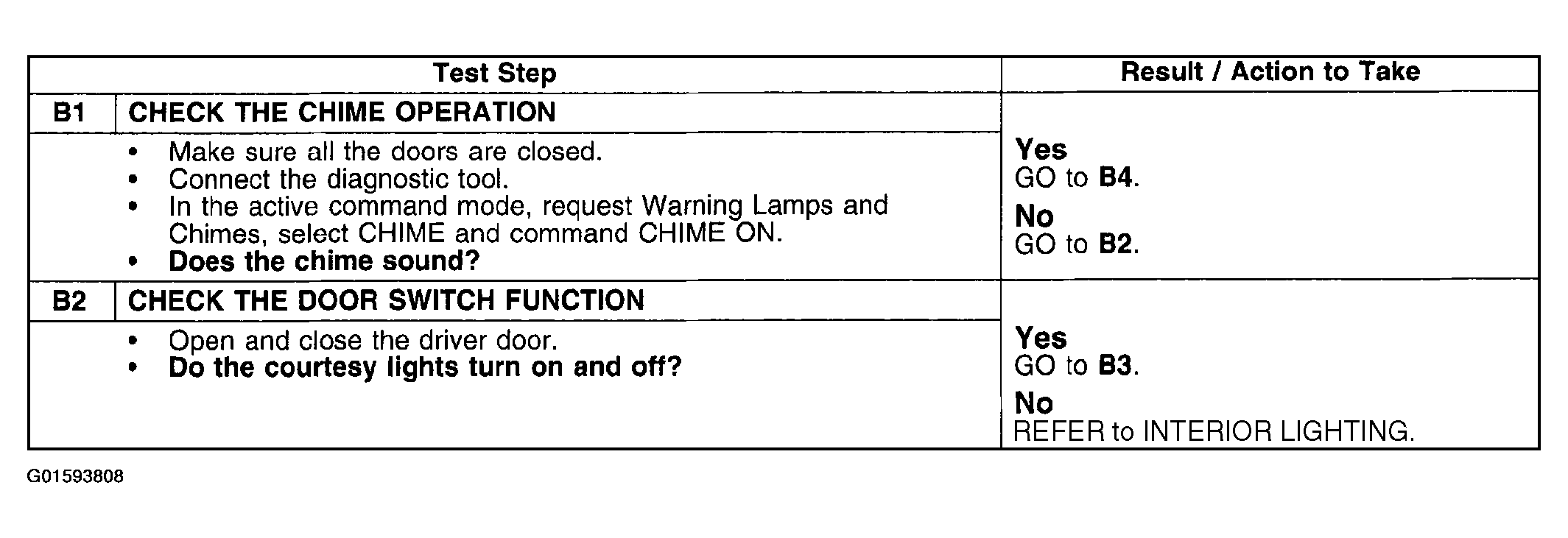

Fig 1: Pinpoint Test B: Chime Inoperative - Key In Ignition (With Driver Door Ajar) (Step B1-B2)
G01593808Courtesy of FORD MOTOR CO.

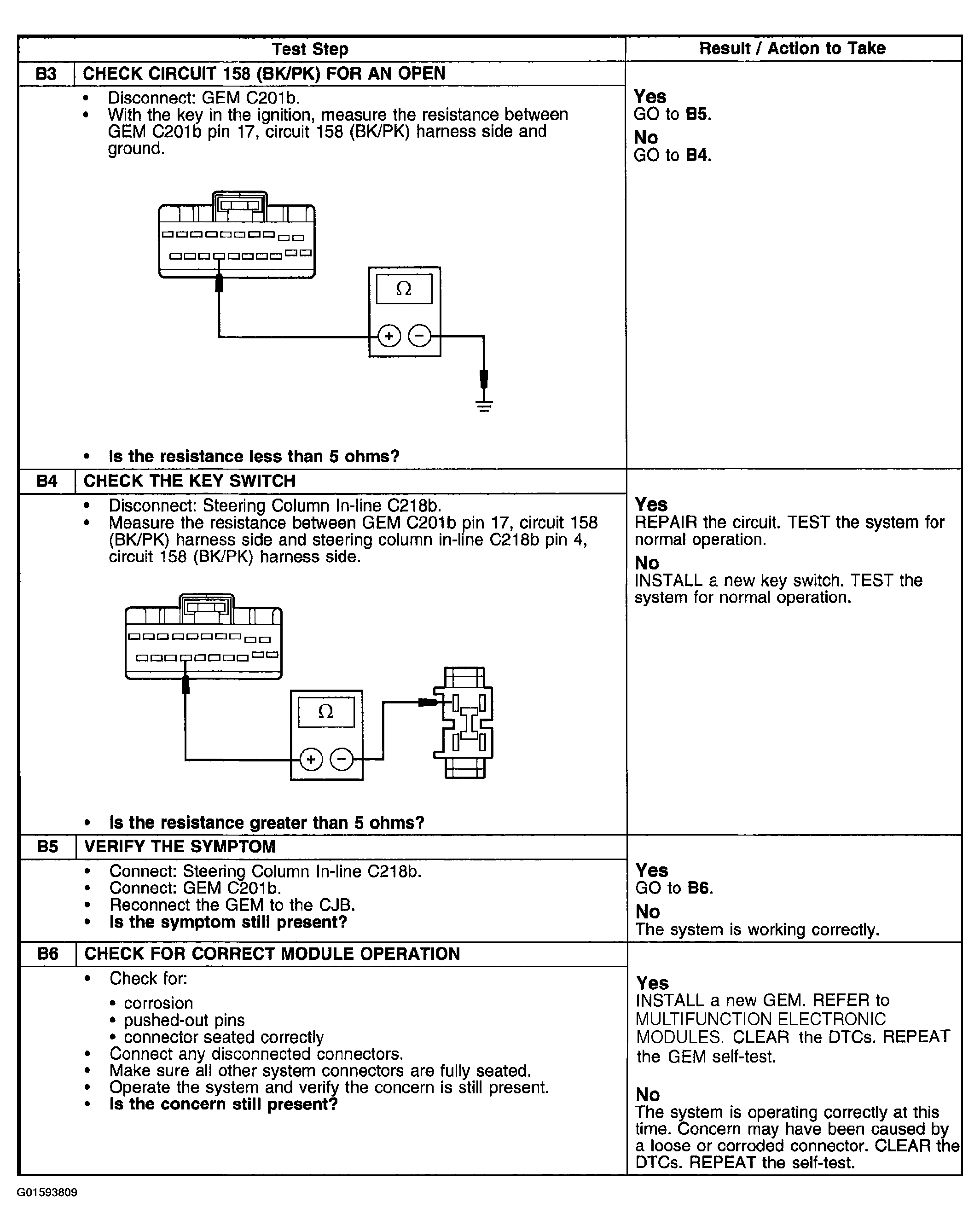

Fig 2: Pinpoint Test B: Chime Inoperative - Key In Ignition (With Driver Door Ajar) (Step B3-B6)
G01593809Courtesy of FORD MOTOR CO.
