Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the instrument cluster finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  3. Remove the shifter selector cable, if equipped with column shift. For additional information, refer to STEERING COLUMN .
  4. Remove the instrument cluster screws.
    • Disconnect the electrical connectors.

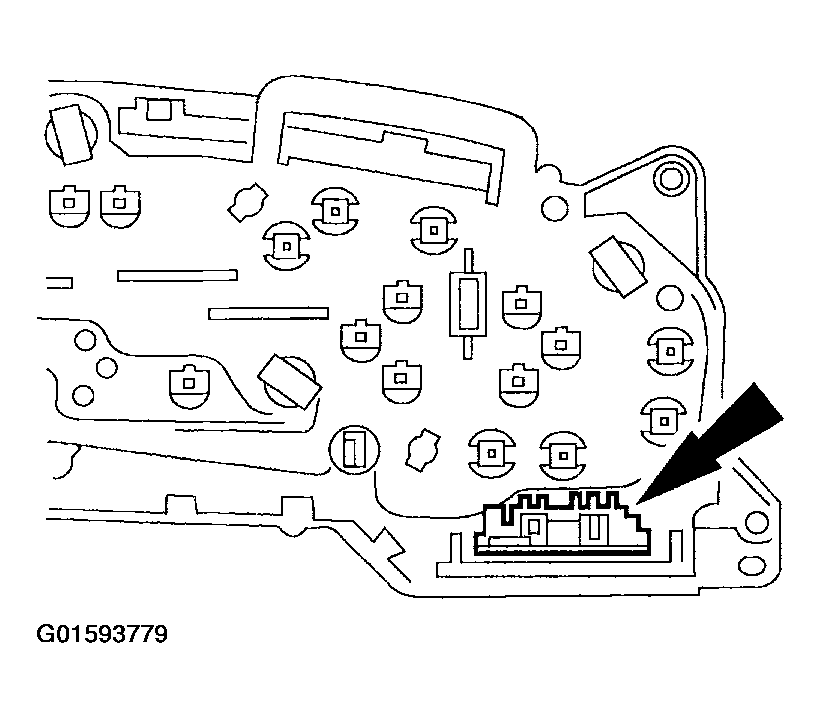

    Fig 1: Removing Instrument Cluster Screws
    G01593779Courtesy of FORD MOTOR CO.
  5. Remove the instrument cluster.
  6. To install, reverse the removal procedure.
