Pinpoint Test W: The Check Fuel Cap Indicator Is Inoperative
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

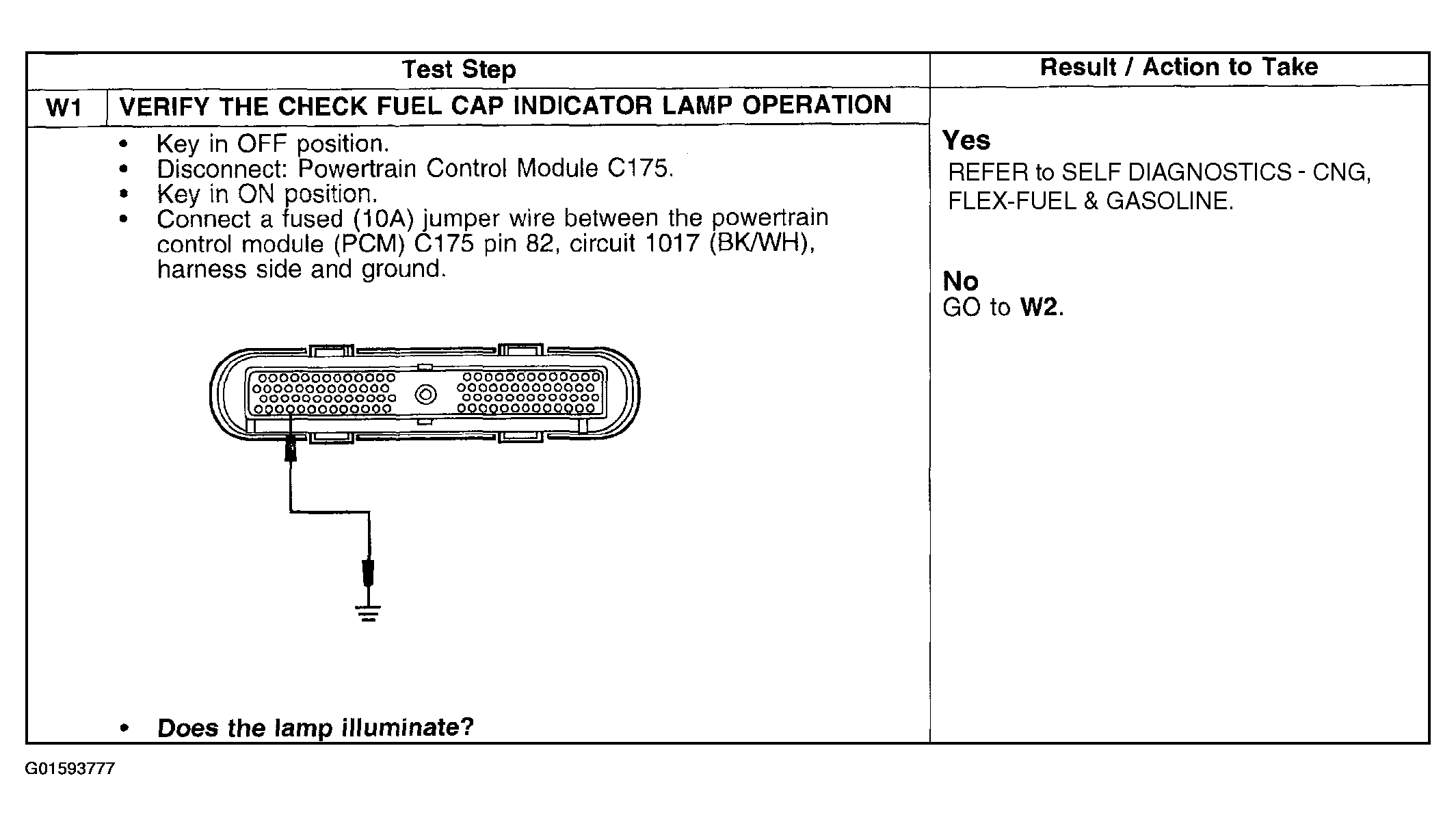

Fig 1: Pinpoint Test W: Check Fuel Cap Indicator Inoperative (Step W1)
Courtesy of FORD MOTOR CO.

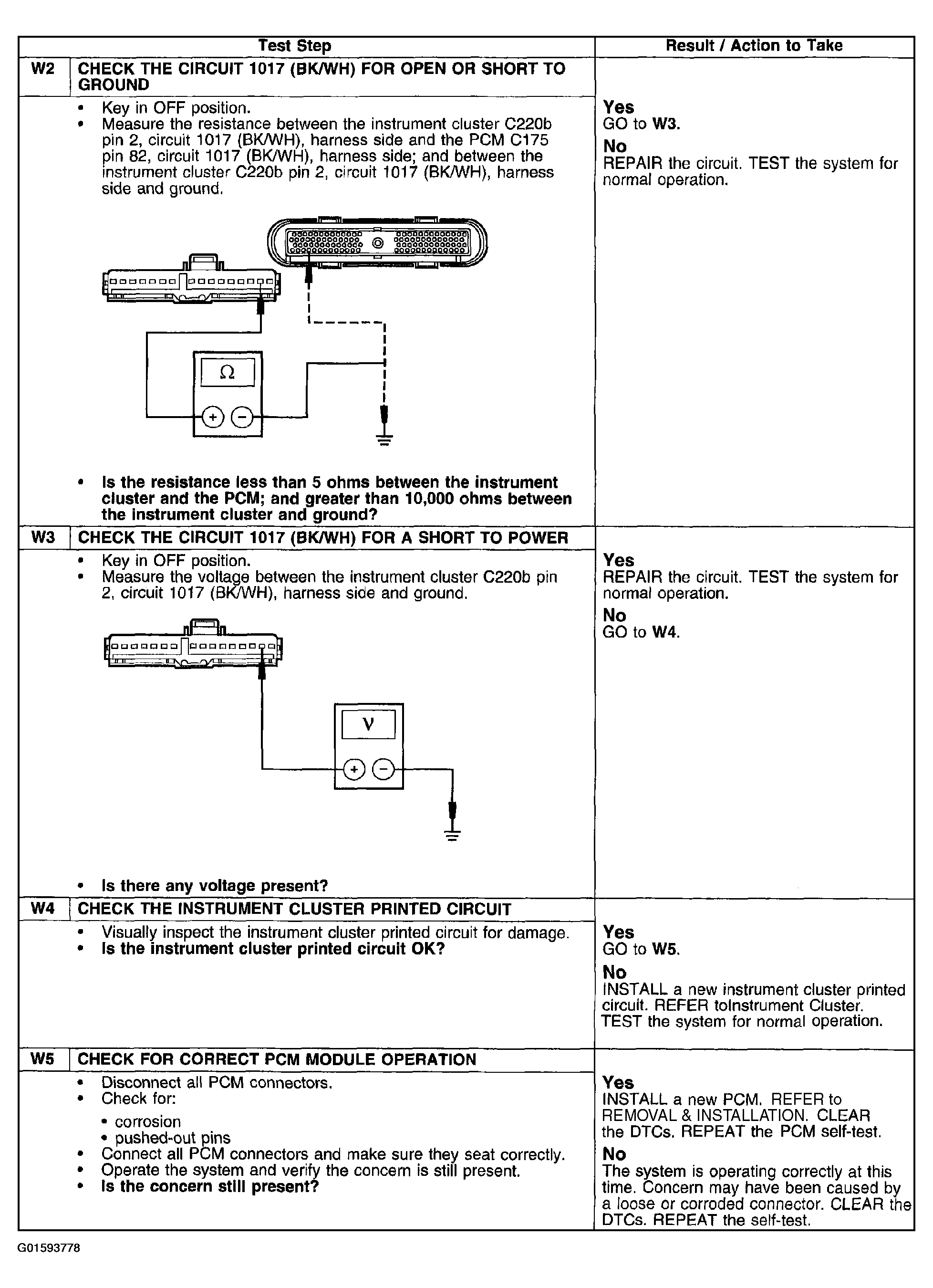

Fig 2: Pinpoint Test W: Check Fuel Cap Indicator Inoperative (Step W2-W5)
