Pinpoint Test V: The Cruise Indicator Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

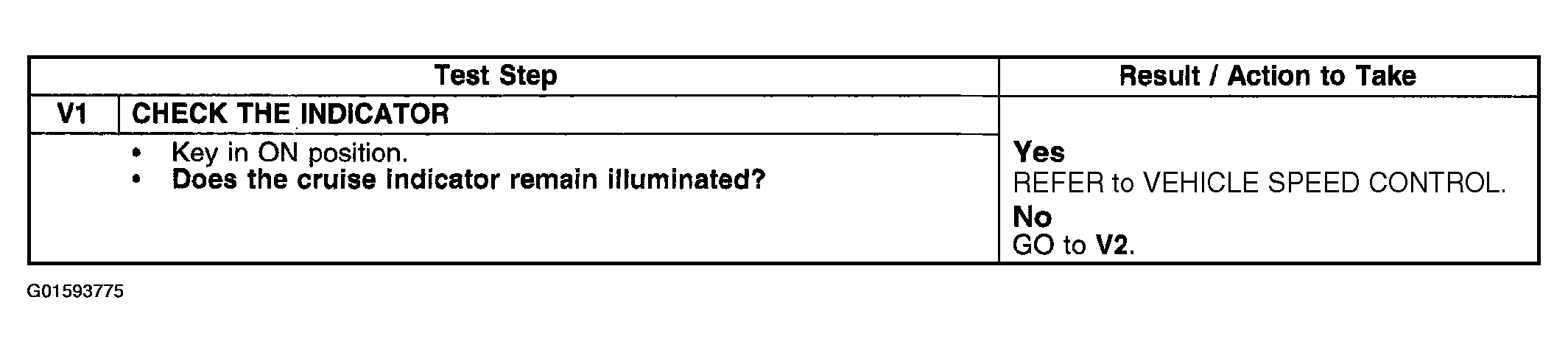

Fig 1: Pinpoint Test V: Cruise Indicator Inoperative (Step V1)
G01593775Courtesy of FORD MOTOR CO.

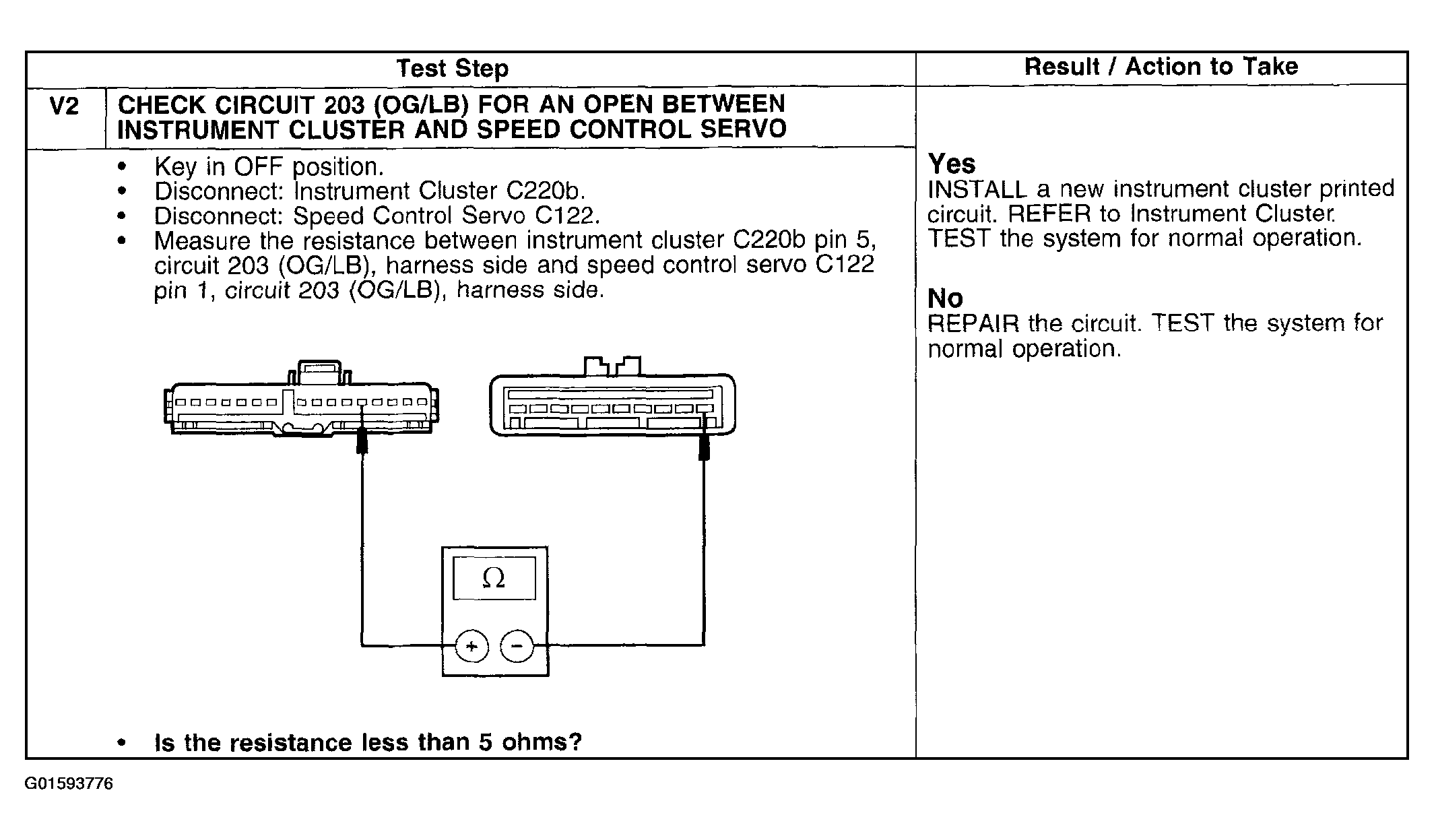

Fig 2: Pinpoint Test V: Cruise Indicator Inoperative (Step V2)
G01593776Courtesy of FORD MOTOR CO.
