Pinpoint Test U: The Low Coolant Indicator Is Inoperative - If Equipped
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

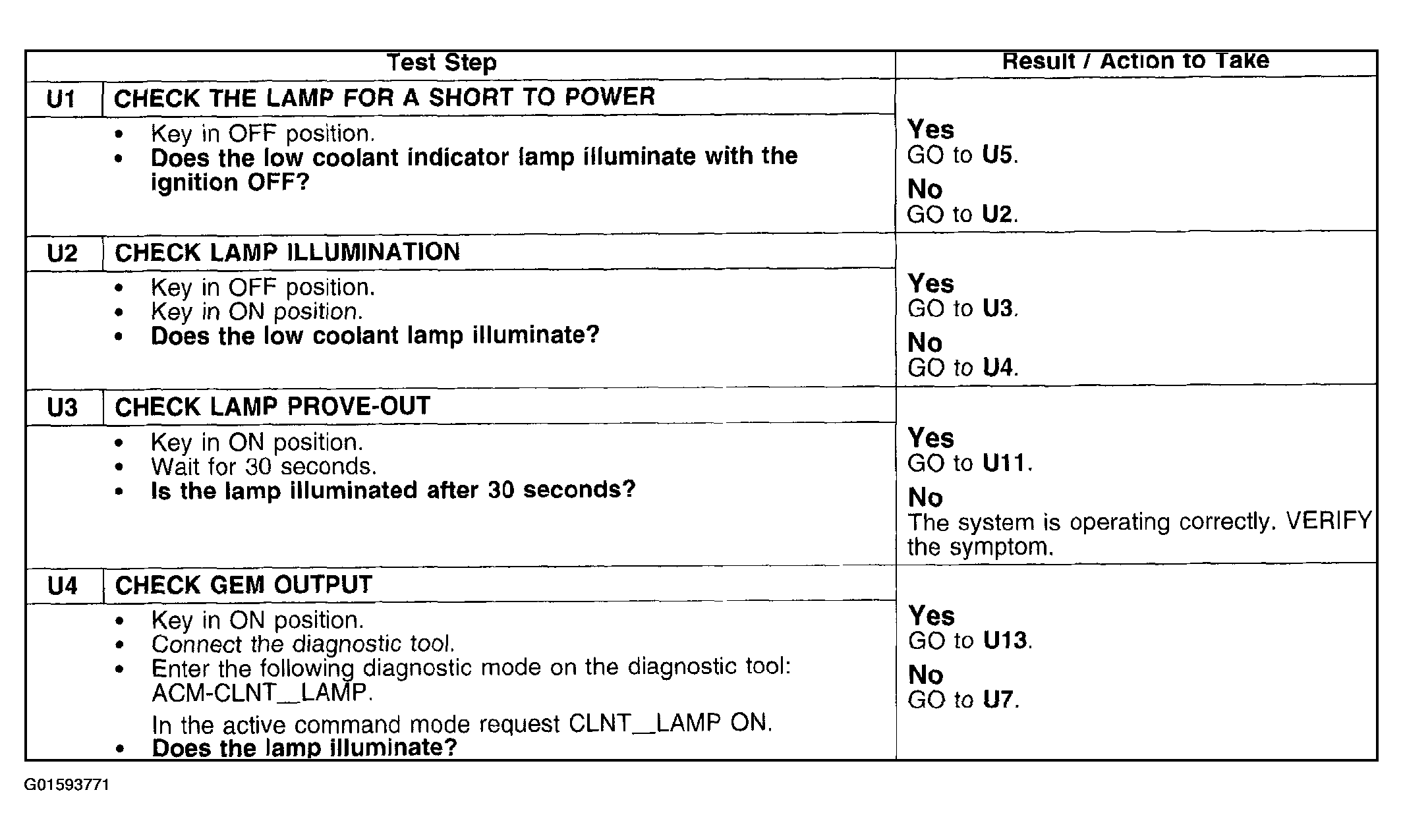

Fig 1: Pinpoint Test U: Low Coolant Indicator Inoperative - If Equipped (Step U1-U4)
Courtesy of FORD MOTOR CO.

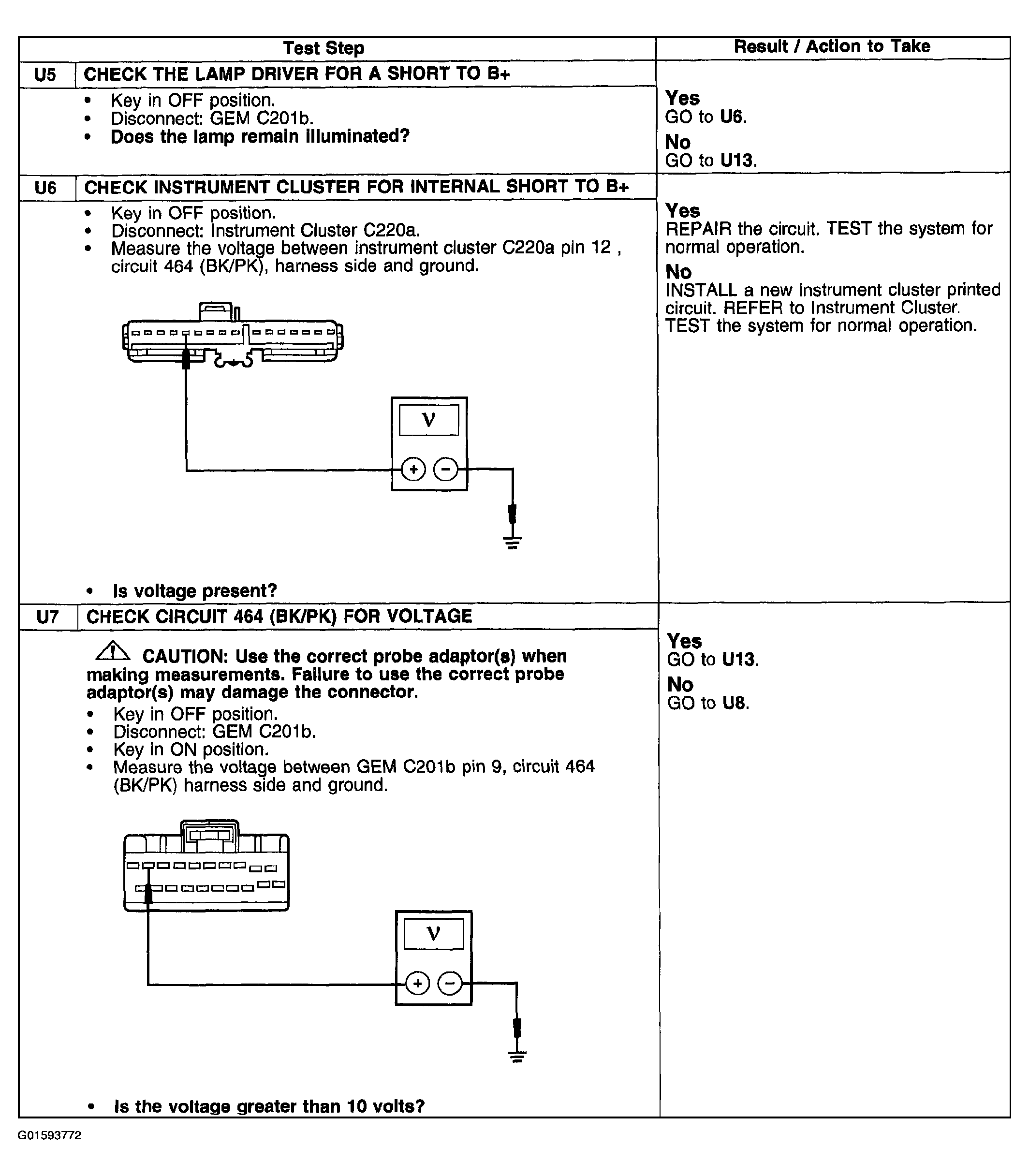

Fig 2: Pinpoint Test U: Low Coolant Indicator Inoperative - If Equipped (Step U5-U7)
Courtesy of FORD MOTOR CO.

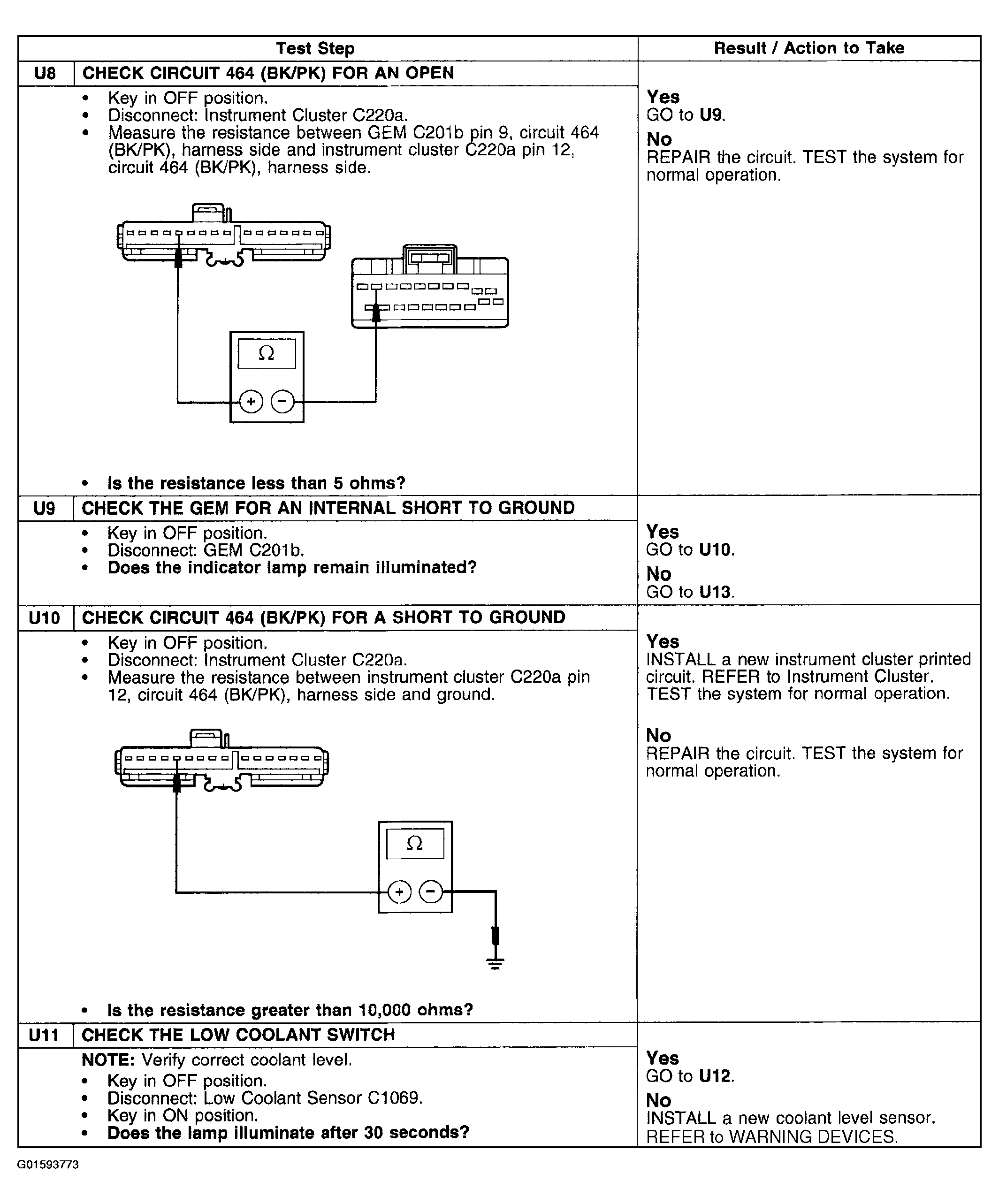

Fig 3: Pinpoint Test U: Low Coolant Indicator Inoperative - If Equipped (Step U8-U11)
Courtesy of FORD MOTOR CO.

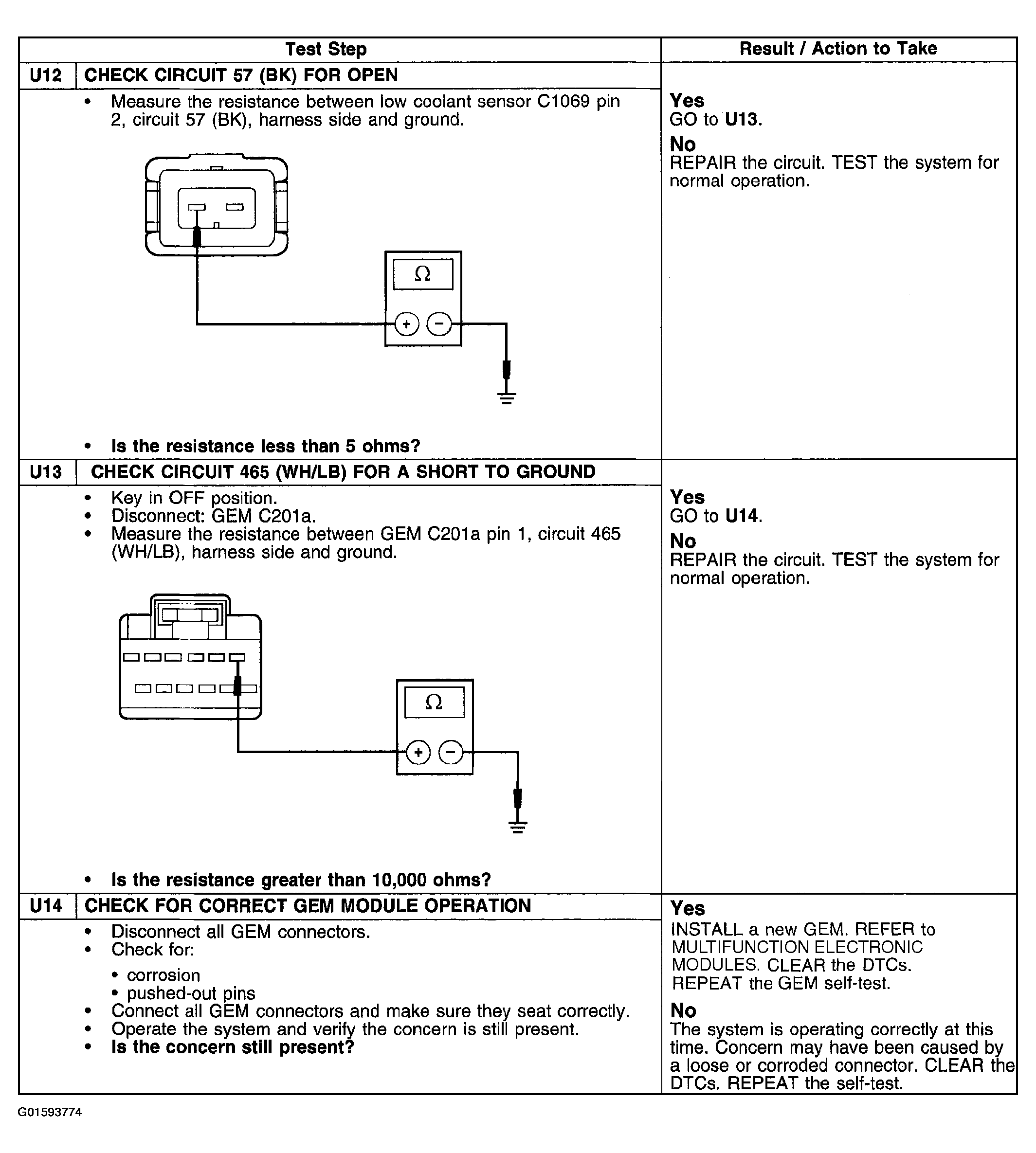

Fig 4: Pinpoint Test U: Low Coolant Indicator Inoperative - If Equipped (Step U12-U14)
