Pinpoint Test T: The Abs Indicator Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pinpoint Test T: ABS Indicator Inoperative (Step T1)
G01593769Courtesy of FORD MOTOR CO.

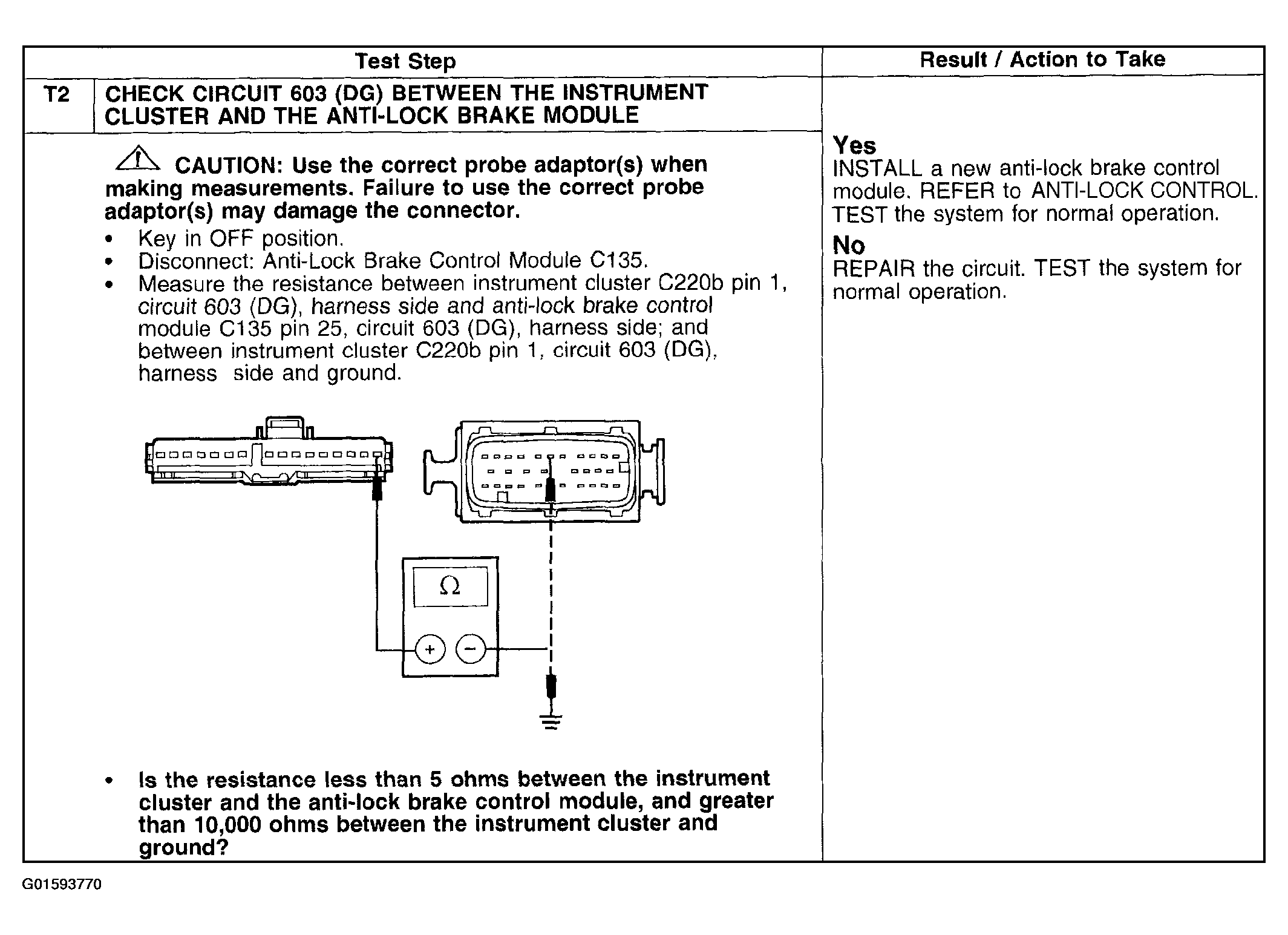

Fig 2: Pinpoint Test T: ABS Indicator Inoperative (Step T2)
G01593770Courtesy of FORD MOTOR CO.
